Frontier LP7700 - Adjusting the Zigzagging of the Paper Magazine Deck

Magazine section
1/8
2. Replacement and adjustment of parts
22100
22100
Adjusting the zigzagging of the paper magazine deck
!
!!
! Procedure
IMPORTANT
• The zigzagging of the magazine deck must be adjusted for each paper magazine A, A2, B, and C.
• When adjusting the zigzagging of the magazine deck, make a test print using the maximum size of paper which has
been used.
1. Make the test prints via Test Print 1/2 for Arm Unit 1 Zigzagging Correction.
☞36060

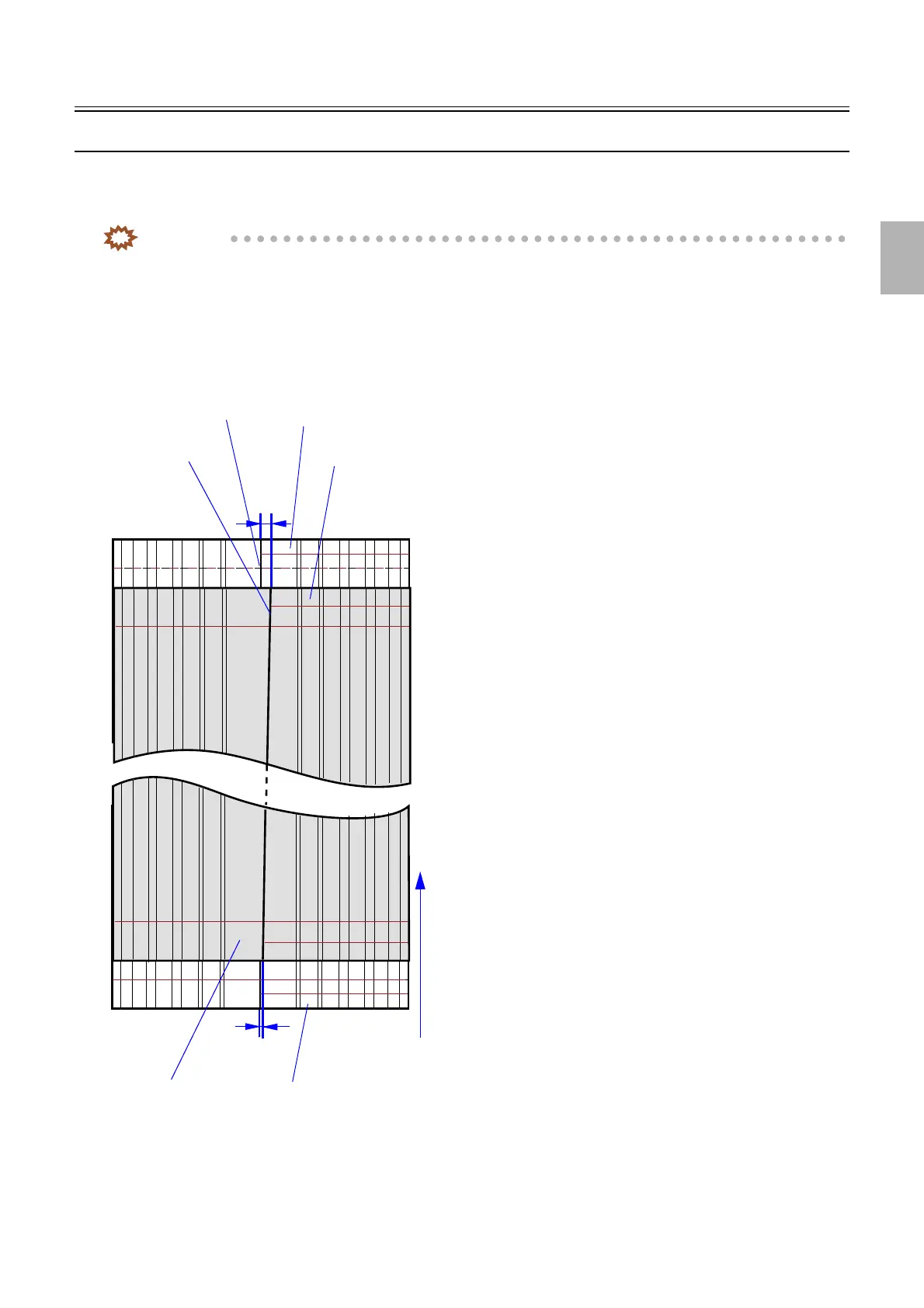

2. Take the second test print as a standard. Confirm the difference of lines A and lines C of the first and
second prints.
A
A
C
C
Paper advance direction
Second test print
First test print
A
C
First test print
Second test print
Center line on the second
print
Center line on the
first print
G072383
