Frontier LP7700 - Cleaning Method of the Drum of Module [J

Tablet replenishment section
1/3
2. Replacement and adjustment of parts
27690
27690
Cleaning method of the drum of module [J]
!
!!
! Procedure
1. Remove the module.
☞27620

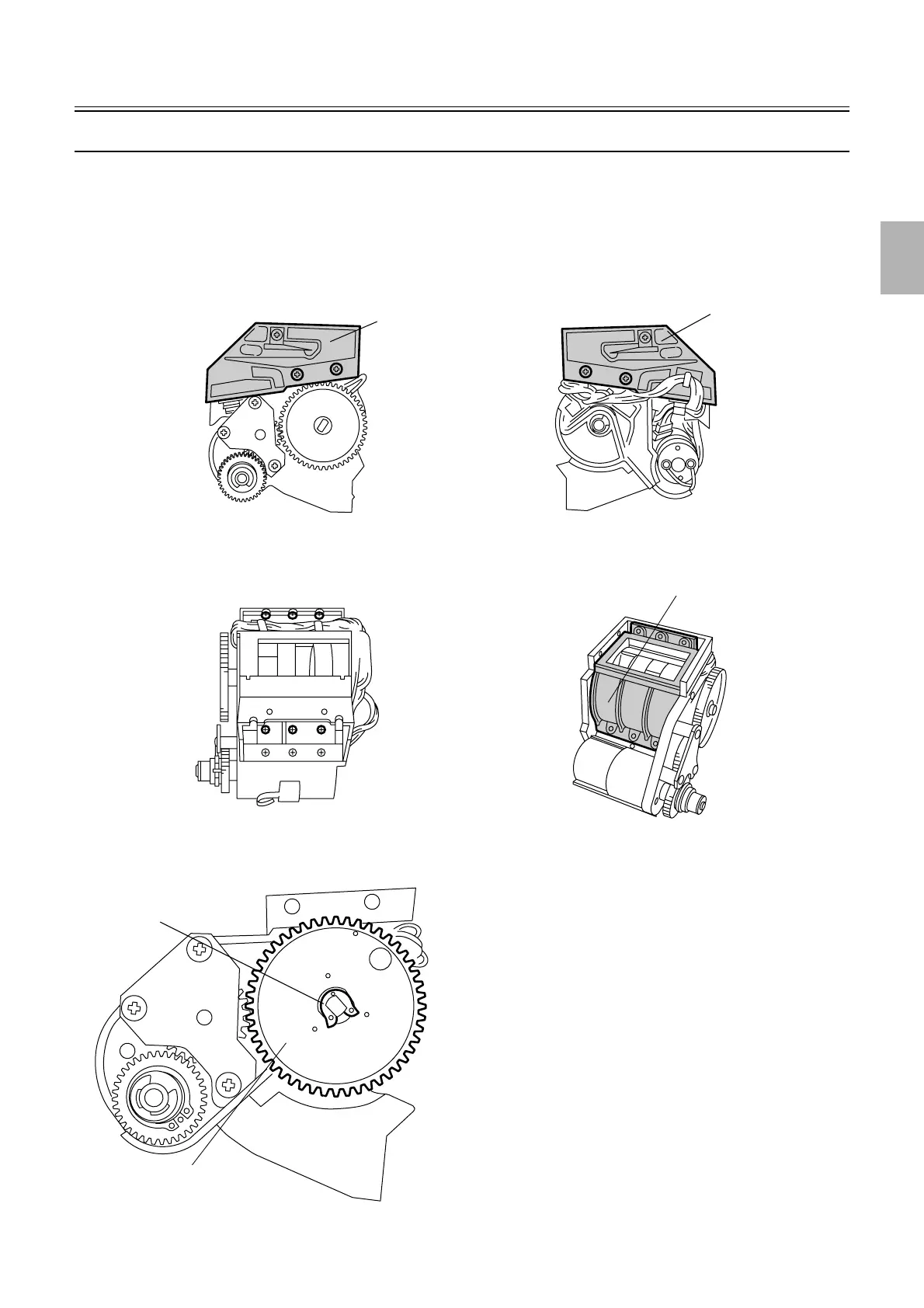

2. Remove the cartridge guide.
3. Remove the drum case. (six screws)
4. Remove the gear (64T). (one mount ring)
Cartridge guide
Cartridge guide
G050745
Drum case
G050746
Mount ring
Gear (64T)
G050747
