Frontier LP7700 - Paper Magazine Mounts A, A2, B, and C (Positions of Electrical Parts)

Position of electrical parts (printer section)
1/2
6. Electrical parts
63051
63051

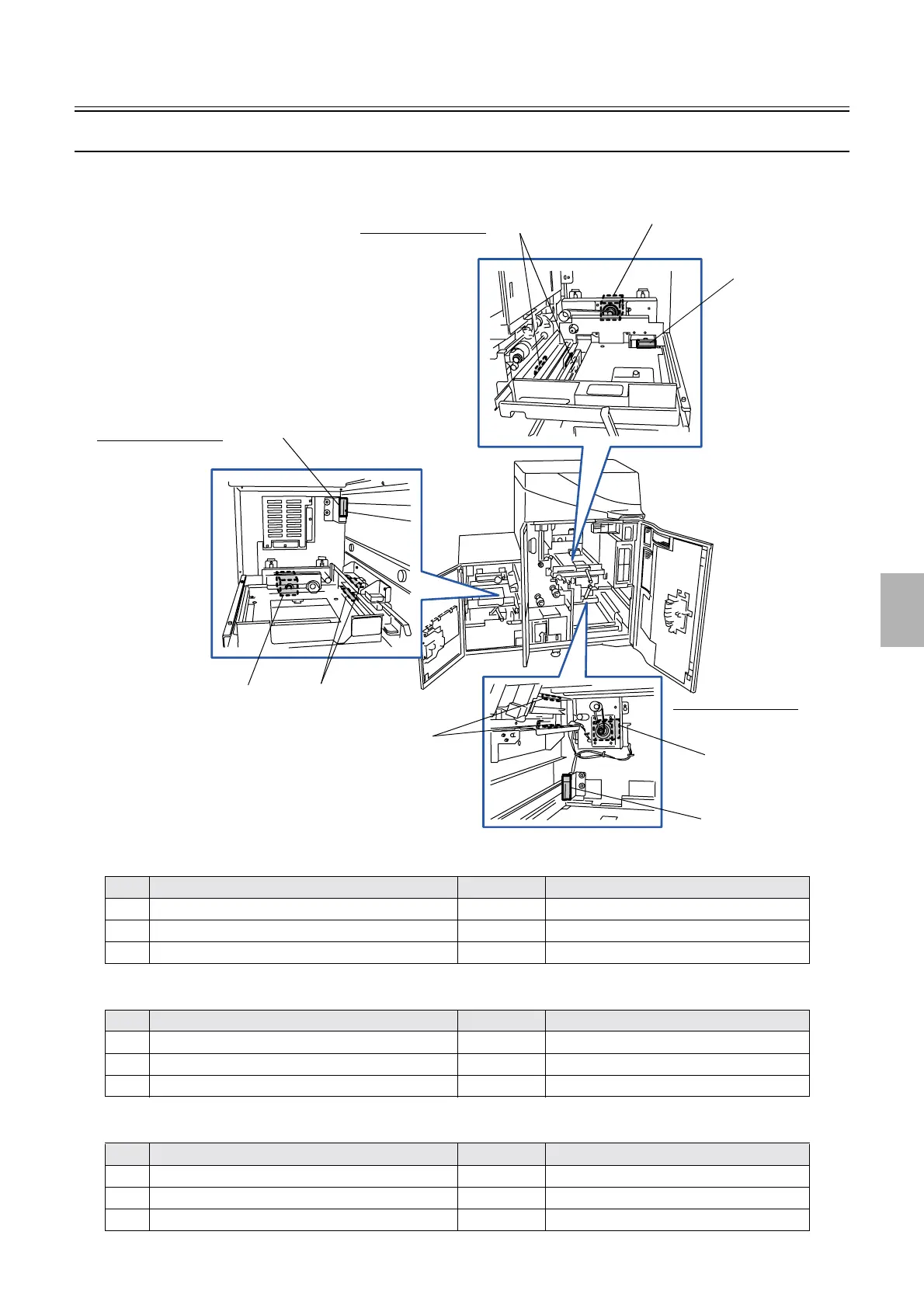

Paper magazine mounts A, A2, B, and C (positions of electrical parts)
!
!!
! Layout diagram (triple magazine unit)
Paper magazine mount B
Paper magazine mount C
Paper magazine mount A
No. Name Symbol Remarks
1 Paper Magazine Motor B PM1
2 Paper magazine code sensor B SE1
3 Paper End Sensor B SE4
No. Name Symbol Remarks
4 Paper Magazine Motor C PM2
5 Paper magazine code sensor C SE2
6 Paper End Sensor C SE5
No. Name Symbol Remarks
7 Paper Magazine Motor A PM3
8 Paper magazine code sensor A SE3
9 Paper End Sensor A SE6
1
2
4
5
7
8
9
3
6
Paper magazine mount A
Paper magazine mount B
Paper magazine mount C
G068427
