Magazine section
1/3
2. Replacement and adjustment of parts
22000
22000
Magazine section

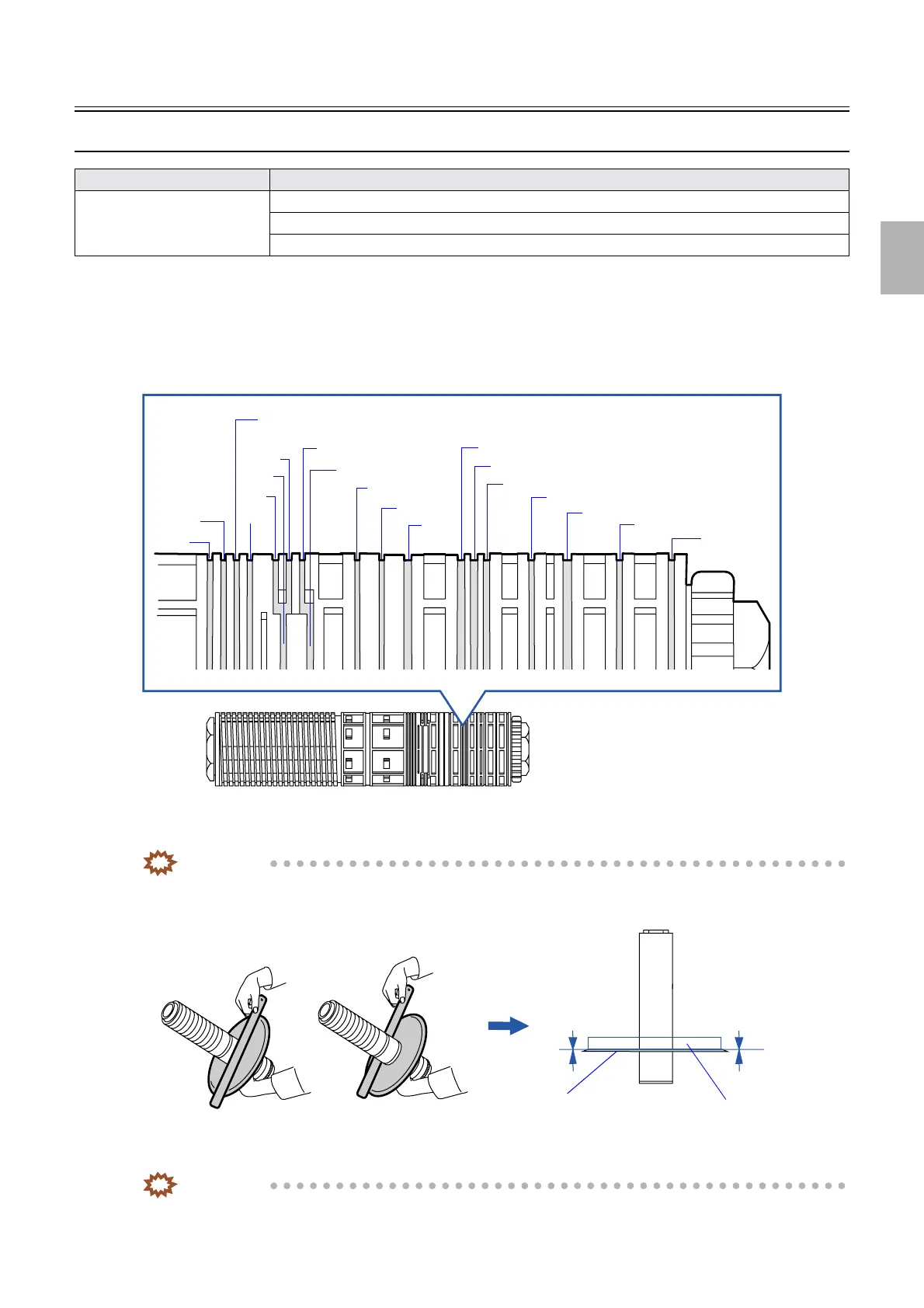

Checking the paper magazine
!
!!
! Procedure
1. Check that the position of the magazine reel plate corresponds to the paper width which is in use.
2. Put a scale in the magazine to check whether deformation of the reel plate is within 0.3 mm.
IMPORTANT
• When the deflection of paper magazine reel plate is 0.3 mm or more, check the condition of the reel plate and
nut plate. See Step 7.
3. Place the paper magazine on the level floor.
IMPORTANT
• Place the paper magazine on the level floor to check the magazine reel plate correctly because the paper
magazine may deforms.
Items to confirm
Paper magazine Check that paper roll is straight.
Check that paper guides are attached securely.
Check that the reel plate is closed securely.
Dark room type magazine
305
279
254
240
216
210
203
178
165
152
130
127
120
The third from the left is unused.
117
114
102
89
82.5
G072384
0.3 mm
Reel plate
Ruler
G072381
