Frontier LP7700 - Paper Loading Operation (the Paper Advance Length Is between 113.6 MM and 165.5 MM)

Paper advance operation
1/4
5. Operation sequence
55110
55110
Paper loading operation (the paper advance length is between 113.6 mm
and 165.5 mm)
• This section explains how the paper is advanced to the exposure advance unit by arm unit 1 since the paper is loaded.
• The advance operation (paper loading operation) varies depending on the paper advance length.
!
!!
! When the paper advance length is between 113.6 mm and 165.5 mm
IMPORTANT
• Step 1 to Step 13 is common regardless of the paper advance length.
1. Paper loading starts.
Paper magazines A, B and C
Goes to Step 8.
Paper magazine A2
Goes to Step 2.
Reference
• When the paper advance length is 113.5 mm
or less
☞55100 • When the paper advance length is 165.6 mm
or more
☞55120
• When the paper advance length is between
113.6 mm and 165.5 mm
☞55110

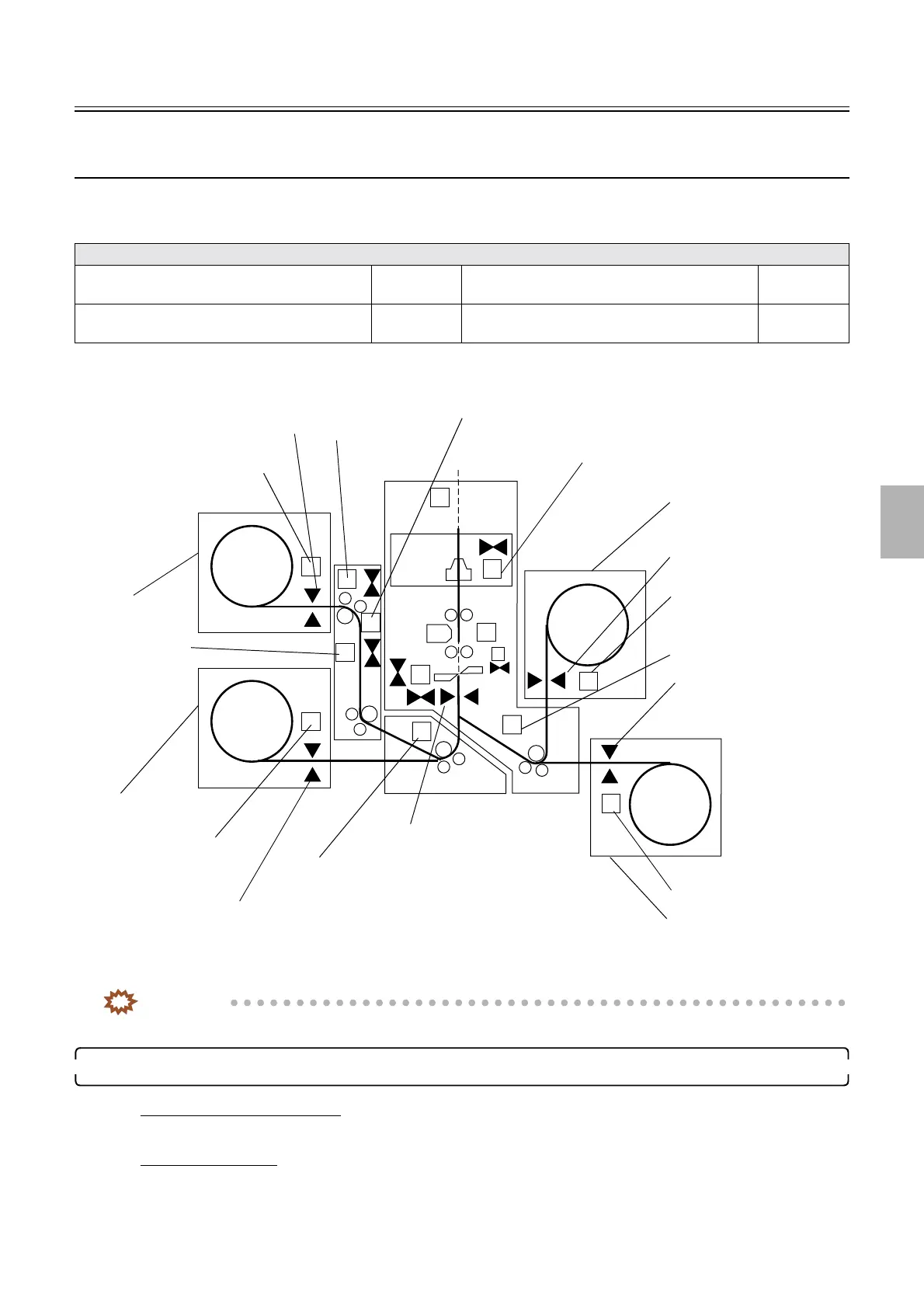

Note: The thick solid line indicates the paper.
Paper supply motor B/C
Paper end sensor C
Paper magazine C
Paper end sensor A
Paper magazine A
Paper end sensor B
Paper magazine motor B
Paper magazine motor C
Paper supply motor A
Paper magazine motor A
Paper magazine B
Paper loading sensor
Paper magazine B
Paper advance motor 1
Paper magazine A2
Paper magazine motor A2
Paper end sensor A2
Paper supply motor A2
Pressure release motor
A2
Width change motor
A2
G068488
