Position of electrical parts (printer section)
1/2
6. Electrical parts
63080
63080

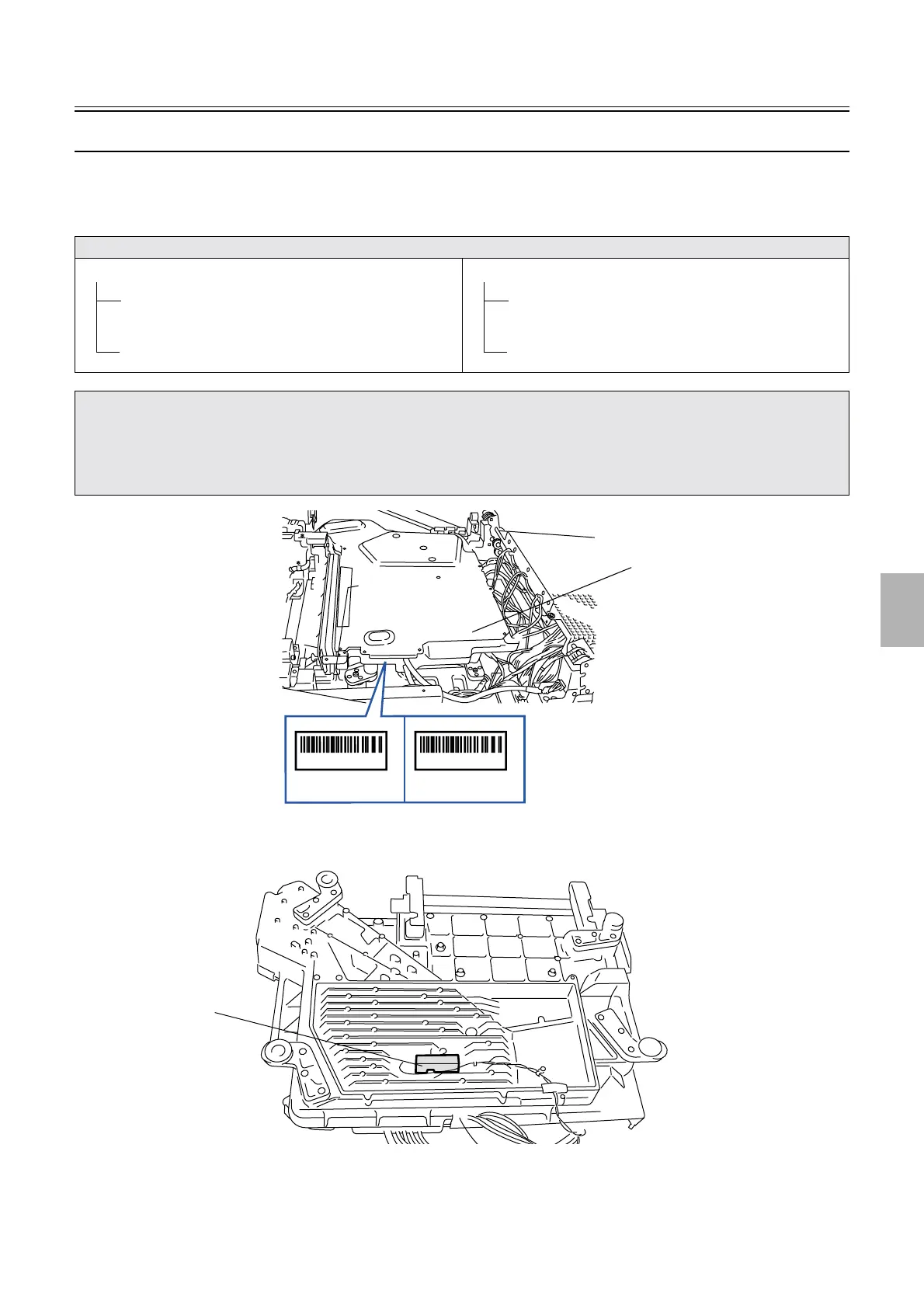

Laser unit (position and description of electrical parts)
!
!!
! Type of the laser unit and identifying its type
There are the following types of laser units. There is no difference in functions and quality.
!
!!
! Layout diagram
Laser unit (Type # # #)
• For replacing and adjusting the position of the laser unit, see ☞26710.
• There are two ways to identify the type of the laser unit which is equipped as described below.
1. It can be identified by the version of the LASER on the System Version Check display.
☞35500
2. It can be identified by the label placed on the laser unit.
Z026679: Laser unit (Type HhB)
J391231: G laser driver
Z020259: Laser unit (Type hB)
Label: first five digits No. 03700
Z026680: Laser unit (Type IiB)
J391160: G laser driver
Z026681: Laser unit (Type iB)
Label: first five digits No. 03730
03730#######03700#######
Laser unit
Type hB
Label: first five digits
Type iB
G085240
1
G068440
