Processor paper advance operation
1/2
5. Operation sequence
56110
56110

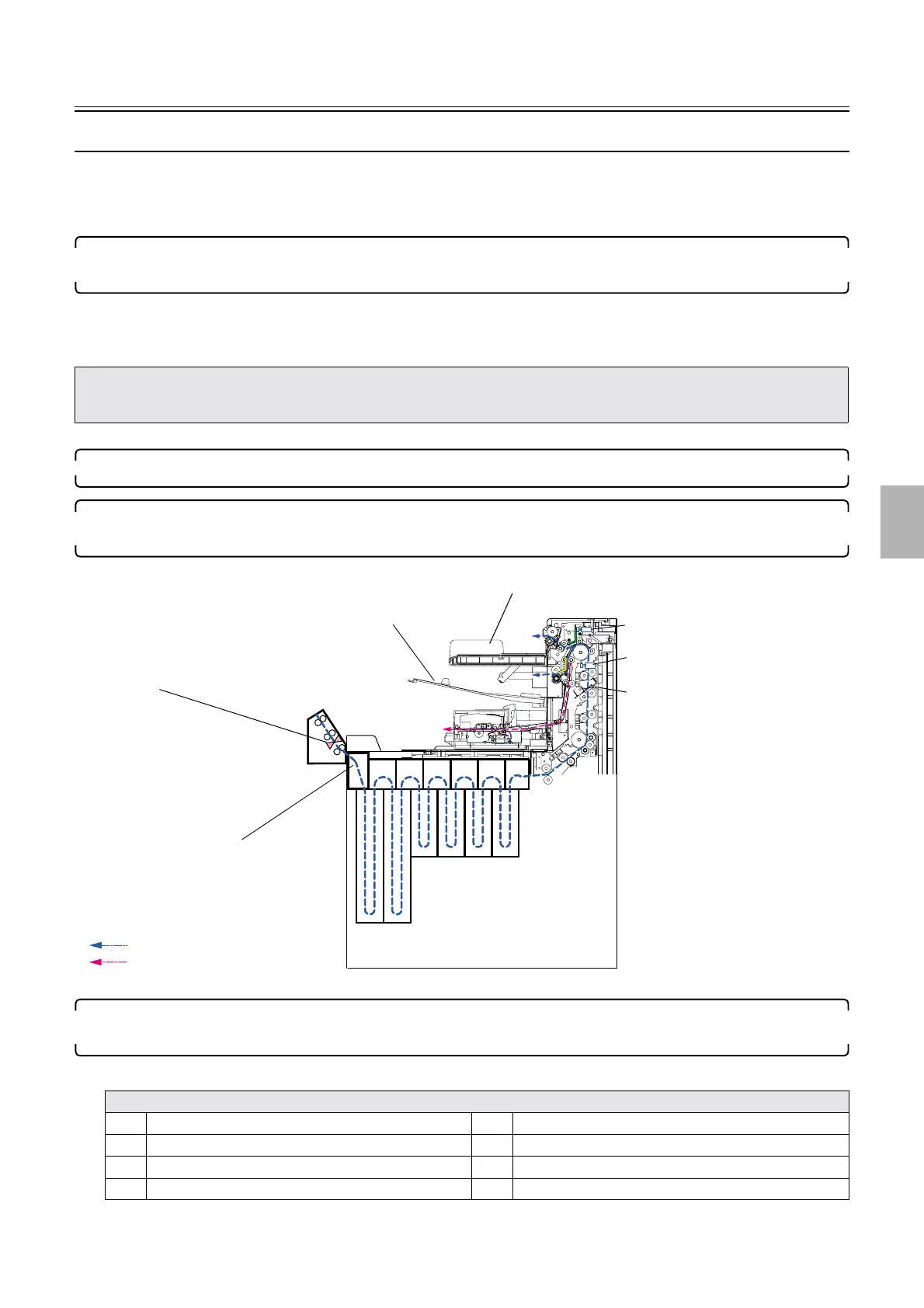

Paper advance operation of the processor (setup prints)
This section explains the operation from entering of setup print paper into the processor to ejecting of the setup print paper from the
colorimeter unit. It is a precondition that the temperature adjustment of the processing solution is completed.
Normal print paper advance operation is different from the setup operation.
1. Transmit the paper advance signal from the printer to the processor before loading paper, the processor is
in the conditions below.
• Processor drive motor: ON
• Dryer fan: ON
• Dryer heater: ON
•
2. Load paper, and start exposure advance operation.
3. The back edge of the paper passes through paper sensor 2 (left, center, right), which is located in the
processor loading unit.
4. When the paper leading edge passes position A in the above figure, the process signal is transmitted to
the processor by the printer.
• The following data are transmitted to the processor by the printer.
• For the setup print, start the paper loading after the Dryer Temperature or Dryer Section Setting (Auto Setup) reached Waiting
Time.
☞33505
Transmission data list
1 Information of paper advance length 5 Information of print counts
2 Information of paper width 6 Information of paper advance position
3 Information of paper surface 7 Information of paper lane
4 Order information 8 Information of splice
Paper sensors 2 (left, center and right)
Position A
Print conveyor unit
Print receiving tray (large)
Normal Print
Setup print
Dryer selection solenoid 1
Dryer selection solenoid 2
Dryer Lane Select Sensor
G085226
