Frontier LP7700 - Paper Advance Unit 2 (Positions of Electrical Parts)

Position of electrical parts (printer section)
1/1
6. Electrical parts
63100
63100

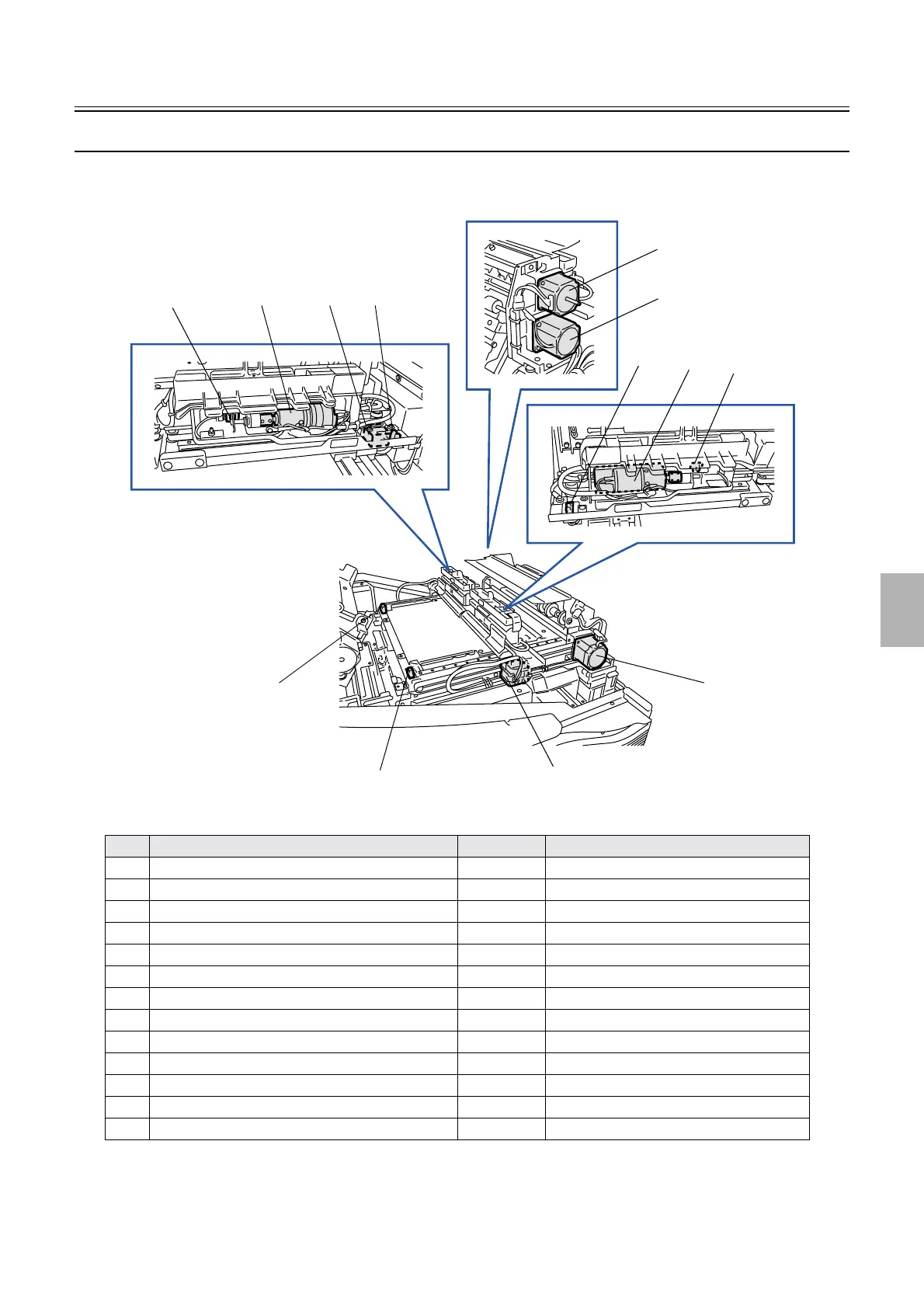

Paper advance unit 2 (positions of electrical parts)
!
!!
! Layout diagram
Paper advance unit 2
No. Name Symbol Remarks
1 Arm Sensor (Left) SE19
2 Arm Sensor (Right) SE20
3 Lane Select Sensor (Left) PM17
4 Lane Select Sensor (Right) PM18
5 Paper Advance Pressure Change Motor (Left) DM4
6 Paper Advance Pressure Change Motor (Right) DM5
7 Paper Advance Arm Motor (Left) PM15
8 Paper Advance Arm Motor (Right) PM16
9 Paper Advance Motor 3 PM19
10 Lane Select Sensor (Left) SE21
11 Lane Select Sensor (Right) SE22
12 Paper Advance Pressure Change Sensor (Left) SE23
13 Paper Advance Pressure Change Sensor (Right) SE24
8
4
2
6
13
11
12
5
3
10
9
7
1
G068424
