Frontier LP7700 - Laser Self-Diagnostic (Details of Modes)

Self-diagnostic
1/4
3. Mode
35950
35950
Laser Self-Diagnostic (details of modes)
Also see the following references to utilize for diagnosis.
Bringing up the display
Maintenance: 2260 → Extension → Maintenance → Self-diagnostic → Laser Self-Diagnostic
!
!!
! FRONTIER-Printer: Ver. 2.01 or earlier, QSS-Printer: Ver. 4.02 or earlier
!
!!
! FRONTIER-Printer: Ver. 3.0 or later, QSS-Printer: Ver. 5.0 or later
*1. The Laser Self-Diagnostic (MANUAL) display is the same for all versions.
NOTE
• Laser Self-Diagnostic is supported by FRONTIER-Printer Ver. 2.0 or later, and QSS-Printer Ver. 3.0 or later.
• The Laser Self-Diagnostic of FRONTIER-Printer: Ver. 2.01 or earlier, and QSS-Printer: Ver. 4.02 or earlier has the problems
shown below.
The problems have been resolved in FRONTIER-Printer Ver. 3.0 or later, and QSS-Printer Ver. 5.0 or later.
• If Laser Self-Diagnostic is performed while the lasers are asynchronous, the message, Failed. is shown.
Model Reference Model Reference
Laser Self-Diagnostic (diagnosis: AUTO)
☞35951 Laser Self-Diagnostic (diagnosis: MANUAL) ☞ 35952
Laser Self-Diagnostic (starting/exiting) ☞35953

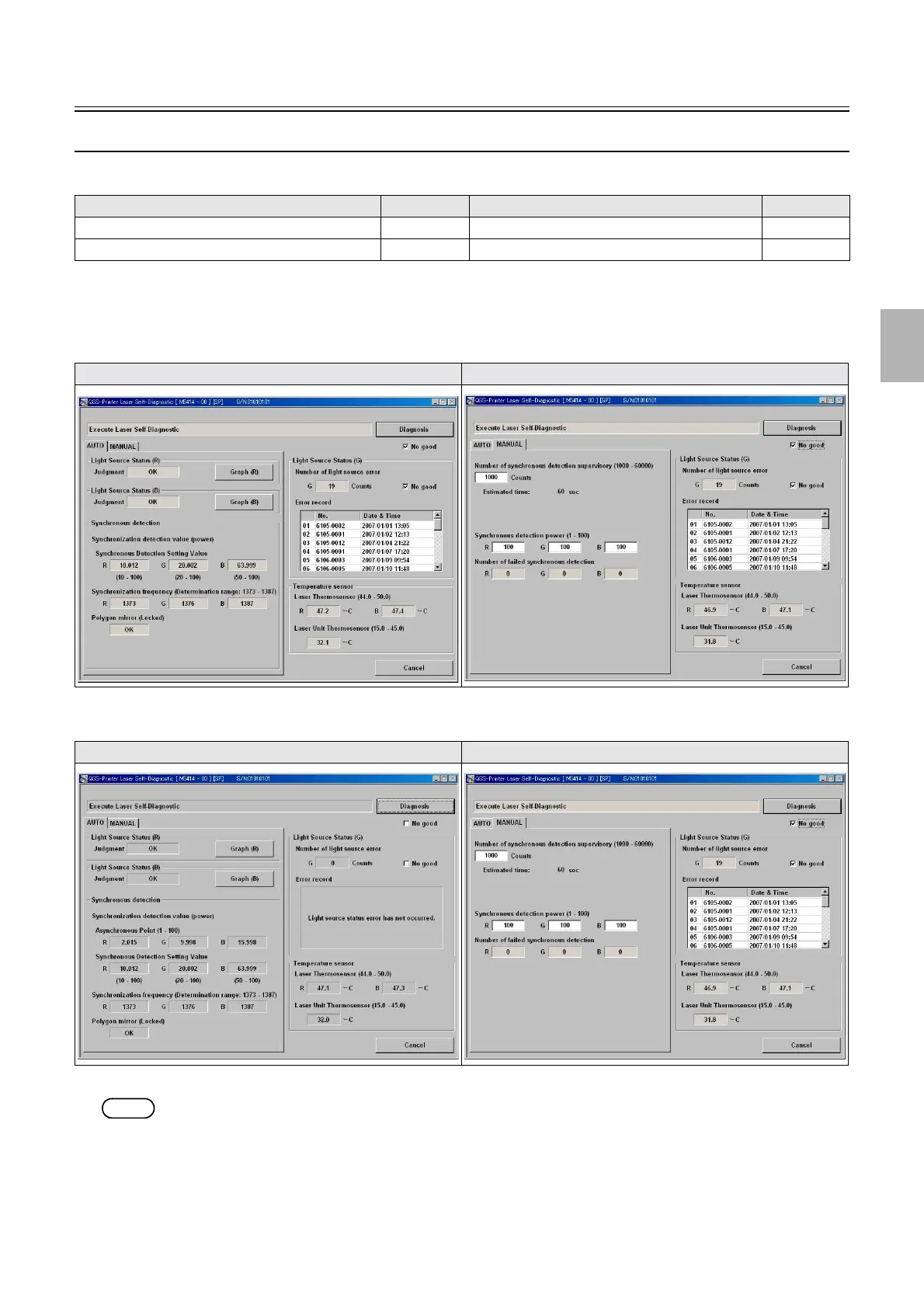

Laser Self-Diagnostic (AUTO) Laser Self-Diagnostic (MANUAL)
*1
Laser Self-Diagnostic (AUTO) Laser Self-Diagnostic (MANUAL)
*1
