4. Troubleshooting
4610
4610

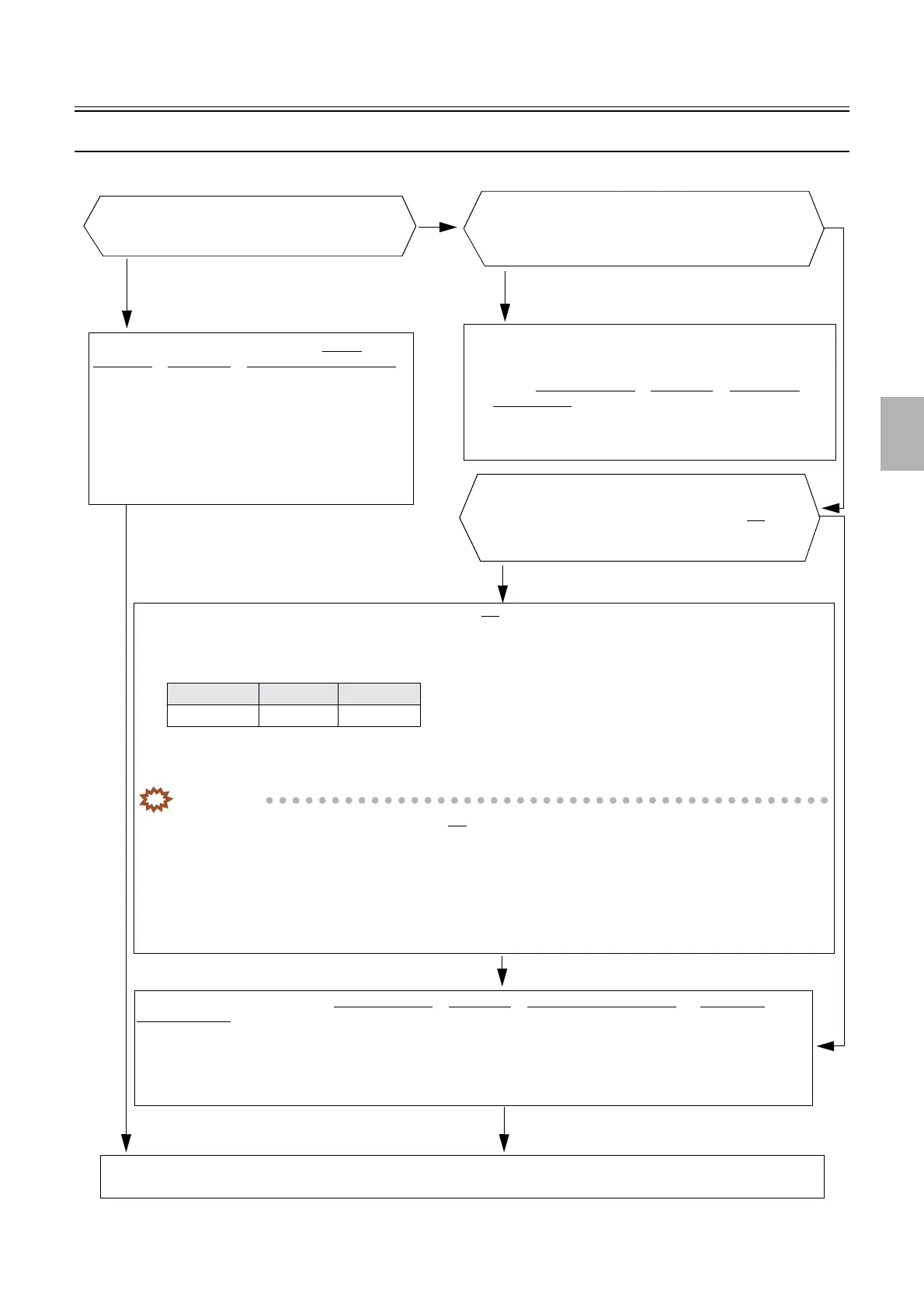

Recovery procedure 1 from the replenishment error
The printing process can be continued.
YES
The replenisher cartridge is open.
NO
YES
P1R (Upper) Replenishment Solution Level Sensor, P2RA
(Upper) Replenishment Solution Level Sensor and P2RB
(Upper) Replenishment Solution Level Sensor are all ON
.
NO
• Add water until all the replenishment solution level sensors turn ON while checking the status of P1R (Upper) Replenishment Solution
Level Sensor, P2RA (Upper) Replenishment Solution Level Sensor and P2RB (Upper) Replenishment Solution Level Sensor at Input
Check.
The maximum additional water (ml)
• Add water from the replenisher cartridge setting part when you add water to each replenishment tank.
See 4600
☞ Replenishment cartridge setting section.
IMPORTANT
• When the replenishment solution level sensor turns ON, immediately stop adding water.
Adding too much water may cause the following errors.
• <
☞ No. 05905[F]−0001P1R replenishment solution output amount/replenishment solution level management is abnormal.
•
☞ No. 05906[F]−0001P2RA replenishment solution output amount/replenishment solution level management is abnormal.
•
☞ No. 05907[F]−0001P2RA replenishment solution output amount/replenishment solution level management is abnormal.
P1R P2RA P2RB
3695 642.5 642.5
If the replenish cartridge is not open, perform Mixing
Replenisher in F: Functions of Pump Output Amount Setting.
☞33003
YES
Replenishment solution is left in the replenisher cartridge.
Replenishment solution leaks in the solution tank.
NO
1. Discharge all replenishment solution in the replenishment tank.
☞ 27550
2. Attach new replenish cartridge. After the problems are solved,
perform Mixing Replenisher
in F: Functions of Pump Output
Amount Setting.
☞ 33003
After the problems are solved, perform Mixing Replenisher in F: Functions of Pump Output Amount Setting and initialize the
replenishment data.
☞33003
