Description of PCB (printer section)
1/3
6. Electrical parts
66005
66005
Printer I/F main PCB (J391391, J391489)
!
!!
! Function
• LAN interface
• Enlarges received JPEG images.
• Transfers images to the Exposure Engine Section.
• Controls LCD displays and optional keyboard unit.
• ARCNET communication
!
!!
! Reference
!
!!
! Adjustments and precautions for PCB replacement
• The printer I/F main PCB retains all data that is read/written by Writing All Data or Reading All Data. ☞35400
• Write down the information of Machine Type Registration, Language, IP Address, Subnet mask, Default gateway, Serial
Number (Printer/Processor), Date of shipment, and Communication Speed Setting of Machine Specification before replacing
the printer I/F main PCB. These items are not backed up.
• Compared to the printer I/F main PCB (J391391), some electrical parts and unused connectors are not included in the printer I/F
main PCB (J391489). However, these PCBs are compatible.

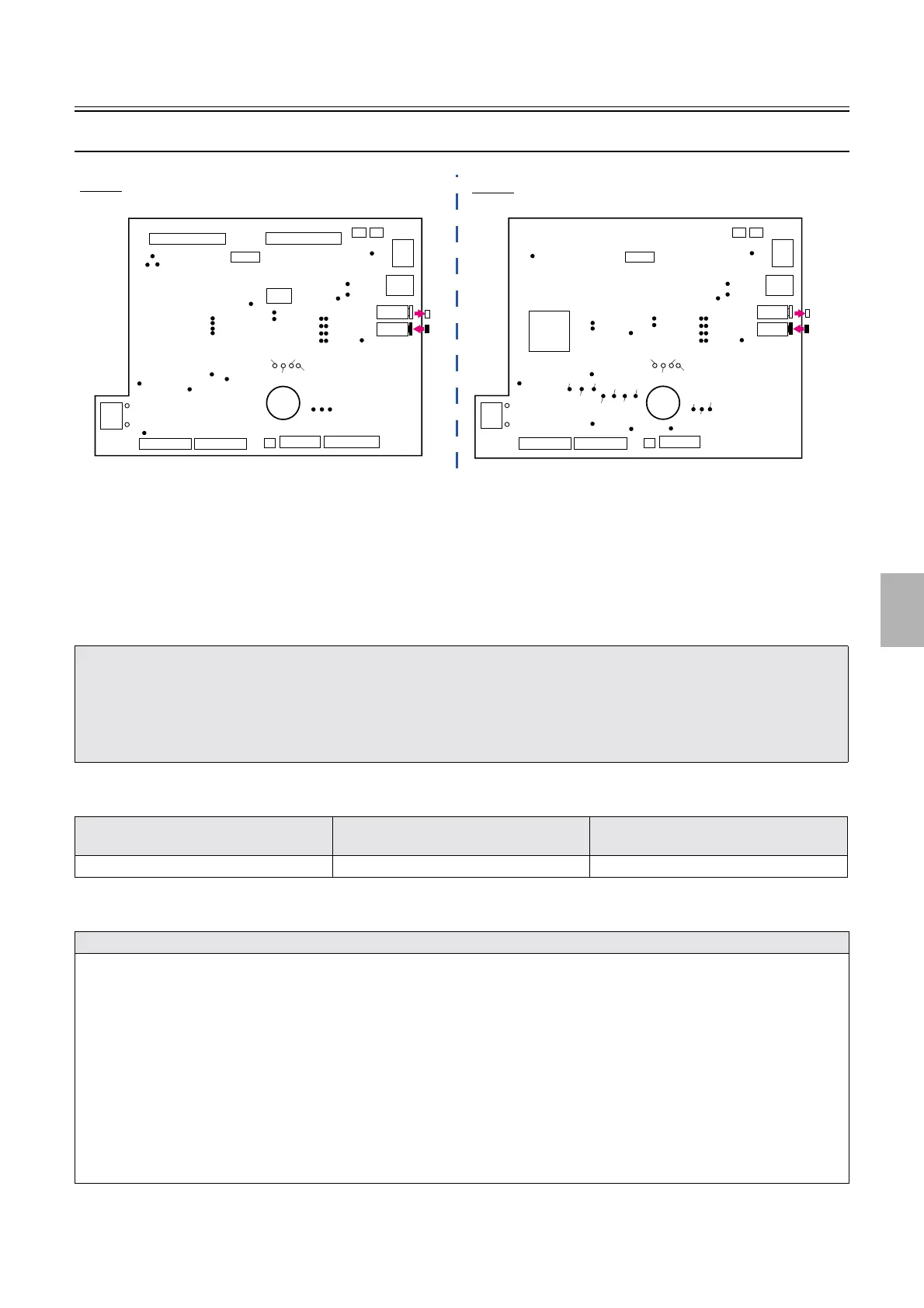

Layout diagram Symptom due to the poor connection of
wiring
Symptoms of fuse blowout
☞63000 ☞4202 -
Explanation
• The printer I/F main PCB settings are configured as below when shipping this product.
• Machine Type Registration of the QSS-Printer: One of the QSS-3501/3502/3501i/3701/3702/3703/3704/3705
• Machine Type Registration of the FRONTIER-Printer: One of the LP7000/LP7100/LP7200/LP7500/LP7600/LP7700/LP7900
• IP Address: 192 . 168 . 1 . 11
• Subnet mask: 255. 255. 255. 224
• Replace the printer I/F main PCB.
• For the QSS-Printer, see
☞66006.
• For the FRONTIER-Printer, see ☞66007.
• If you do not know IP Address, Subnet mask or Communication Speed Setting of the printer I/F main PCB to be replaced,
configure the IP Address, Subnet mask and Communication Speed Setting settings using the display module.
See the display module mode list.
P1203
P1204 P1205
P1206
P1207
P1208
P1210P1211
P1214
P1213
P455
P1202
TP29
TP21
TP24
TP18
TP10
TP11
TP14
TP15
TP9
TP8
TP13
TP12
LED3
LED5
LED4
LED6
TP17
TP31
TP30
TP22
TP25
TP3
TP19
TP16
TP20
TP6
TP7
TP4
TP5
TP1
TP2
LED2
LED1
TP23
TP28
TP26
P1212
TP27
P1200
+
P1204 P1205
P1206
P1207
P1208
P1211
P1214
P1213
P455
TP29
TP21
TP24
TP18
TP10
TP11
TP14
TP15
TP9
TP8
TP13
TP12
LED3
LED5
LED4
LED6
TP17
TP31
TP30
TP22
TP3
TP39
TP19
TP16
TP40
TP7
TP4
TP1
TP2
LED2
LED1
TP23
TP28
TP26
P1212
TP27
TP37
P1200
+
TP35
TP34
TP36
TP38
CN6CN6
DS1
J391391
J391489
G084988
