Frontier LP7700 - Colorimeter Unit (Positions of Electrical Parts)

Colorimeter unit (positions of electrical parts)
1/1
6. Electrical parts
63318
63318
Colo rimeter u nit (posi tions of electr ical part s)
Colorimeter unit (positions of electrical parts)
!
!!

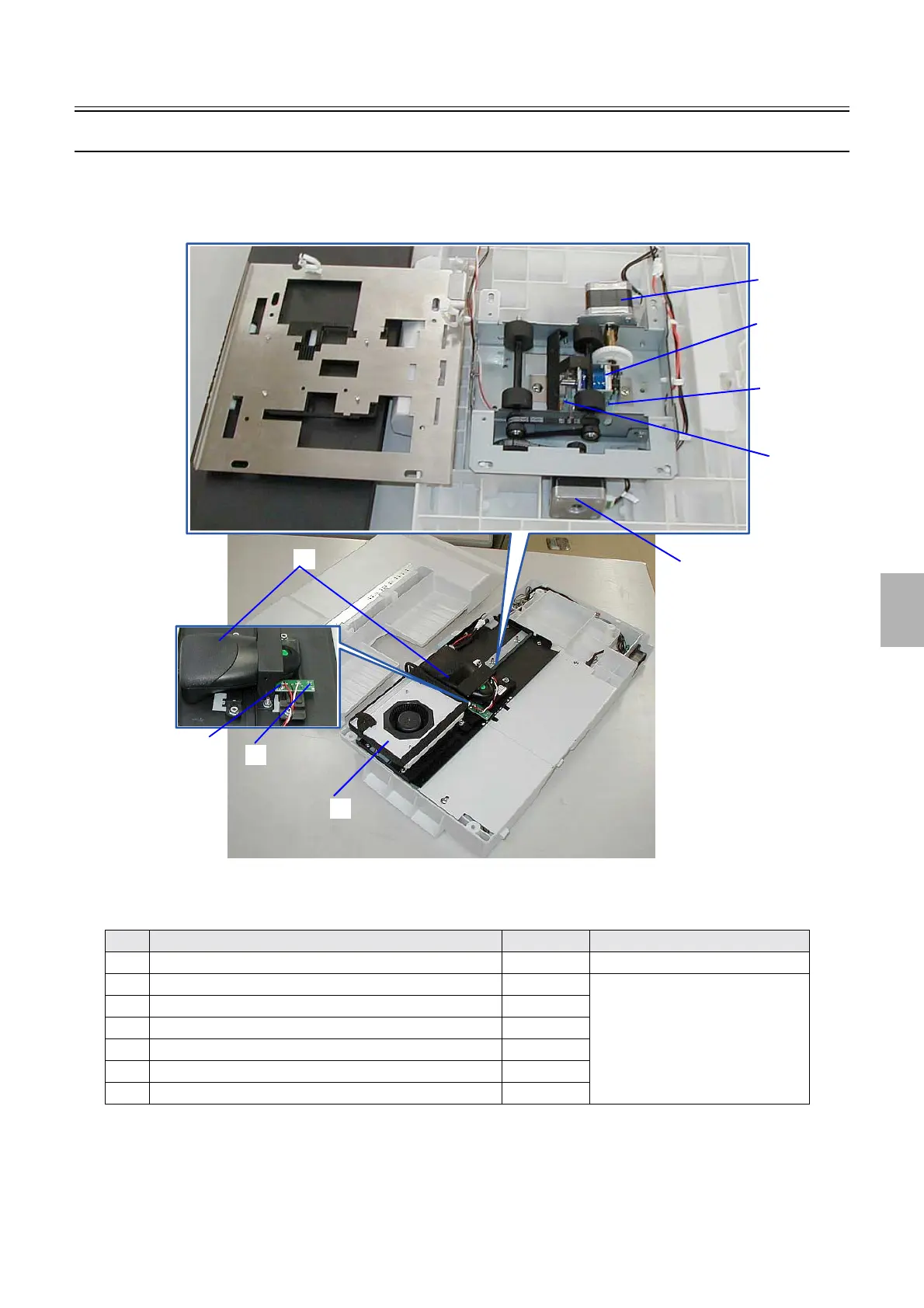

! Layout diagram
Colorimeter unit (electrical parts)
*1. To check these electrical parts, the colorimeter unit needs to be removed.
☞27460
*2. Operation of the colorimeter cooling fan
• On when the drive motor and dryer fan turn on.
• Off when the drive motor and dryer fan turn off.
No. Name Symbol Remarks
1 Colorimeter cooling fan
*2
FAN2
2 Colorimeter - Colorimeter unit
3 Paper sensor 1
*1
SE75
4 Paper sensor 2
*1
SE76
5 Paper advance motor
*1
PM27
6 Pressure change solenoid
*1
SOL1
7 Calibration plate advance motor
*1
PM26
1
2
3
4
5
3
4
6
7
G085255
