Drive section
1/3
2. Replacement and adjustment of parts
27320
27320
Adjusting backlash of dryer rack (lower) (QSS-3704/3705/LP7700/LP7900)
This item varies depending on the model. See the references below.
!
!!
! Procedure
IMPORTANT
• When the dryer rack (lower) has been replaced, this adjustment is necessary.
Backlash adjustment of the dryer rack (upper) is also required.
☞27330
1. Remove the dryer rack (lower).
2. Loosen a adjusting bolt of the drive unit (lower), a lock nut and the screws for A, B.
3. Attach the dryer rack (lower).
Model Reference
QSS-3701/3702/3703/LP7500/LP7600
☞27230

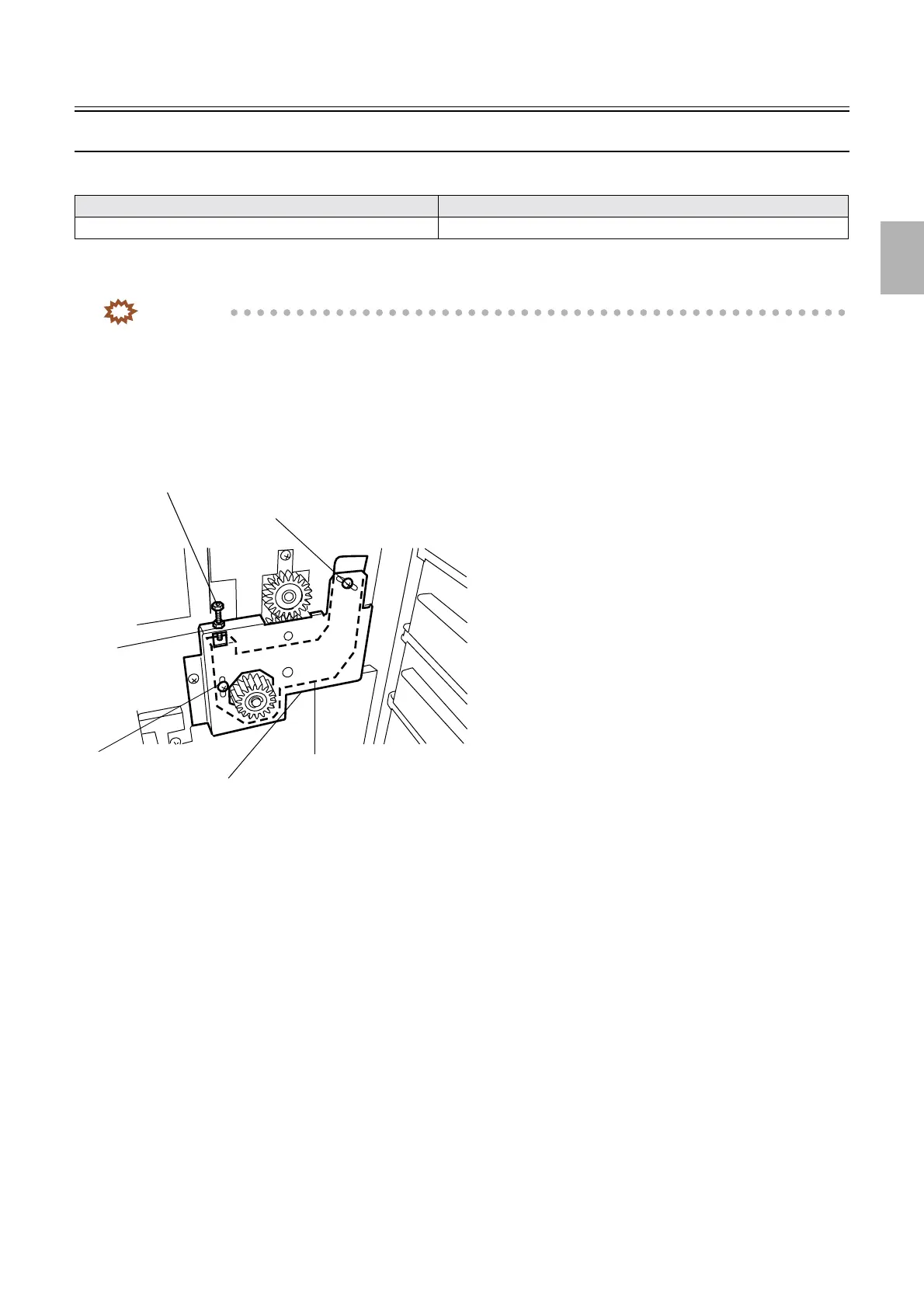

Adjusting bolt (Loosen.)
Lock nut
(Loosen.)
Screw A (Loosen.)
Screw B (Loosen.)
Drive unit (lower)
Gear adjusting plate
G054651
