Drive section
1/3
2. Replacement and adjustment of parts
27330
27330
Adjusting backlash of dryer rack (upper) (QSS-3704/3705/LP7700/LP7900)
This item varies depending on the model. See the references below.
!
!!
! Procedure
IMPORTANT
• When the dryer rack (lower) has been replaced, this adjustment is necessary.
• This adjustment is not required for the dryer rack (upper) because it has already been adjusted when shipping.

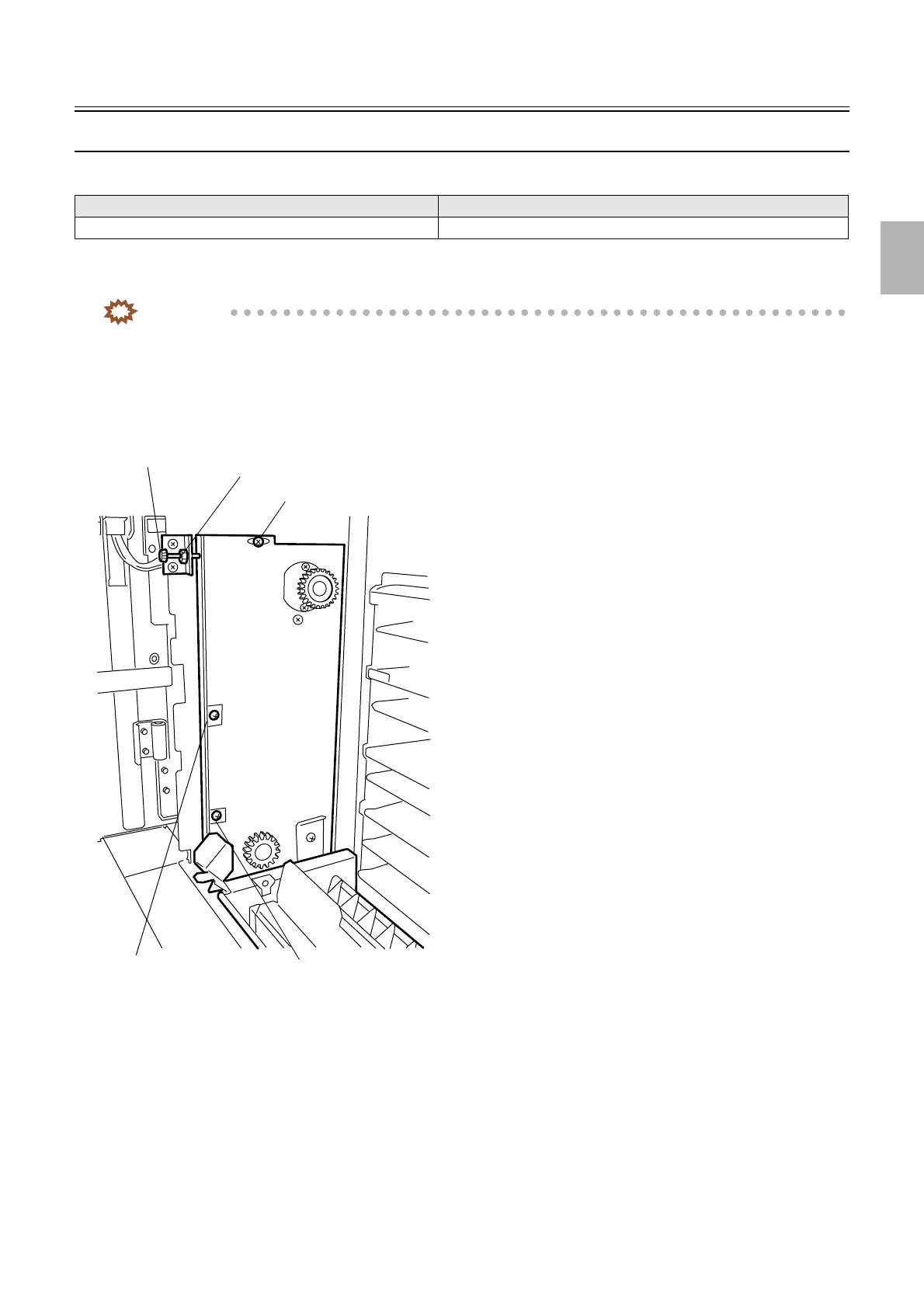

1. Loosen a adjusting bolt, a lock nut and the screws for A, B, and C section (three screws) of the drive unit
(upper).
2. Attach the dryer rack (upper).
Model Reference
QSS-3701/3702/3703/LP7500/LP7600
☞27230
Adjusting bolt
Lock nut
Screw C (Loosen.)
Screw A (Loosen.) Screw B (Loosen.)
G085391
Distributed by: minilablaser.com
