Frontier LP7700 - Cleaning Water Amount Setting[F

Processor Standard Setting
1/2
3. Mode
33501
33501
Cleaning Water Amount Setting[F]
Description for each specification
In this section, the location of information varies depending on the specification. See below for the description for each specification.
• For [N], [SM] and [J] specifications, see ☞Cleaning Water Amount Setting [N] [SM] [J].
Bringing up the display

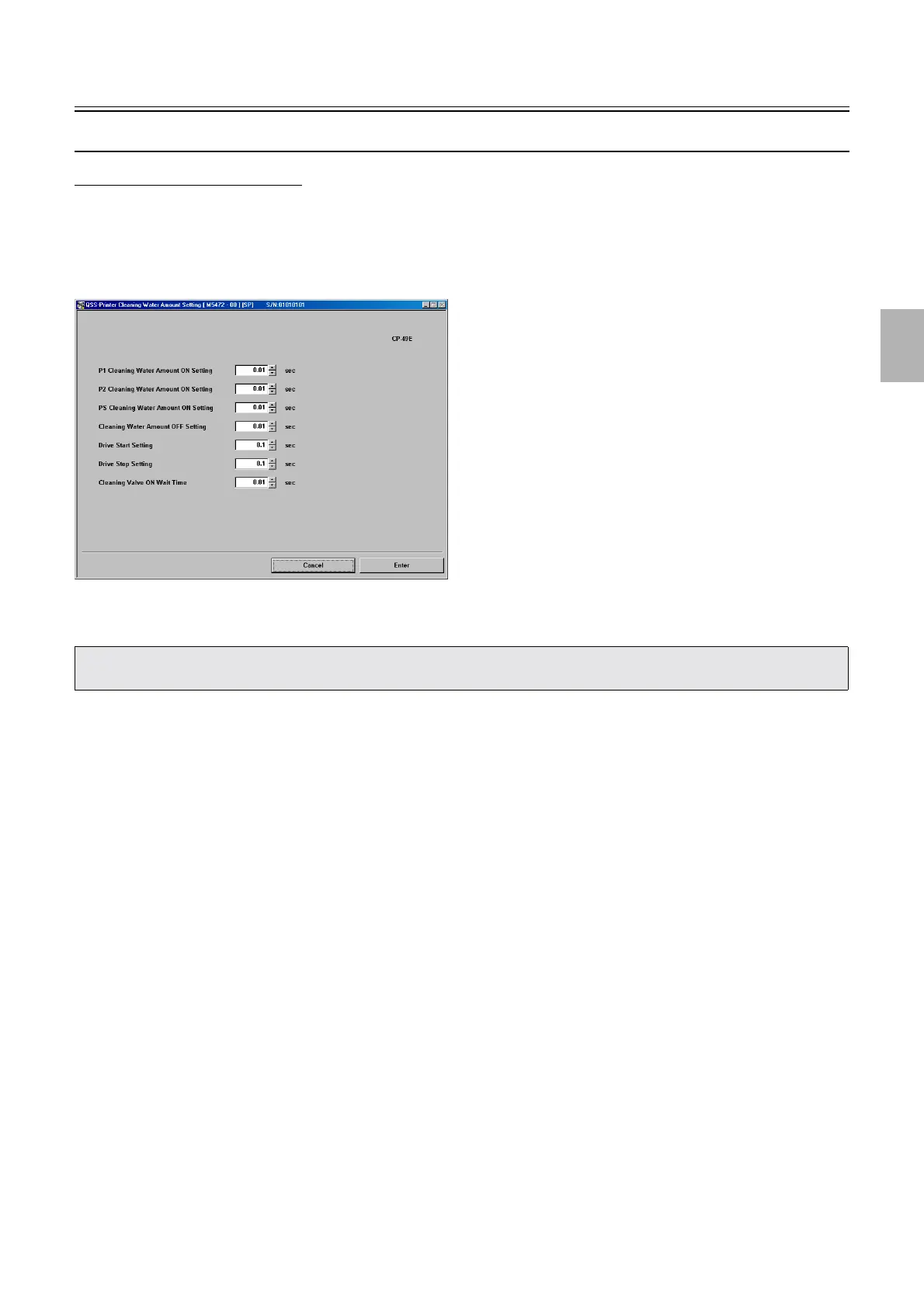

Maintenance: 2260 → Extension → Processor Settings → Processor Standard Setting → Cleaning Water Amount Setting
!
!!
! Explanation
!
!!
! P1 Cleaning Water Amount ON Setting (Initial value: 0.75) (input range: from 0.01 to 10.00 seconds)
Set the operation time of P1 Auto Cleaning Valve + Replenisher Cartridge Cleaning Pump.
!
!!
! P2 Cleaning Water Amount ON Setting (Initial value: 2.61) (input range: from 0.01 to 10.00 seconds)
Set the operation time of P2 Auto Cleaning Valve + Replenisher Cartridge Cleaning Pump.
!
!!
! PS Cleaning Water Amount ON Setting (Initial value: 7.60) (input range: from 0.01 to 10.00 seconds)
Set the operation time of PS Auto Cleaning Valve + Replenisher Cartridge Cleaning Pump.
!
!!
! Cleaning Water Amount OFF Setting (Initial value: 3.00) (input range: from 0.01 to 100.00 seconds)
Set the stop time of the replenishment cartridge cleaning pump.
!
!!
! Drive Start Setting (Initial value: 10.0) (input range: from 0.1 to 100.0 seconds)
Set the time from when the replenishment cartridge cleaning pump starts discharging until the drive motor starts.
!
!!
! Drive Stop Setting (Initial value: 3.0) (input range: from 0.1 to 100.0 seconds)
Set the time from when the replenishment cartridge cleaning pump completes discharging until the drive motor stops.
!
!!
! Cleaning Valve ON Wait Time (Initial value: 1.00) (input range: from 0.01 to 2.00 seconds)
Set the time from when the replenishment cartridge cleaning pump turns on until P1, P2, PS automated cleaning valves open.
• Do not change the Cleaning Water Amount Setting without the instruction from the manufacturer.
• If the processing solution specifications are changed, service personnel can change Cleaning Water Amount Setting on site.
