Frontier LP7700 - Adjusting belt tension

Adjusting belt tension
1/3
2. Replacement and adjustment of parts
20110
20110
Adjusting belt tension

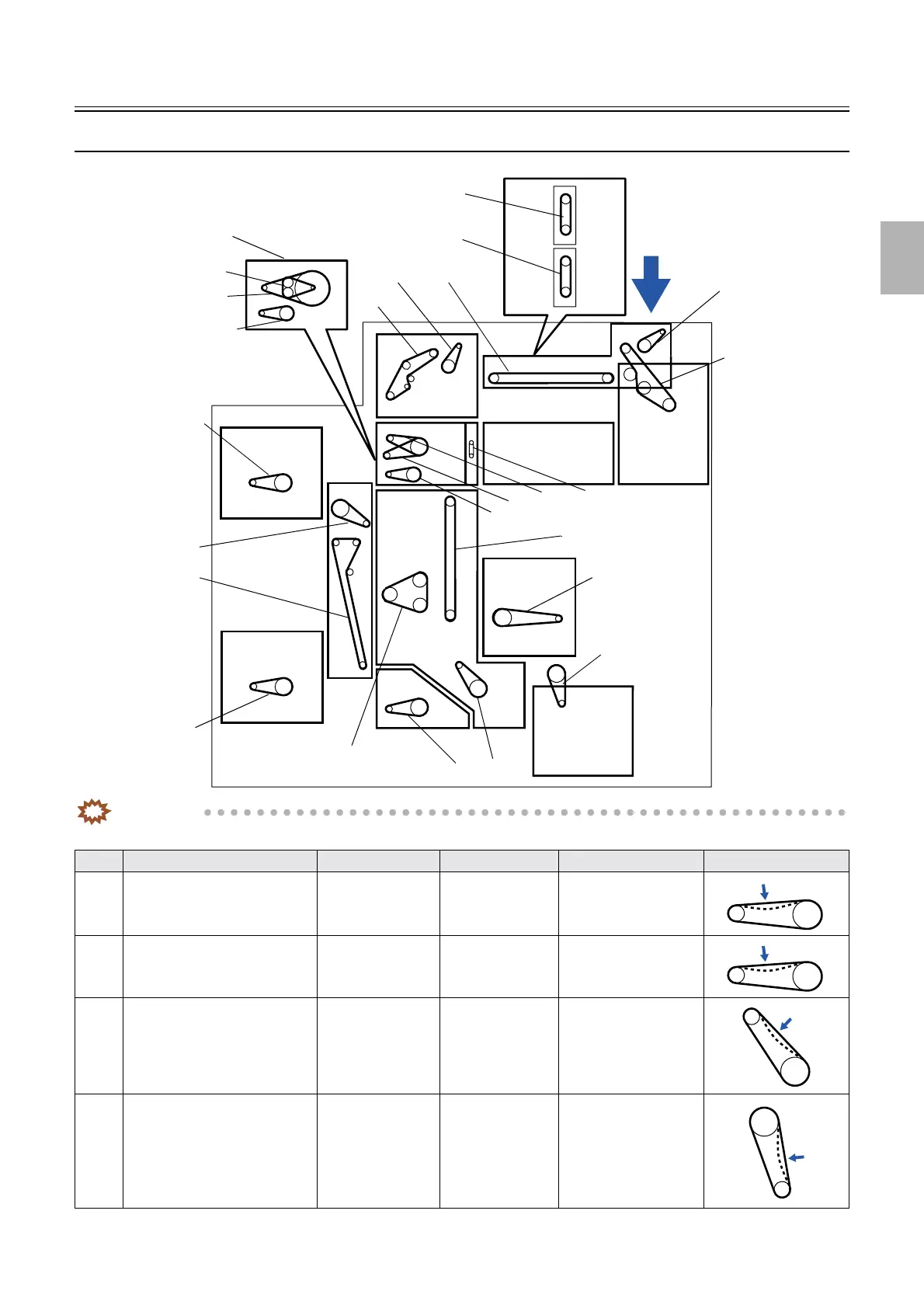

Adjusting the belt tension (printer section)
IMPORTANT
• All views of belts are from the side of printer doors.
No. Name Force Deflection Adjusting point Illustration
1 Paper magazine motor A belt 4.0 to 6.3 N
(411 to 637 g)
1.5 mm Paper magazine motor
A
2 Paper supply motor A belt 10.7±2.1N
(1086±214 g)
1.0 mm Paper supply motor A
3 Paper supply motor B/C belt 6.3±1.3N
(638±136 g)
1.0 mm Paper supply motor B/C
4 Paper magazine motor C belt 4.0 to 6.3 N
(412 to 637 g)
1.5 mm Paper magazine motor
C
6
3
7,8
16
20
19
17,18
14
13
15
11
10
9
5
4
1
2
Viewed from the arrow
21
22
Exposure advance unit (far side)
23
24
25
26
12
G085305
