2. Replacement and adjustment of parts
20110
20110

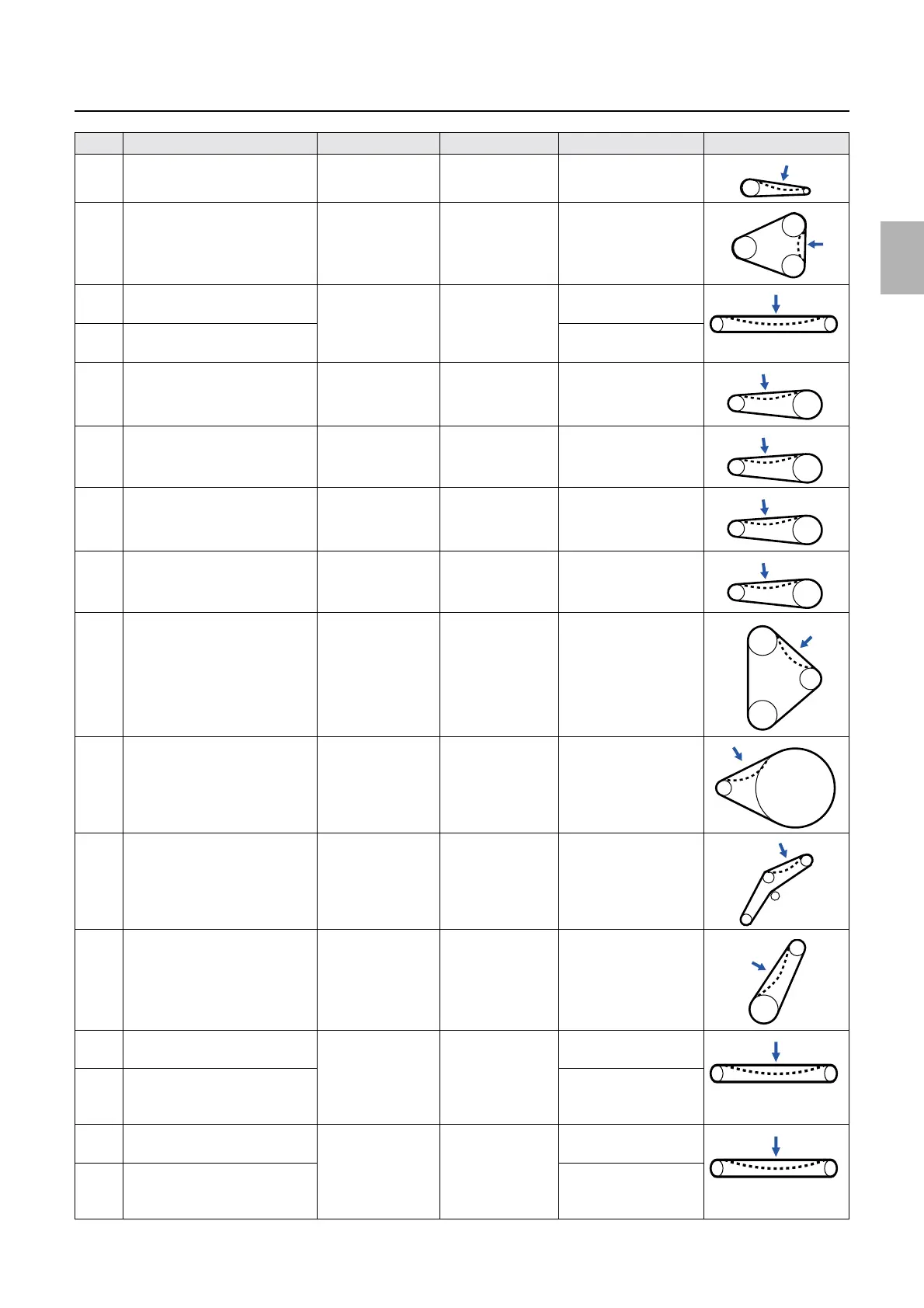

Adjusting belt tension
5 Paper magazine motor B belt 4.3 to 6.4 N
(411 to 657 g)
2.5 mm Paper magazine motor
B
6 Paper advance motor 1 belt 1.9±0.4N
(198±43 g)
1.0 mm Paper advance motor 1
7 Paper supply arm motor (left)
belt
2.5±0.5N
(255±48 g)
5.0 mm Paper supply arm motor
(left)
8 Paper supply arm motor (right)
belt
Paper supply arm motor
(right)
9 Exposure advance motor 1 belt 1.8 to 2.6 N
(188 to 265 g)
1.0 mm
10 Exposure advance pressure
change motor 1 belt
0.9 to 1.4 N
(90 to 140 g)
1.0 mm Exposure advance
pressure change motor 1
11 Exposure advance pressure
change motor 2 belt
1.6 to 2.2 N
(163 to 228 g)
2.0 mm Exposure advance
pressure change motor 2
12 Exposure advance pressure
change motor 3 belt
2.8 to 3.7 N
(289 to 377 g)
2.0 mm Exposure advance
pressure change motor 3
13 Exposure advance belt 10.3 to 11.3 N
(1050 to 1150 g)
1.0 mm Pulley holder
14 Exposure advance motor 2 belt 8.8 to 9.8 N
(900 to 1000 g)
2.0 mm Exposure advance
motor 2
15 Paper advance motor 2 belt 2.1±0.5N
(218±50 g)
1.0 mm Paper advance motor 2
16 Pressure guide motor belt 2.9±0.6N
(294±59 g)
1.0 mm Pressure guide motor
17 Paper advance arm motor (right)
belt (belt width: 10 mm)
2.7±0.6N
(280±60 g)
5.0 mm Paper advance arm
motor (right)
18 Paper advance pressure change
motor (left) belt (belt width: 10
mm)
Paper advance pressure
change motor (left)
17 Paper advance arm motor (right)
belt (belt width: 8 mm)
3.8±0.5N
(383±46 g)
8.0 mm Paper advance arm
motor (right)
18 Paper advance pressure change
motor (left) belt (belt width: 8
mm)
Paper advance pressure
change motor (left)
No. Name Force Deflection Adjusting point Illustration
