Frontier LP7700 - Triple Magazine Pcb (J)

Description of PCB (printer section)
1/1
6. Electrical parts
66050
66050
Triple magazine PCB (J391257)
!
!!
! Function
• Controls the electrical parts of the triple magazine unit.
!
!!
! Reference
!
!!
! Adjustments and precautions for PCB replacement
• None
!
!!
! Unused connector
!
!!
! Component parts table

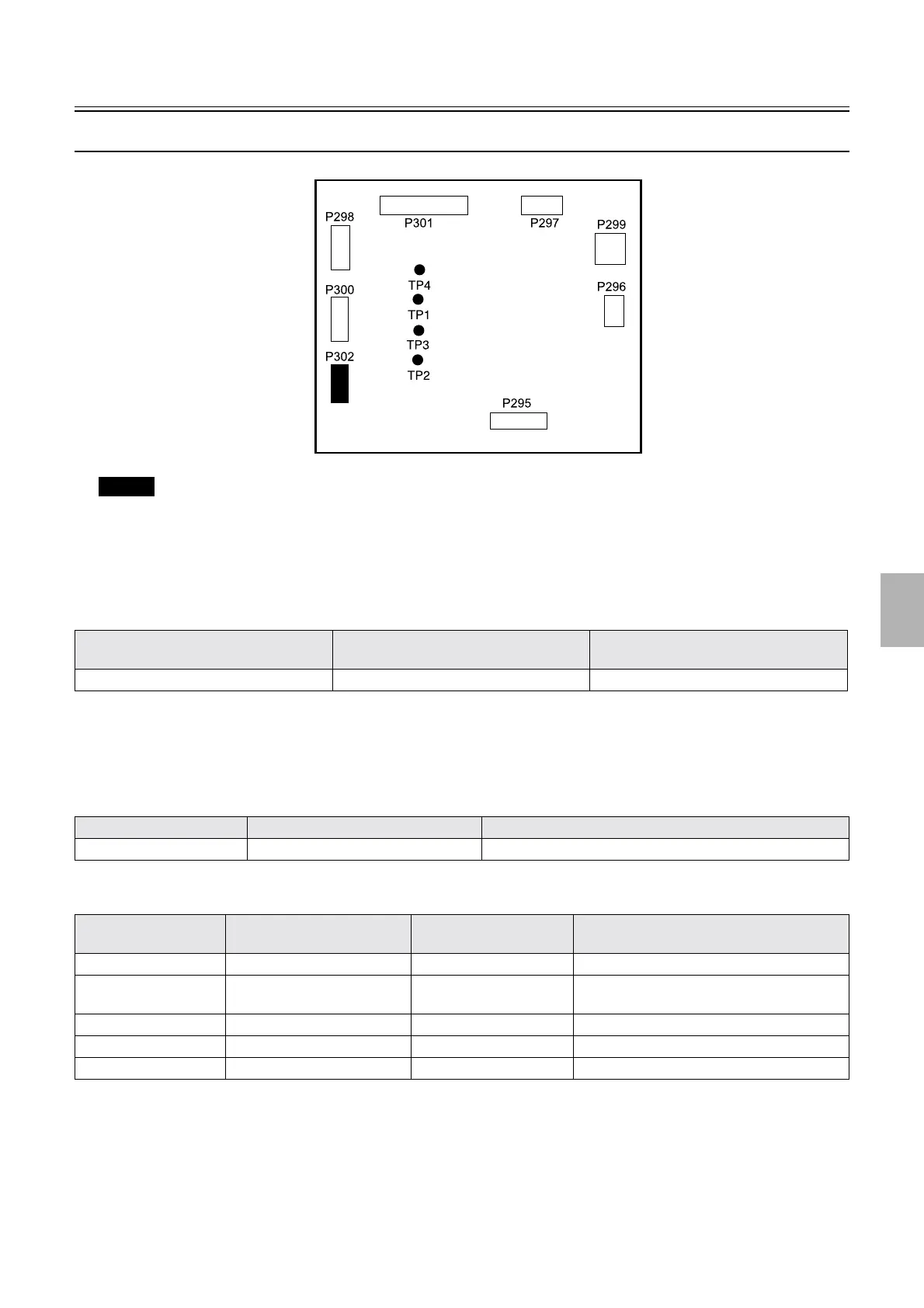

Layout diagram Symptom due to the poor connection of
wiring
Symptoms of fuse blowout
☞63000 ☞4202 -
Connector No. Purpose Remarks
P302 Unused
Test point No. Purpose Measurement with
voltmeter
Remarks
TP1 DC+5 V voltage measurement Possible
TP2 DC+36 V voltage
measurement
Possible 0 V when interlock switch is off.
TP3 Unused Impossible
TP4 Ground Possible
TP5 Ground Possible
Unused
G068360
