Printer Mechanical Adjustment
1/2
3. Mode
36000
36000
Printer Mechanical Adjustment
Paper sensor adjustment
Bringing up the display

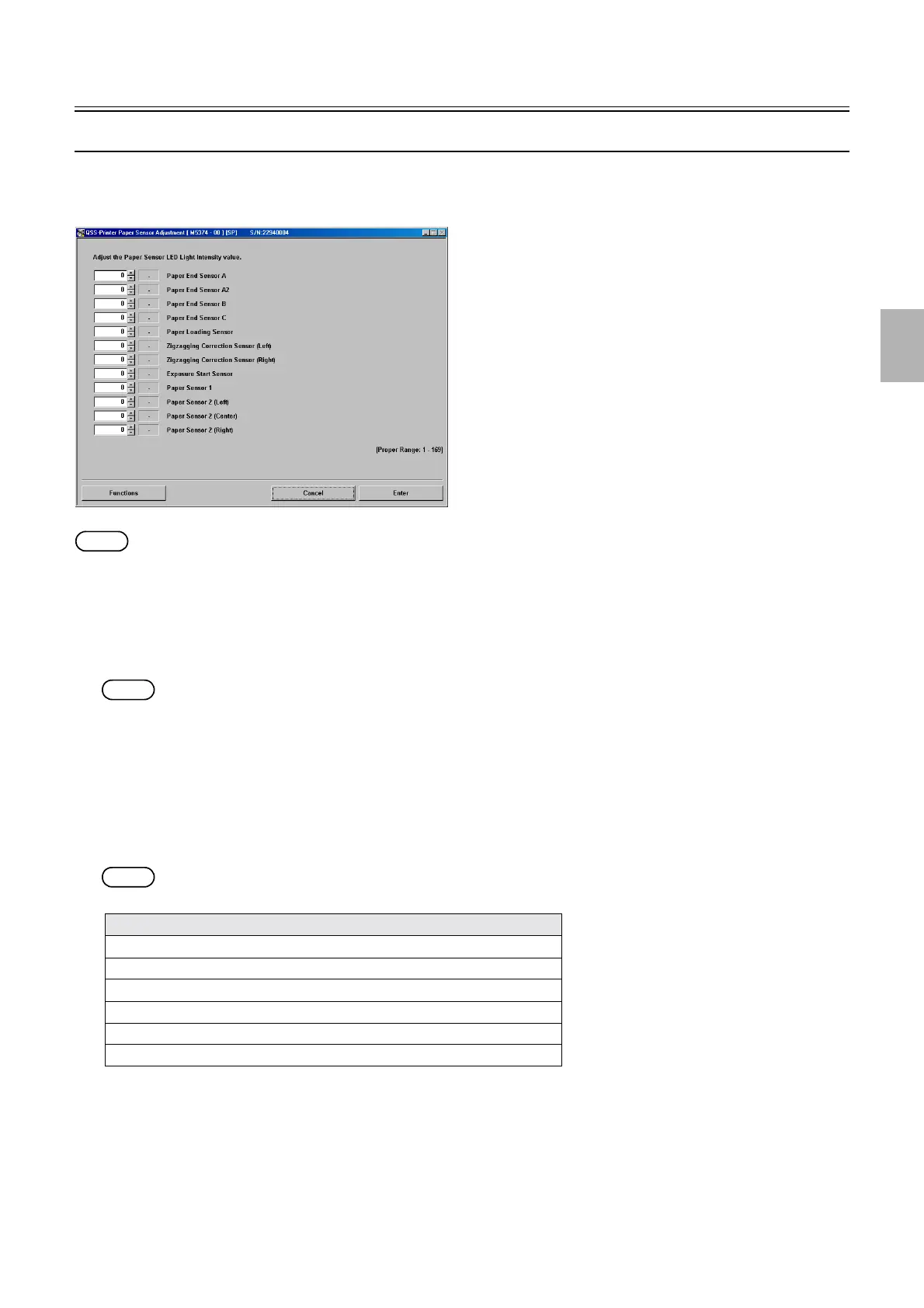

Maintenance: 2260 → Extension → Maintenance → Various Adjustment → Printer Mechanical Adjustment → Paper Sensor Adjustment
NOTE
• The LED light intensity value of each sensor can be checked and set by entering the service personnel password (2260).
!
!!
! Explanation
!
!!
! Paper Sensor Adjustment (standard value: 5) (input range: 0 to 255)
It is the standard value to be used for adjusting the LED light intensity of each sensor.
NOTE
• The normal range of the LED light intensity value of each sensor is from 1 to 169.
• When the paper sensor LED light intensity adjustment was finished abnormally, the numeric value input section becomes 0 and
the status section becomes -.
!
!!
! Functions
!
!!
! Paper Sensor LED Light Intensity Adjustment
Adjust the LED light intensity of each sensor.
NOTE
• With this Paper Sensor LED Light Intensity Adjustment function, the sensors below are adjusted.
• Paper end sensor A is shown when the triple magazine unit or the quad magazine unit has been attached.
• Paper end sensor A2 is shown when the quad magazine unit has been attached.
Sensors for Sensor LED Light Intensity Value Adjustment
Paper end sensors A, A2, B, and C
Paper loading sensor
Zigzag correction sensors (left and right)
Exposure start sensor
Paper sensor 1
Paper sensors 2 (left, center, and right)
