Paper supply unit
1/2
2. Replacement and adjustment of parts
25640
25640

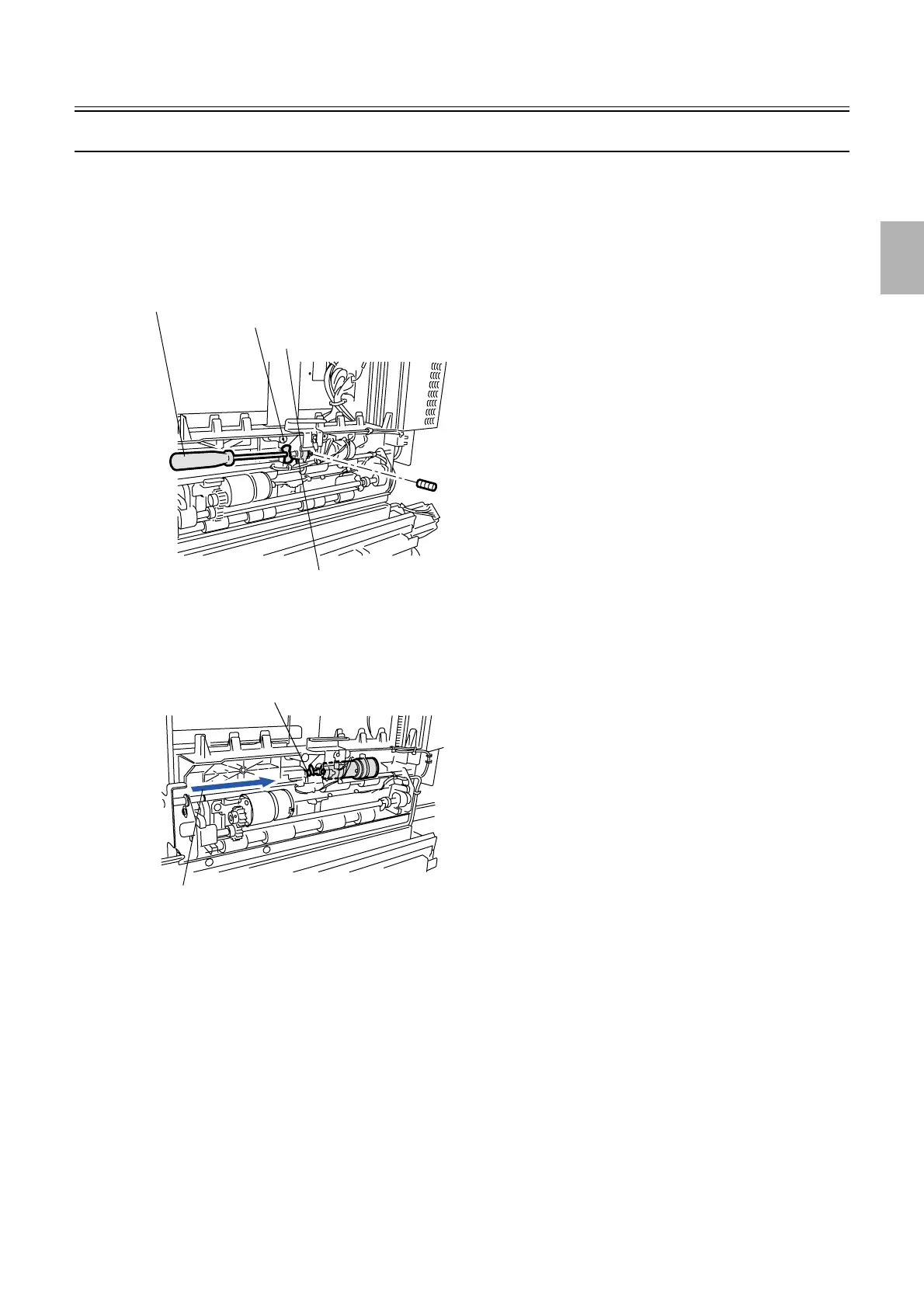

Adjusting the paper hold timing of the paper hold motor
!
!!
! Procedure
1. Pull out the paper supply unit.
2. Set a hexagonal screwdriver onto the detection plate and loosen one of two set-screws on the paper
hold motor.
3. Adjust the position of the detection plate of the paper hold motor.
(1) Look and adjust from the direction indicated by arrow.
(2) Turn the detection plate with a hexagonal screwdriver clockwise to make the cam in a horizontal position.
(3) Loosen another set-screw of the paper hold motor that is loosened in step 2. (Loosen one of the two set-screws.)
Hexagonal screwdriver
Detection plate
Paper hold sensor
Cam
G070029
Detection plate
View from this side.
G068542
