Paper advance operation
1/4
5. Operation sequence
55530
55530

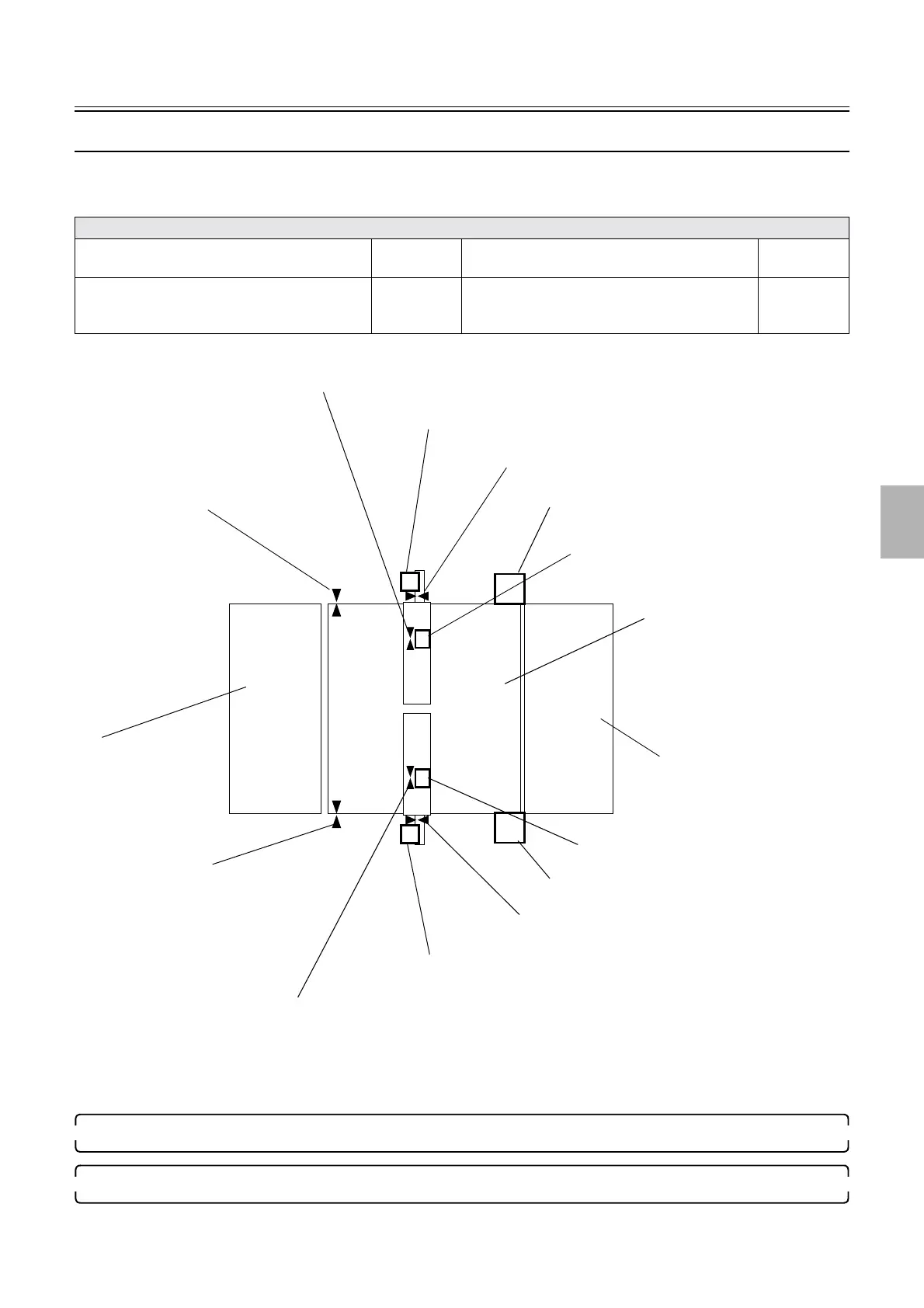

Paper advance unit 2 operation (the paper width is 165.0 mm or more)
• This section explains how the paper goes through the paper advance unit 2.
• Paper advance operation (paper advance unit 2 operation) varies depending on the paper width and the paper advance length.
!
!!
! The paper width is 165.0 mm or more.
1. Paper is advanced from paper advance unit 1.
2. Arm units 2 (right) (left) move to the paper receiving position.
• Lane select motors (right) (left): ON/OFF
Reference
• Paper with the width of 152.0 mm or less and
the advance length of 178.0 mm or less
☞55500 • Paper with the width of 152.0 mm or less and
the advance length of 305.1 mm or more
☞55520
• Paper with the width of 152.0 mm or less and
the advance length between 178.1 and 305.0
mm
☞55510 • The paper width is 165.0 mm or more. ☞ 55530
Paper advance arm motor (left)
Paper advance arm motor (right)
Lane select sensor (left)
Lane select sensor (right)
Arm sensor (right)
Lane select motor (left)
Lane select motor (right)
Arm sensor (right)
Paper advance pressure change motor (left)
Paper advance pressure change sensor (right)
Paper advance pressure change sensor (left)
Paper advance pressure change motor (right)
Processor loading unit
Paper advance unit 2
Paper advance unit 1
G069962
