4. Troubleshooting
4600
2/2
4600
Diagnosis appendix: [F]
!
!!

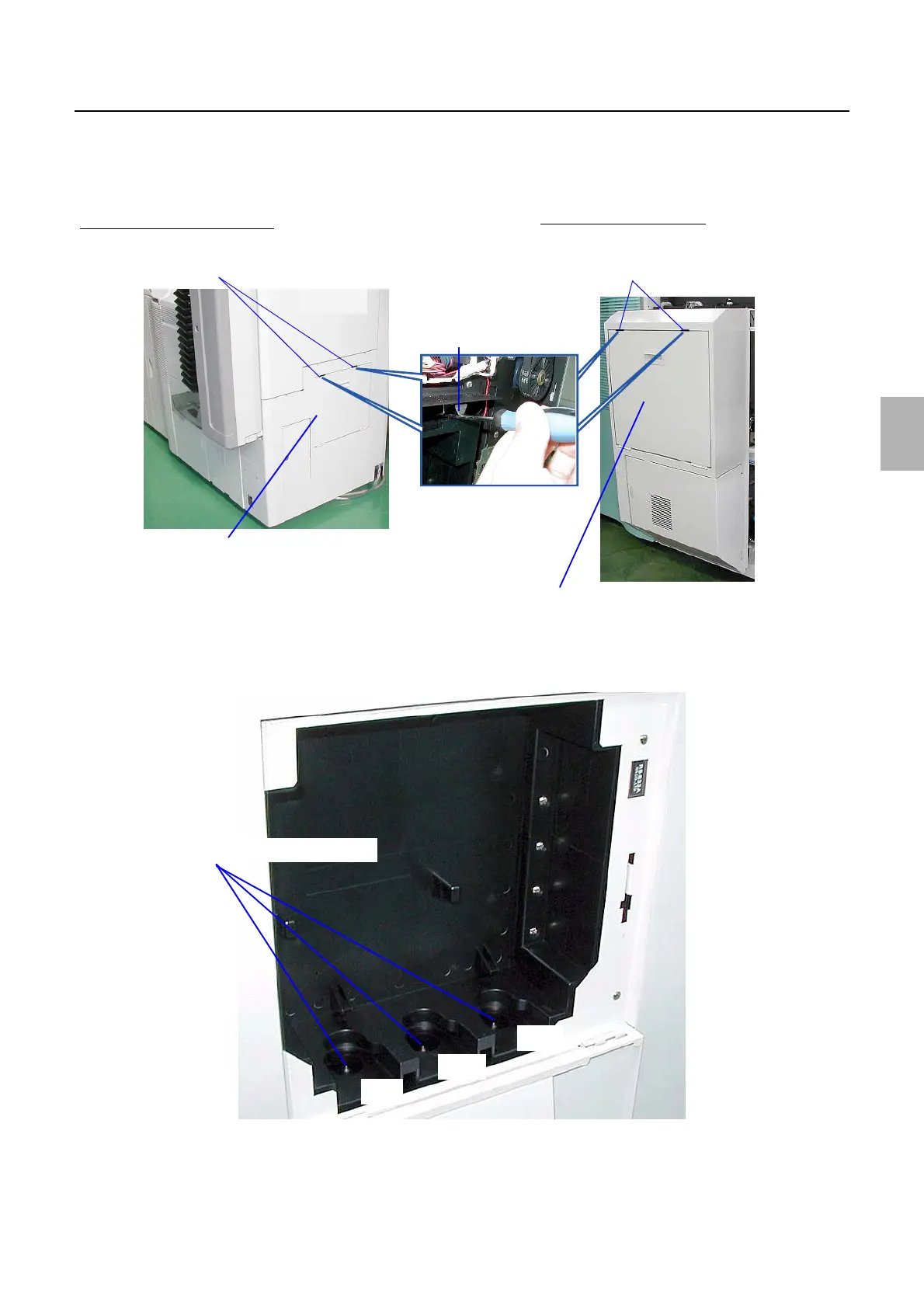

! How to open/close the replenisher section door
If the replenishment cartridge setting section is lowered and the replenisher section door is locked, insert the flathead driver into the
slits beside the replenisher section door, lift the lever, unlock it, then open/close the replenisher section door.
!
!!
! Replenishment cartridge setting section
Confirm that there is no objects in the replenishment cartridge setting section.
Replenisher section door
Slit
Lever
Slit
QSS-3701/3702/3703/LP7500/LP7600
QSS-3704/3705/LP7700/LP7900
Replenisher section door
G085386
Replenishment cartridge setting section
P1R
P2RA
P2RB
G085933
