5. Operation sequence
56110
2/2
56110
Processor paper advance operation
5. Calibrate the colorimeter automatically.
• For the details of colorimeter unit operation, see the following.
☞56600
If the automatic calibration of the colorimeter does not normally complete within a specified time
• ☞No. 06903-00002
Serial communication error.
6. The paper leading end passed through the Dryer Lane Select Sensor.
When the Dryer Lane Select Sensor does not turn dark within a specified time:
• ☞No. 05535-00000
Paper has jammed in the processor section.
• Dryer selection solenoid 1: ON/OFF after a specified time has passe.
If the paper is detected by the Print Sensor (Left), Print Sensor (Center) and Print Sensor (Right) of
the dryer rack before print was detected by Paper Sensor 1:
• ☞No. 05552-00004
Dryer Lane Select Guide operation error.
• Dryer selection solenoid 2: ON/OFF after a specified time has passe.
When the colorimeter unit Paper Sensor 1 does not turn dark within a specified time:
• ☞No. 05552-00005
Dryer Lane Select Guide operation error.
7. The prints are advanced to the colorimeter unit, and the prints are output after measured.
• For the details of setup print color measuring operation, see the following.
☞56610
If colors of the test print cannot be measured normally within a specified time
• ☞No. 06903-00002
Serial communication error.
NOTE
• After the fixed time has passed since the last print was inputted to the colorimeter unit.
• Dryer selection solenoid 1: OFF
• Processor drive motor: OFF
• Dryer fan: OFF
• Dryer heater: OFF
If there are something like fogged parts in the previous process, the selection guide is switched to the colorimeter unit after they are
output from the processor.

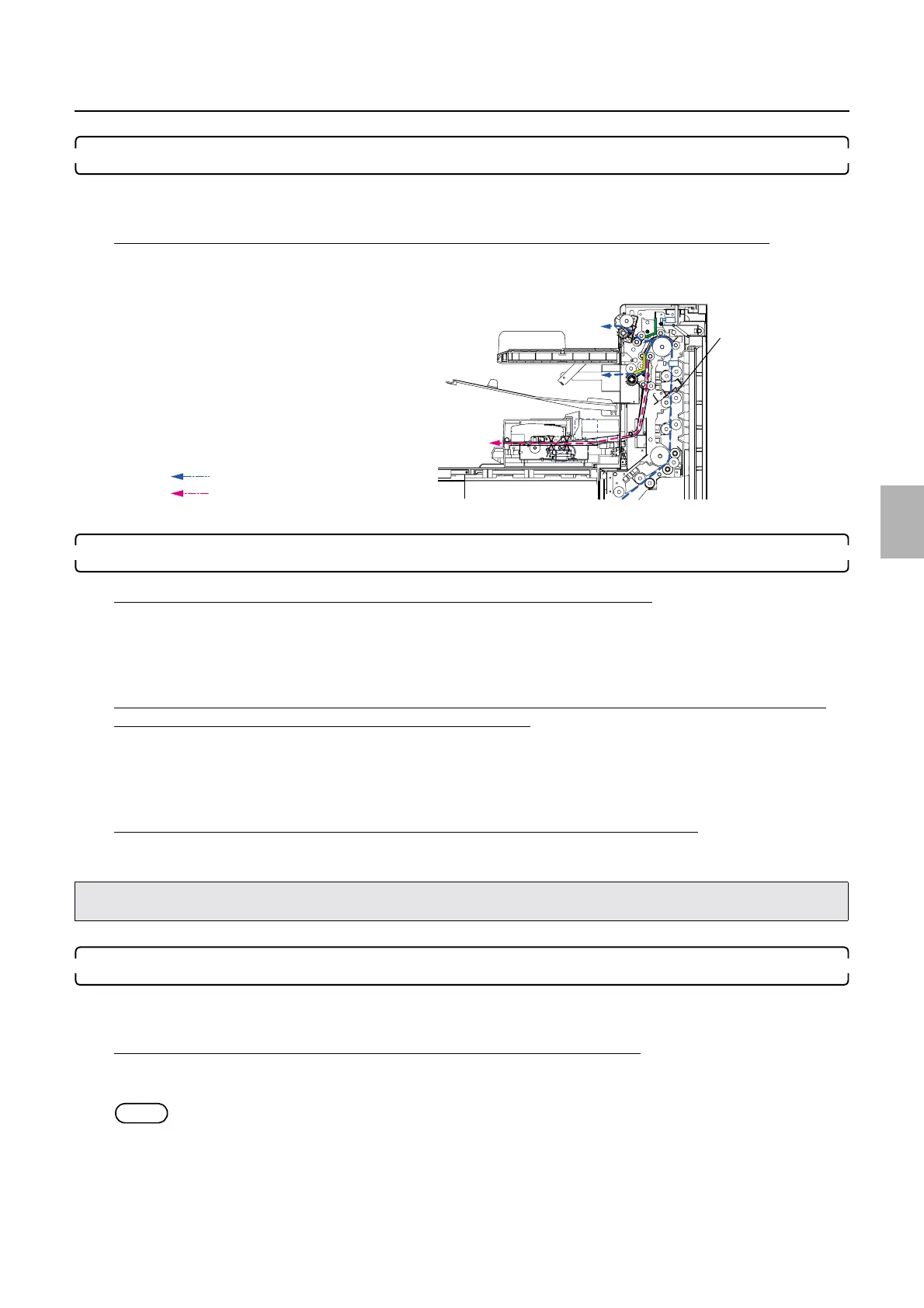

Dryer lane select
sensor: SE45
Normal Print
Setup print
G085229
