2. Replacement and adjustment of parts
27690
27690
Tablet replenishment section

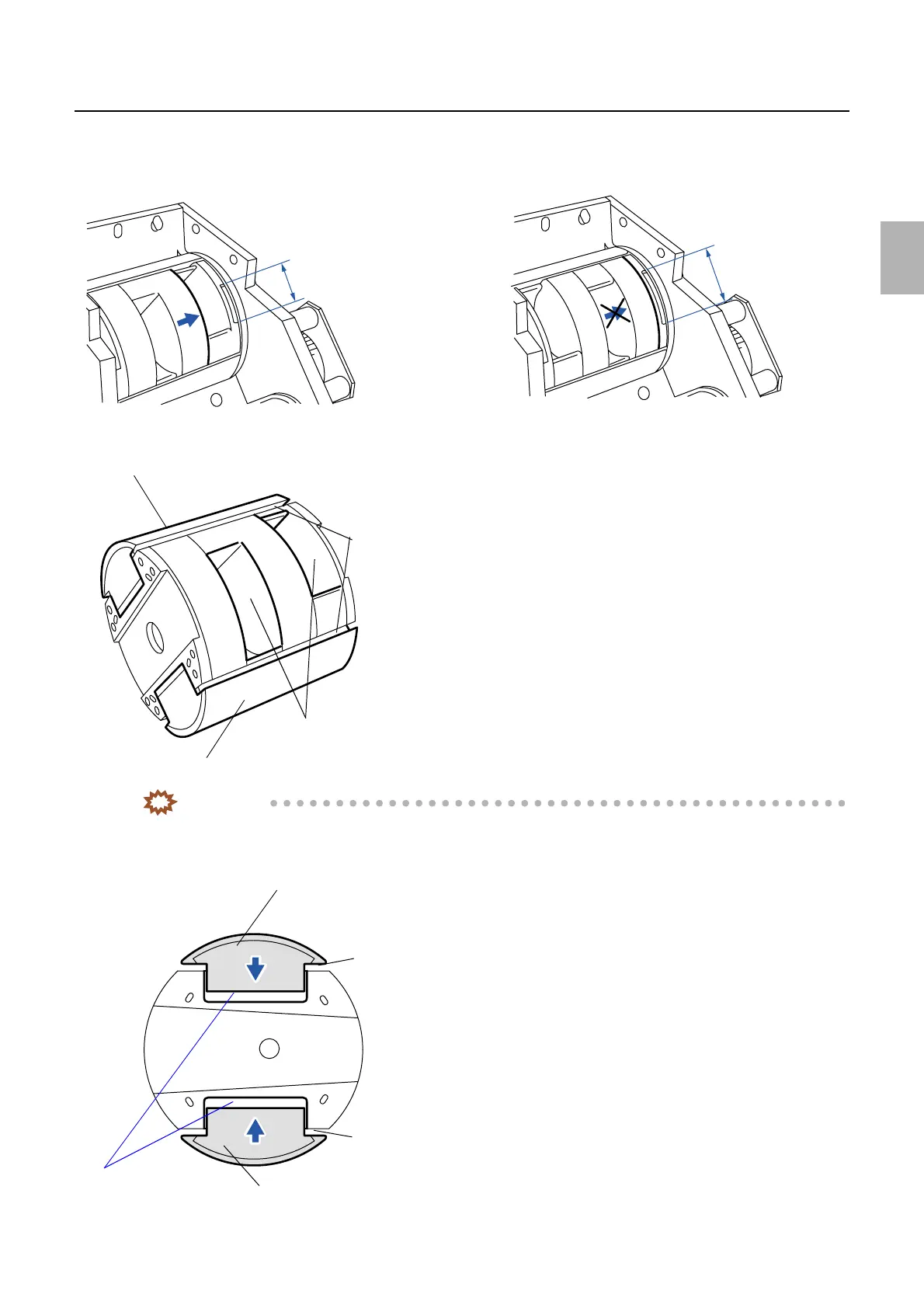

5. Face the right narrow notch of the drum to you and align the center of drum unit's opening with the
center of notch, and pull out the drum to the arrow direction.
6. Clean the space between the tablet drop section and vapor proof blocks.
IMPORTANT
• There is a spring in the space of vapor proof block. Be careful not to damage it when cleaning.
• After cleaning, check that there is no space when the vapor proof block is pushed in the arrow direction.
Narrow
Wide
G050748
Vapor proof block
Tablet drop section
Space
Vapor proof block
G050749
Springs
Vapor proof block
Space
Vapor proof block
Space
G050750
