2. Replacement and adjustment of parts
22100
2/8
22100
Magazine section

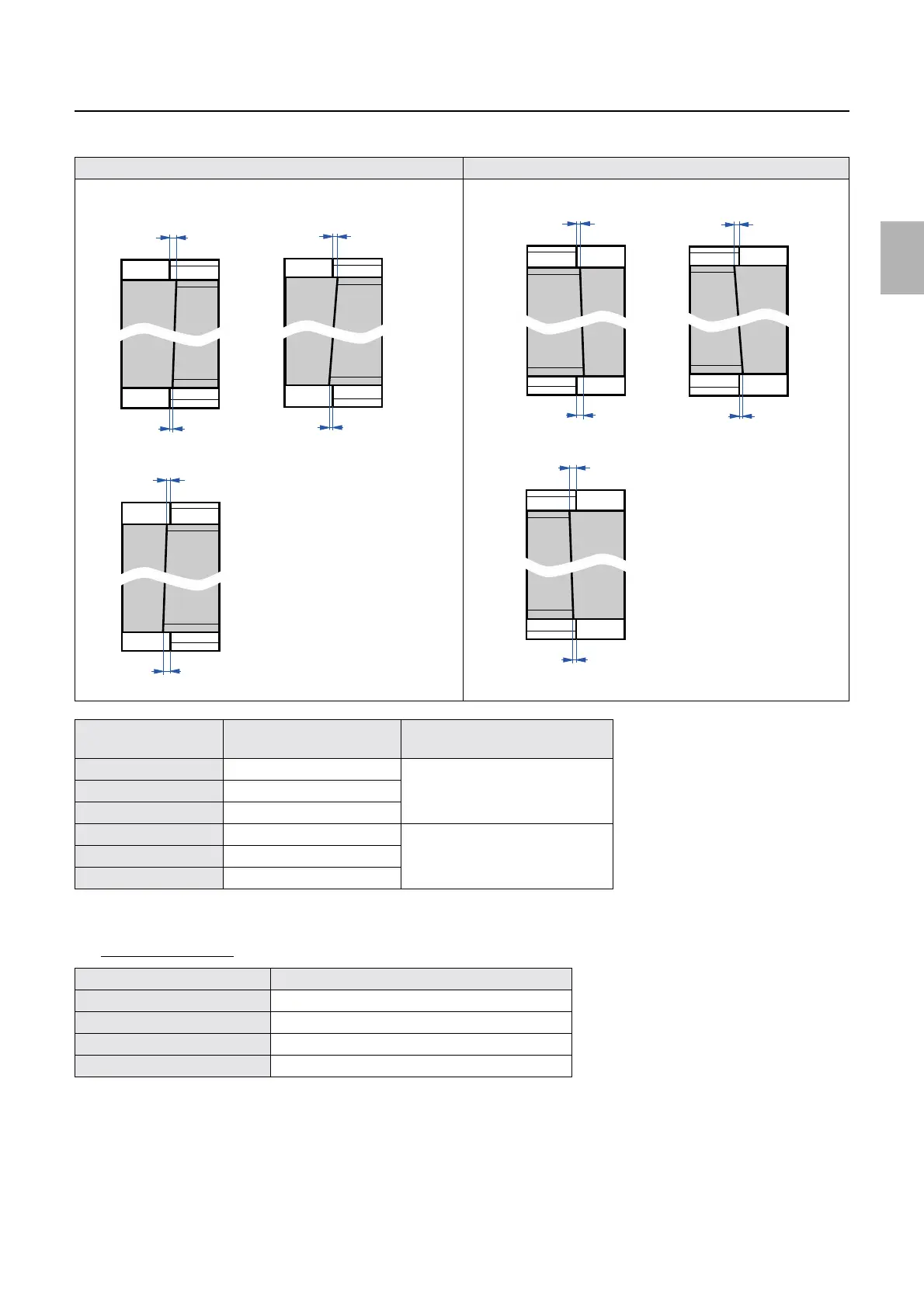

3. Compare with the following patterns, and calculate the amount of zigzagging.
4. If the amount of zigzagging is not within 0.5 mm, position the magazine deck.
For each magazine
The center line of the first print leans to the right. The center line of the first print leans to the left.
Pattern No. Amount of zigzagging Inclination direction of the center
line
P1 A-C Right
P2 A+C
P3 C-A
P4 C-A Left
P5 A+C
P6 A-C
Magazine deck Reference
Magazine deck B ☞Adjusting magazine deck B
Magazine deck C ☞Adjusting magazine deck C
Magazine deck A ☞Adjusting magazine deck A
Magazine deck A2 ☞26820
A
C
A
A
C
C
P1
P2
P3
C
A
A
A
C
C
P4
P5
P6
