7/8
2. Replacement and adjustment of parts
22100
22100
Magazine section
!
!!

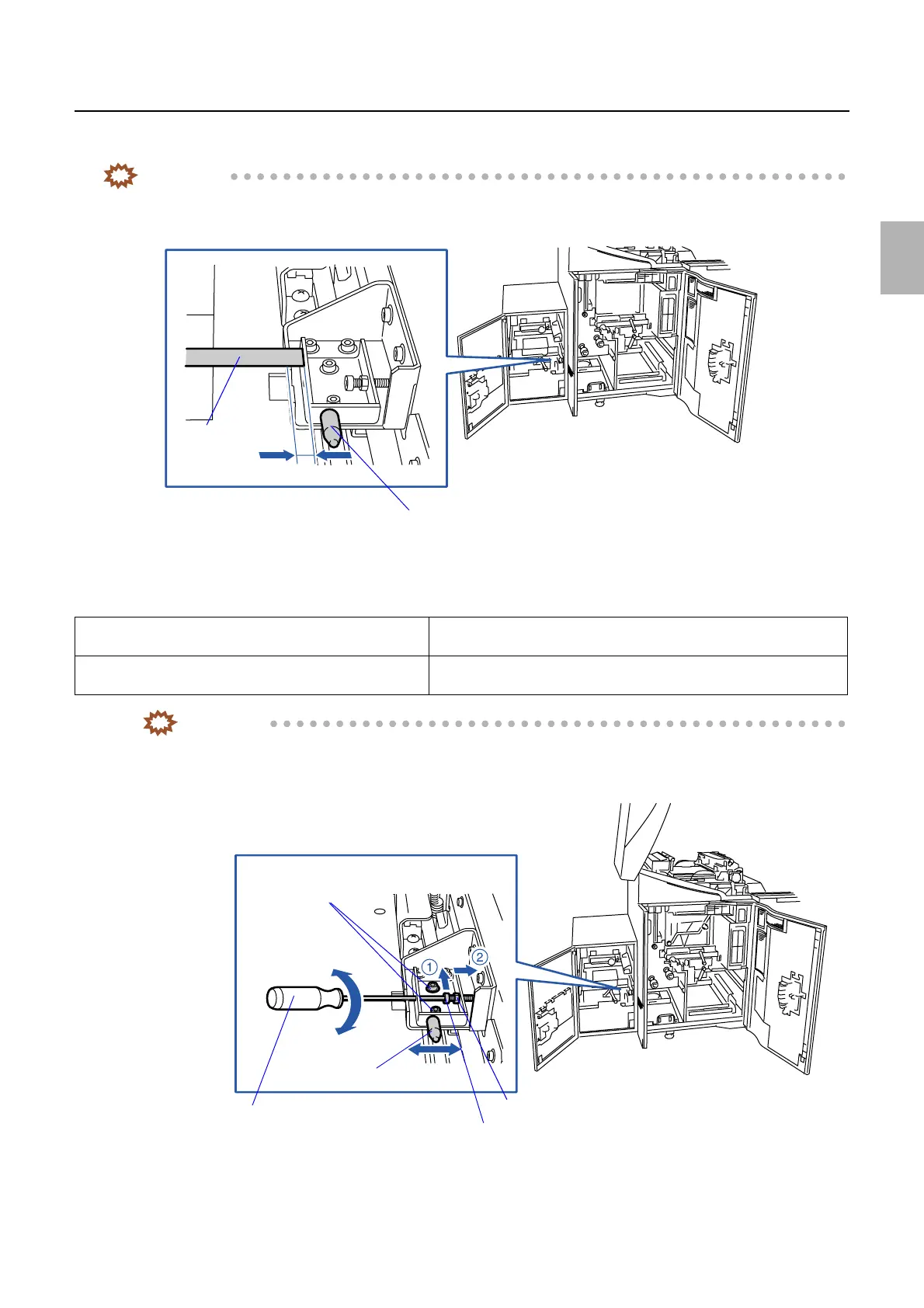

! Adjusting magazine deck A
IMPORTANT
• Measure the dimension shown below before adjusting the positioning pin for magazine deck A. It will help you to
restore after adjustment of the positioning pin.
1. Loosen the fixing screw on the positioning pin for magazine deck A. (Loosen two fixing screws.)
2. Adjust the positioning pin for magazine deck A. (One adjusting screw and one nut)
IMPORTANT
• When tightening the fixing screws on the positioning pin, push the pin in the directions indicated by arrows 1
and 2.
• When the adjusting screw is turned 360 degree, the positioning pin moves approximately 0.7 mm.
3. After adjusting the positioning pin, check that positioning pin fits the positioning hole of the magazine
smoothly when removing and attaching magazine A.
If the first test print is misaligned to the right. Step 2 Adjust the positioning pin to the right. (Turn the adjusting screw to the
left.)
If the first test print is misaligned to the left. Step 2 Adjust the positioning pin to the left. (Turn the adjusting screw to the
right.)
Measure here.
Positioning pin
Ruler
G072373
Hexagonal screwdriver
Fixing screws
Adjusting screw
Positioning pin
Nut
Counterclock
Clockwise
G090254
