2. Replacement and adjustment of parts
22100
6/8
22100
Magazine section
• When the adjusting screw is turned 360 degree, the positioning pin moves approximately 0.7 mm.
3. After adjusting the positioning pin, check that positioning pin goes into the positioning hole of the
magazine smoothly when removing and attaching.
4. If the positioning pin is not smoothly inserted into the hole, loosen the screws of magazine deck C.
(three screws)
5. Adjust the position of magazine deck C so that the positioning pin goes into the hole smoothly.
6. Tighten screw(s) on magazine deck C. (three screws)
7. Perform Arm Unit 1 Zigzagging Correction.
☞36060
8. When repeating the zigzagging adjustment of magazine deck C, repeat Step 1 to Step 7.

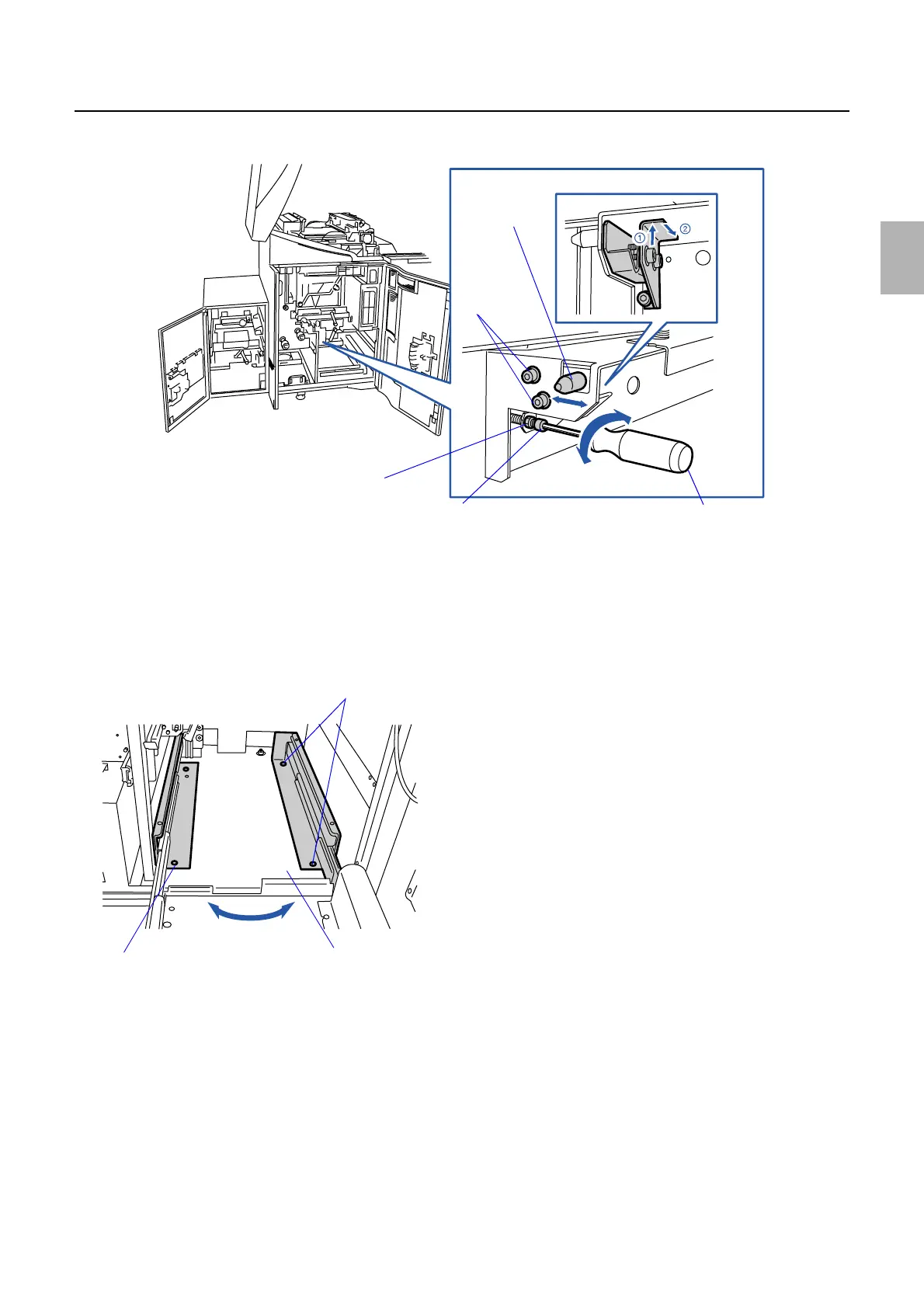

Fixing screws
Nut
Adjusting
Positioning pin
Hexagonal screwdriver
Counterclock
Clockwise
G072376
Magazine deck C
Screws
Screw
G072377
