2. Replacement and adjustment of parts
26550
2/3
26550

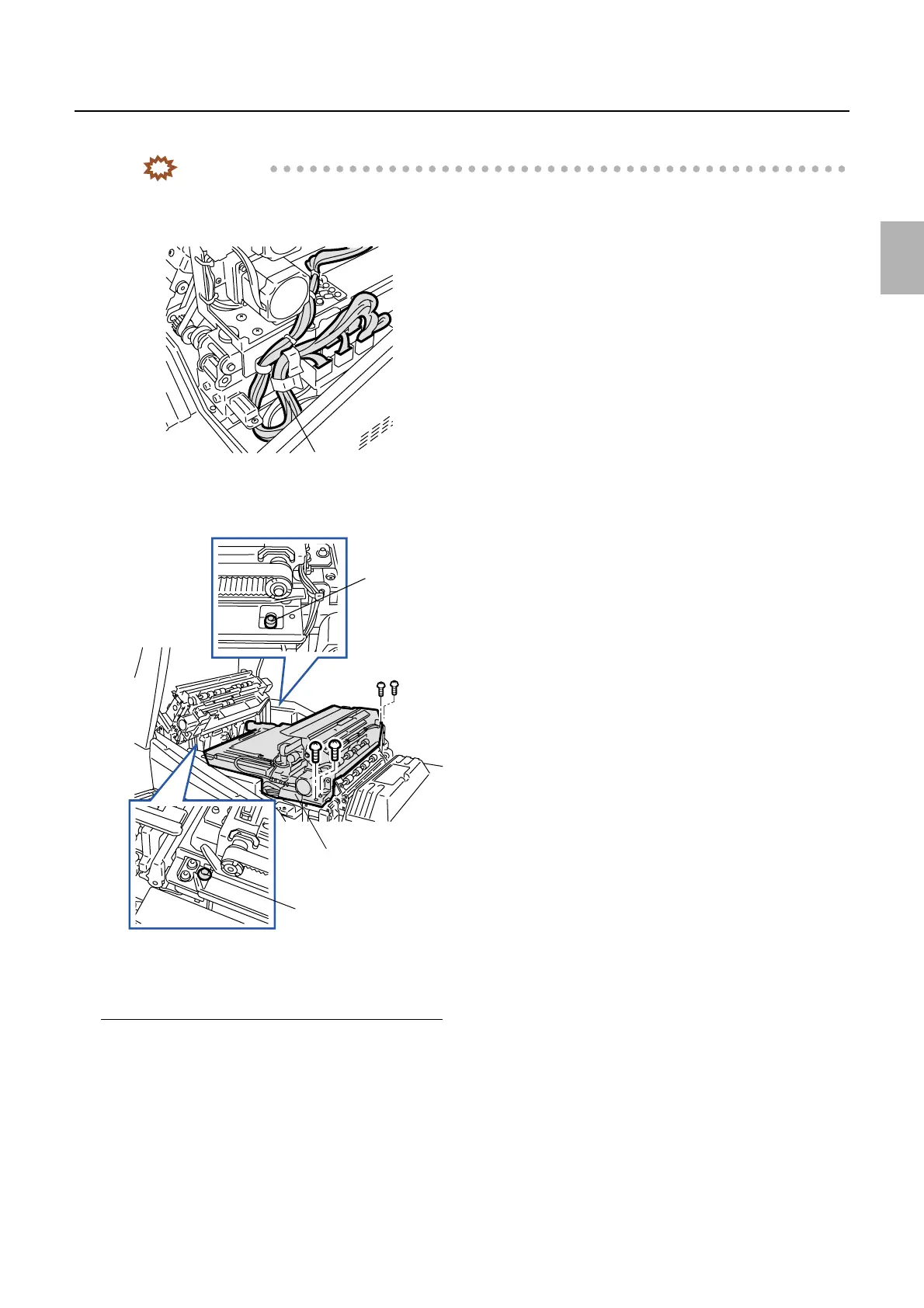

Paper advance unit 2
2. Attach the connector(s) on paper advance unit 2. (Six relay connectors)
IMPORTANT
• Perform wiring on paper advance unit 2 as shown below.
• Check that any cables are not pinched or any extra pressure is not on wiring in opening and closing paper
advance unit 2.
3. Adjust the position of paper advance unit 2 so that the unit sets on the positioning pin(s) normally. (four
screws)
!
!!
! Adjustment after reattaching
If the removed paper advance unit 2 is reattached
1. It is not necessary to adjust.
Wiring
G068548
Positioning pin
Positioning pin
Paper advance unit 2
G068505
