Frontier LP7700 - Page 110

2. Replacement and adjustment of parts
26570
2/2
26570
Paper advance unit 2

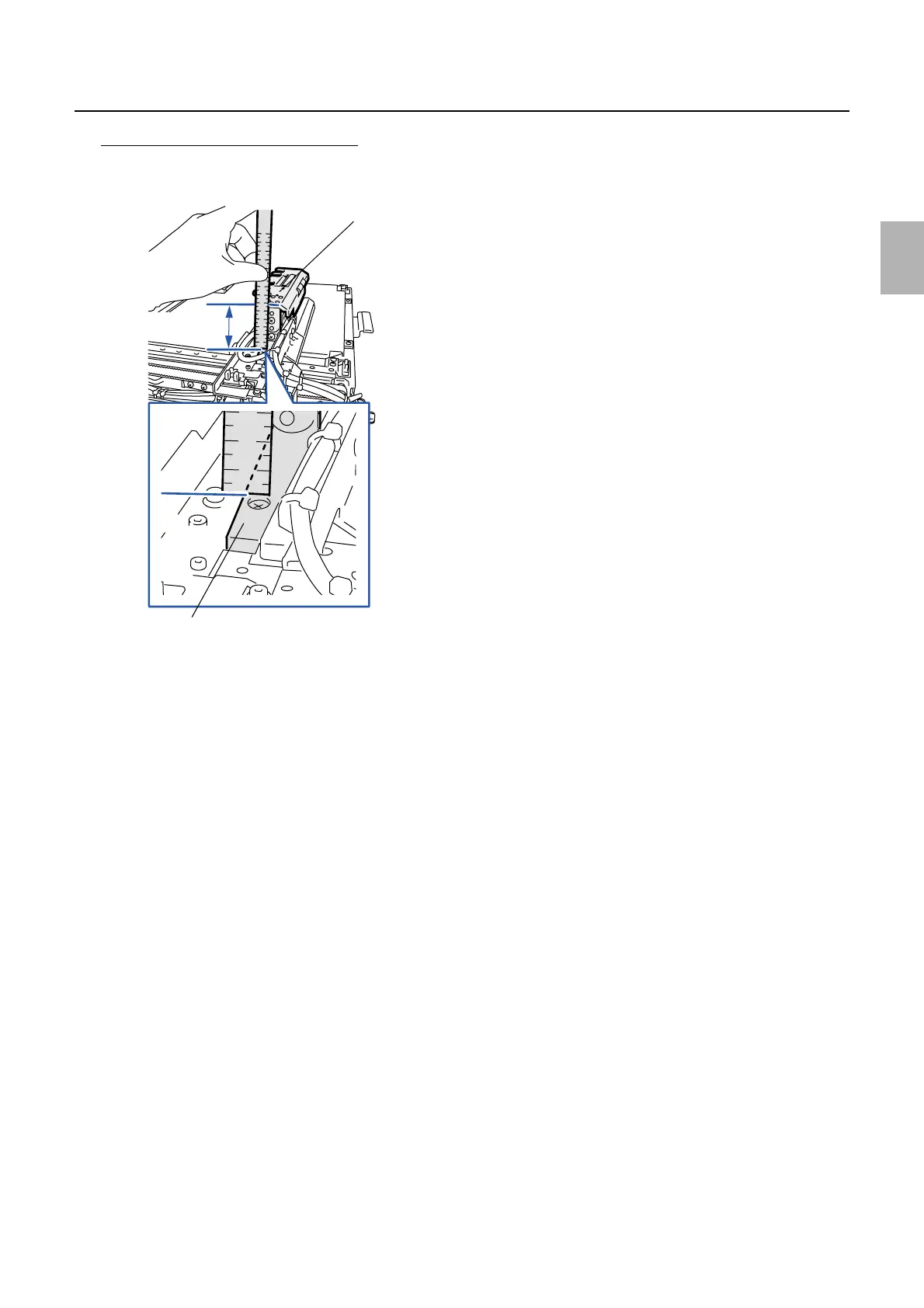

Adjusting the position of the arm (left)
1. Perform adjustment so that the dimension between the lower guide of the arm unit and the rail is
53.9±0.2 mm. (one screw)
!
!!
! Checking after adjustment
1. Test the paper advance.
Lower guide
Rail
53.9±0.2 mm
G069799
