2. Replacement and adjustment of parts
27230
27230

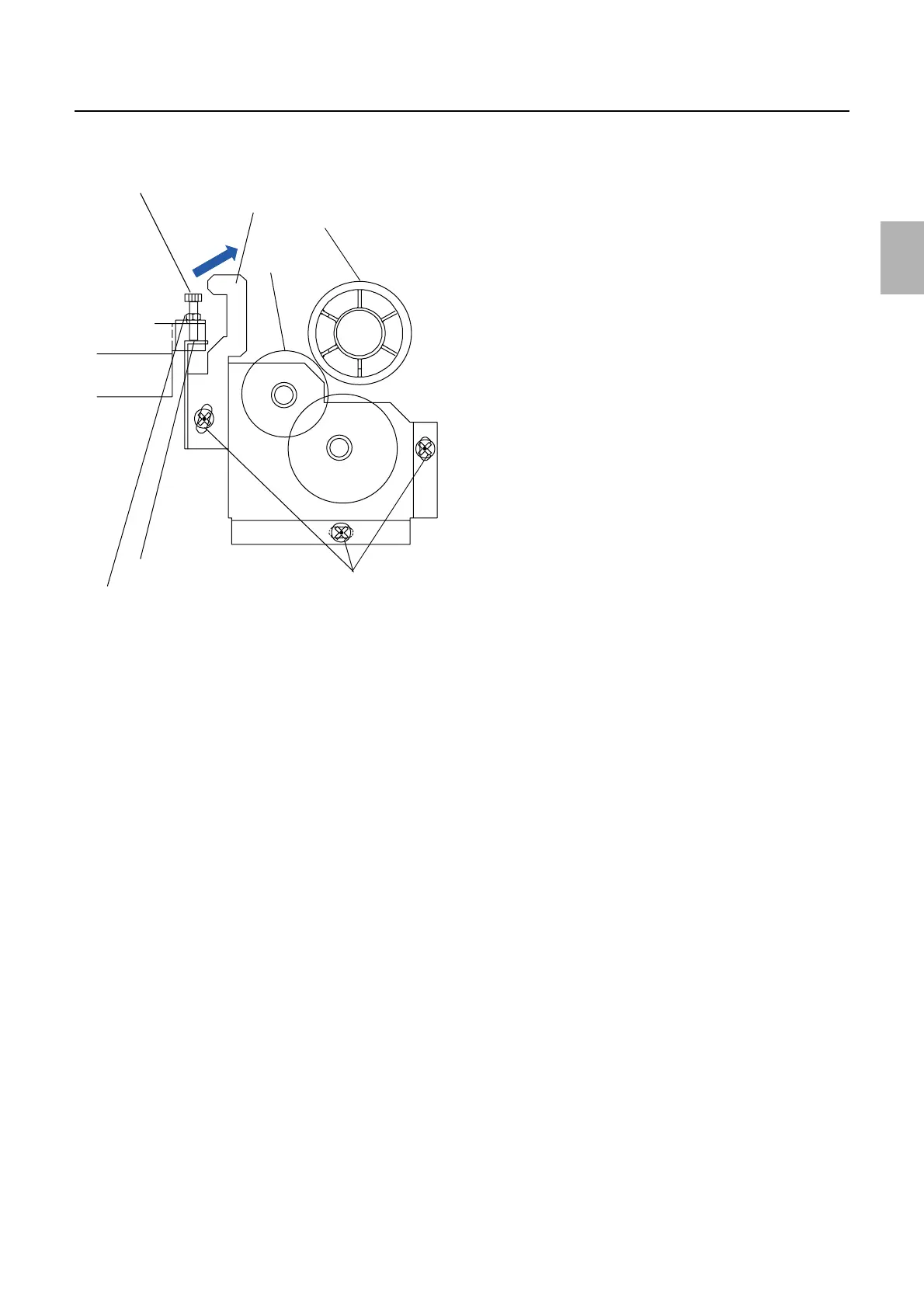

Drive section
6. At the position where the adjusting bolt contacts the plate, make 1.5 counterclockwise turn and tighten
the lock nut.
7. Remove the dryer rack. Attach the plate of the drive unit in contact with the adjusting bolt. (three screws)
8. Attach the dryer rack and the duct.
!
!!
! Checking after adjustment
1.
Make some prints to check if no paper jam or abnormal noise occurs in the dryer rack.
Screws
Lock nut
Gear of the dryer rack
Adjusting bolt
Plate of the drive unit
Plate
Gear A
G069808
