2. Replacement and adjustment of parts
27260
27260
Drive section
6. Adjust the position of the lock plate that secures the dryer rack so that the lock works smoothly when
setting the dryer rack. (two screws)
7. Check the backlash between the gear of the dryer and the gear of the dryer rack.
☞27230
8. After the adjustment, process the prints to check.

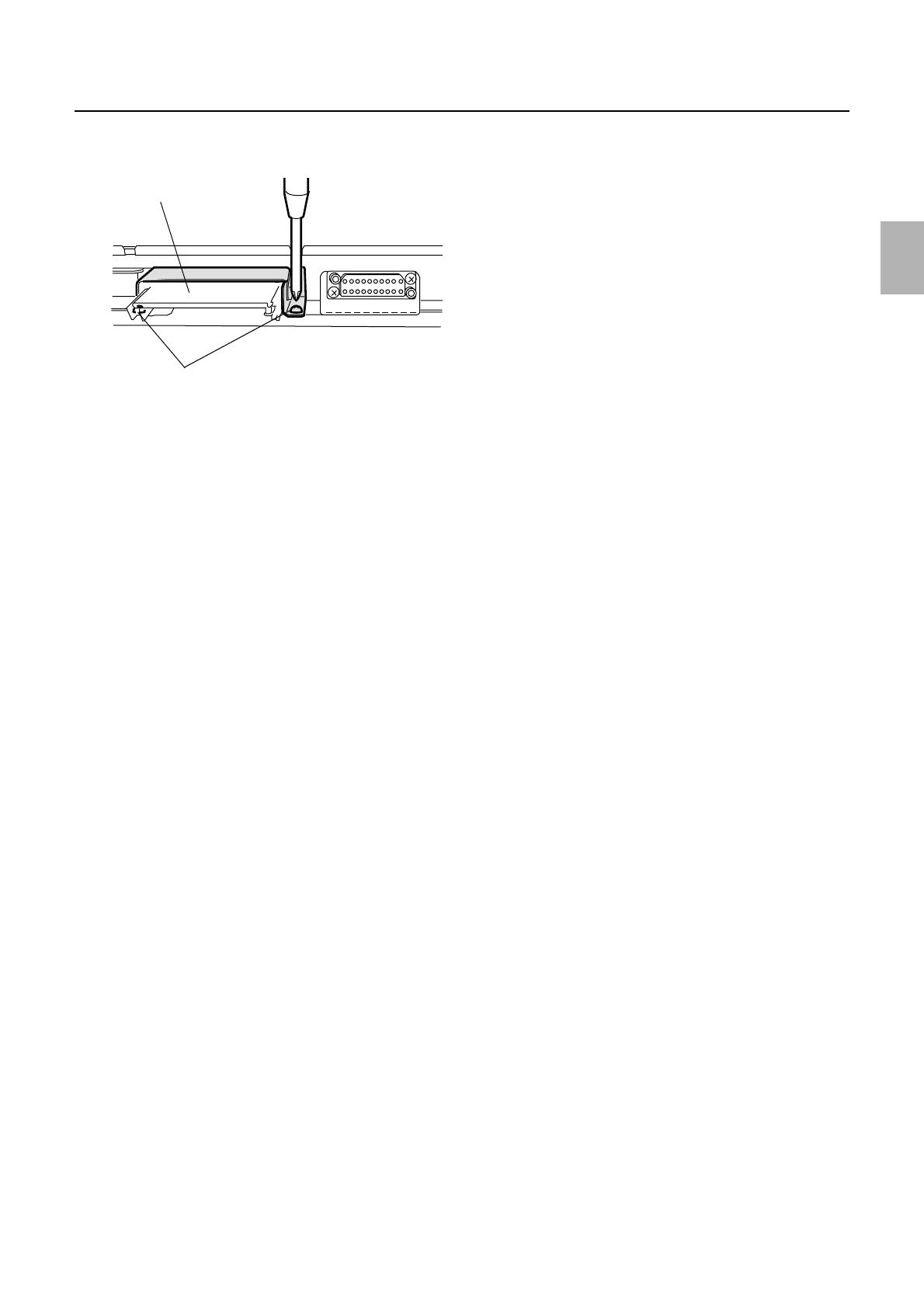

Lock plate
Loosen these screws.
G052781
