2. Replacement and adjustment of parts
27520
27520
F replenishment unit [F]
!
!!
! Adjustment after replacement

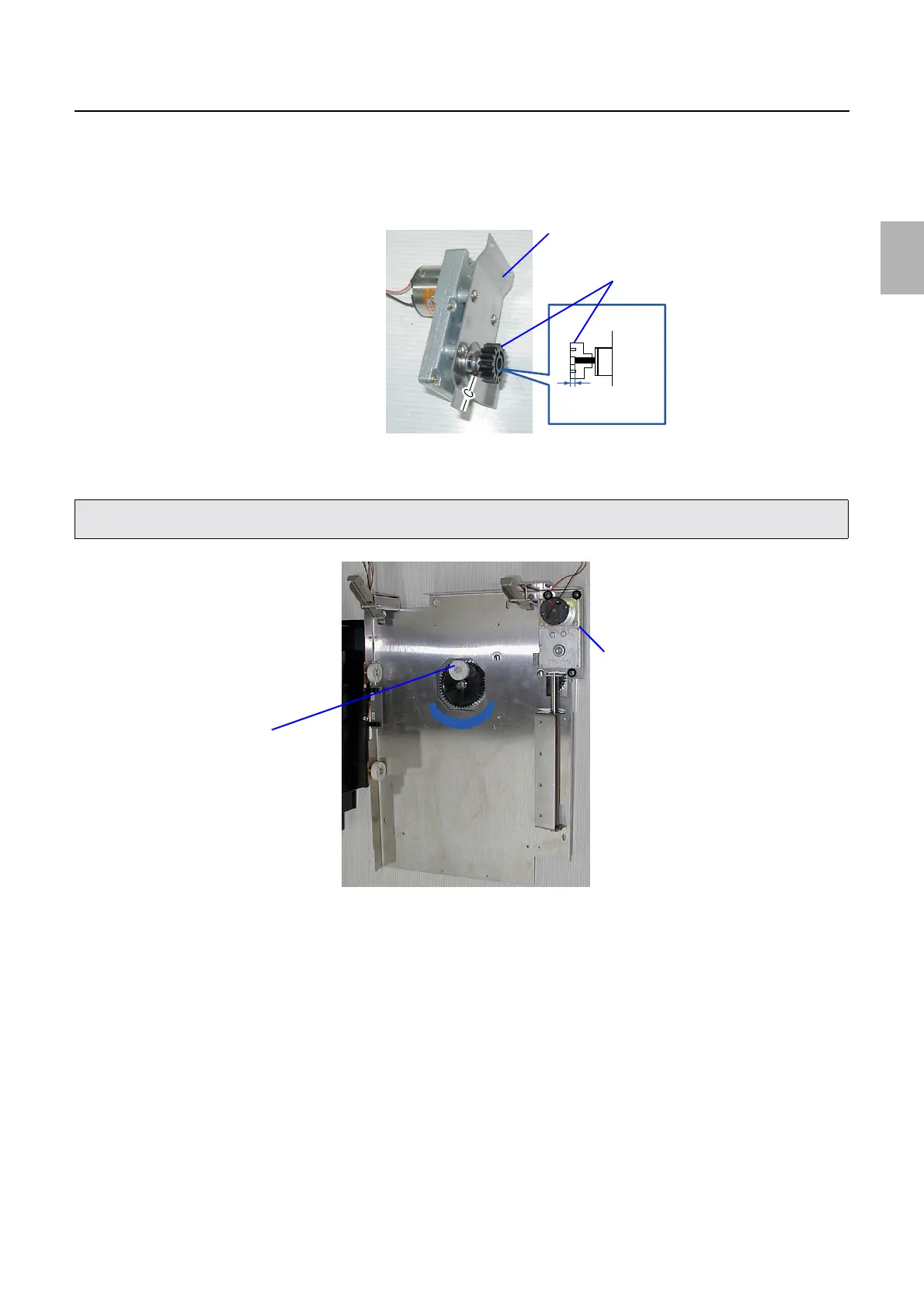

1. Install the gear of the replenishment cartridge opening motor so that the space between the outer
surface of the gear and the edge of the motor axis is 3 mm. (one screw)
2. Install the replenishment cartridge opening motor with the cam remaining at the upper start point. (three
screws)
3. After placing the replenishment cartridge setting section and the F replenishment unit to the original
positions, confirm that the F replenishment unit works normally using the output check.
• If the cam is not adjusted to the upper start point during the replenishment cartridge opening motor, the F replenishment unit may not
be correctly attached to the system.
Plate
Gear
3 mm
G085881
Replenishment cartridge opening
motor
Cam (upper start
point)
G085880
