2. Replacement and adjustment of parts
20020
6/7
20020

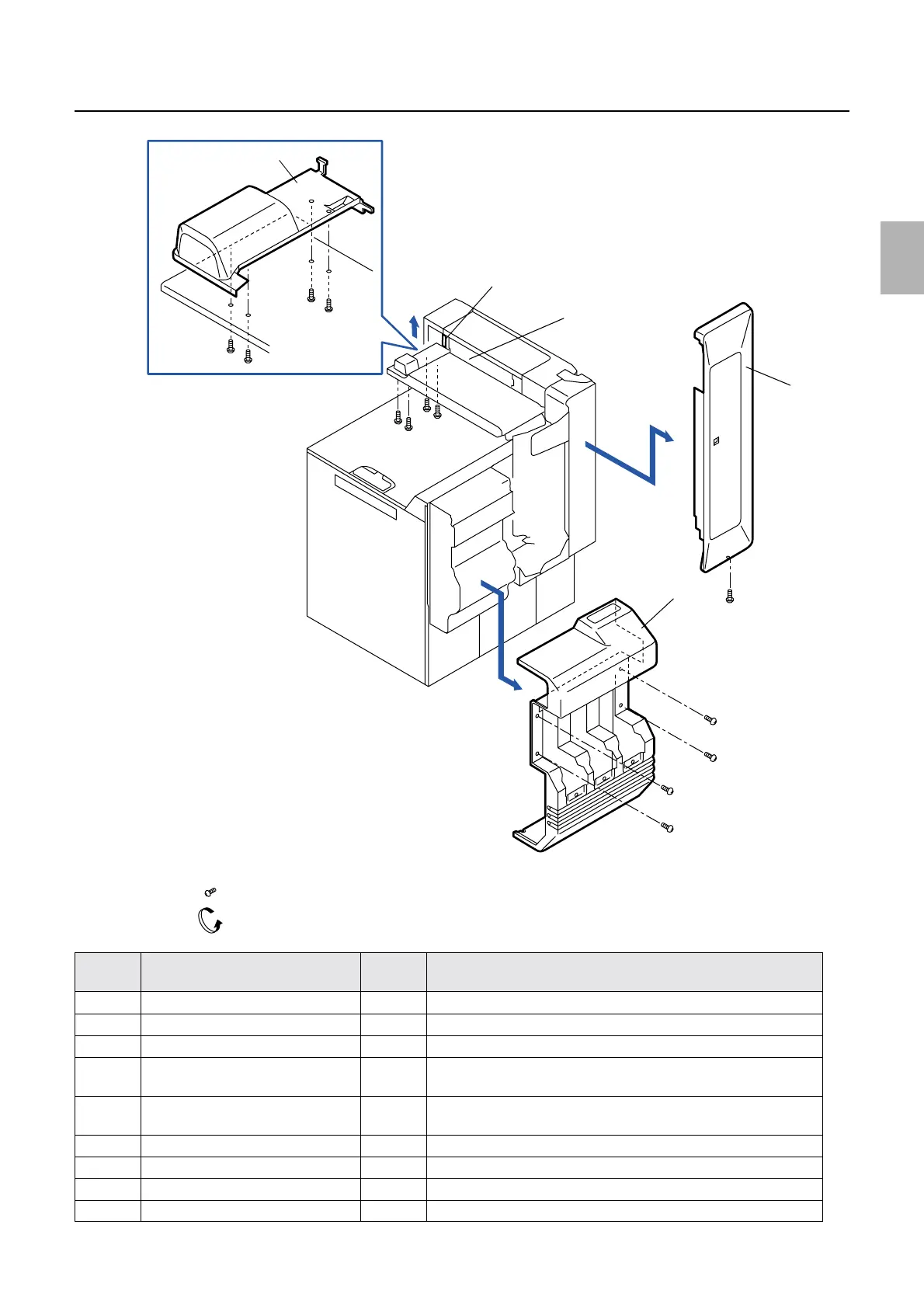

Removing covers
No. Name Screw
(Q'ty)
Remarks
1 Processor cover 1 4
2 Sub-tank top cover -
3 Processor rear cover 2
4 Processor door 1 2 Remove this after removing the mounting plate of the processor door
1.
5 Processor door 2 2 Remove this after removing the mounting plate of the processor door
2.
6 Processor cover 4 6
7 Processor drive cover 4
8 Conveyor damper cover 2
9 Angle bracket cover -
13
12
14
Remove screws with this mark.
Loosen screws with this mark.
Holder (2)
Conveyor guide
G070019
