Frontier LP7700 - Paper path diagram

Paper path diagram
1/1
5. Operation sequence
55000
55000
Paper pa th diagram
Paper path diagram

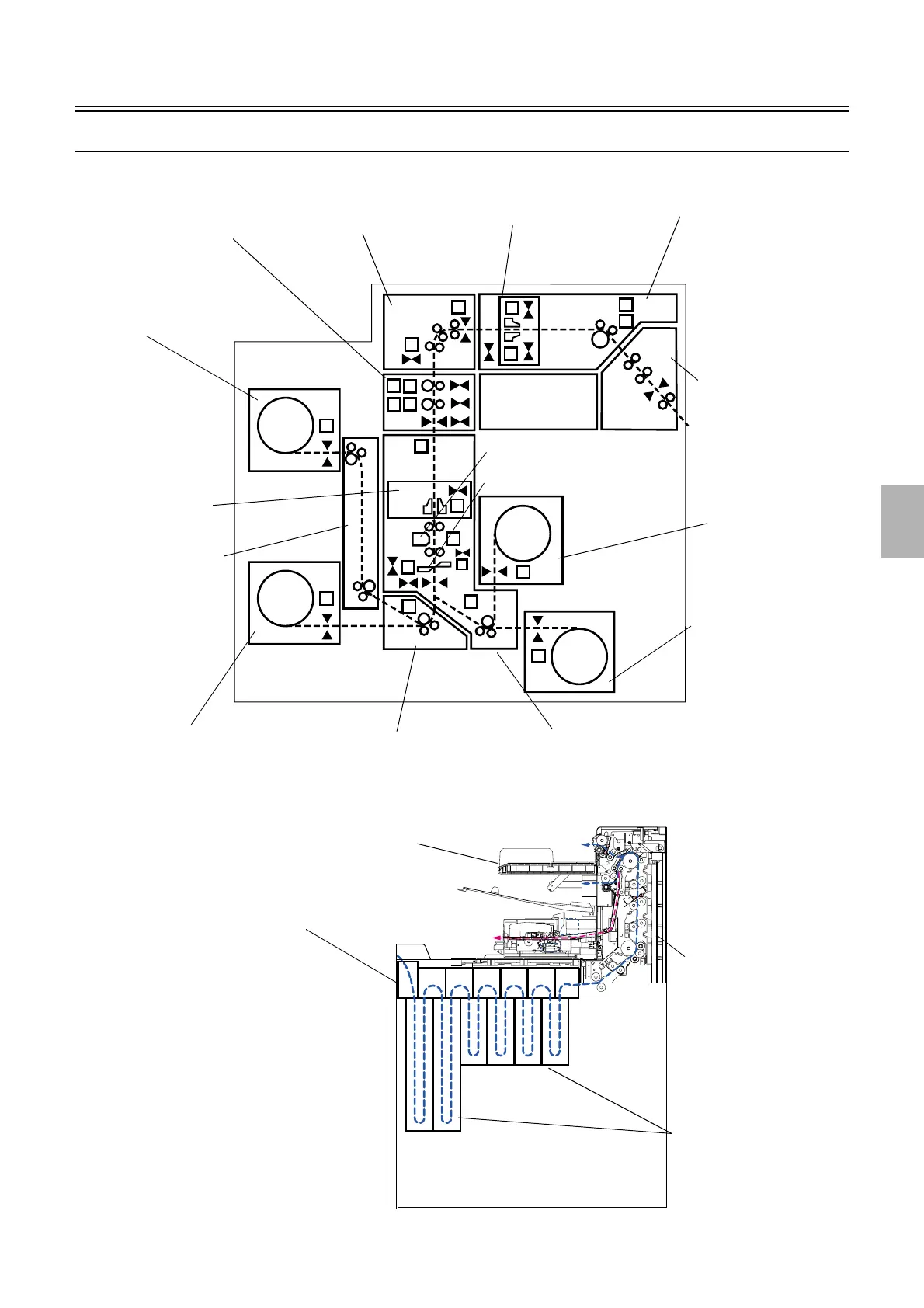

The following diagram shows the paper advance path in the printer by dotted lines.
The following diagram shows the paper advance path in the processor by dotted lines.
Paper magazine C
Paper magazine A
Paper magazine B
Laser unit
Processor loading unit
Paper advance unit 2
Exposure advance unit
Arm unit 1
Paper supply unit
Arm unit 2
CVP unit
Paper cutter unit
Paper advance unit 1
Paper supply unit A
Paper supply unit A2
Paper magazine A2
G068369
Processing tanks and processing
racks
Dryer rack
No. 1 upper guide
Print conveyor unit
G085225
