2/4
5. Operation sequence
55410
55410

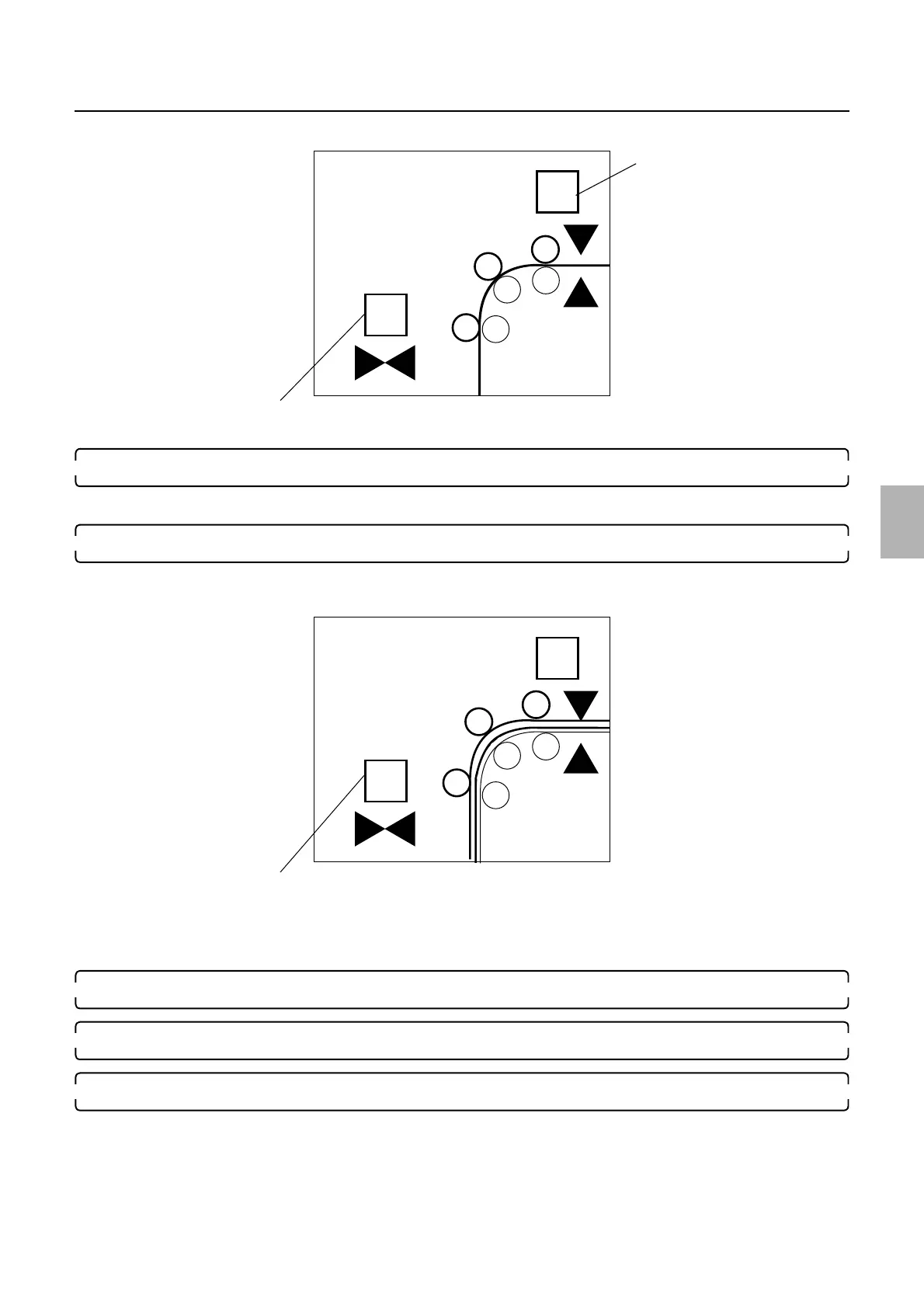

Paper advance operation
6. Paper advance motor 2 stops.
• Paper advance motor 2: OFF
7. Paper advance unit 1 releases the pressure.
• Pressure guide motor: ON (released)/OFF
!
!!
! When the paper advance length is between 457.1 mm and 528.0 mm
1. Paper is advanced to paper advance unit 1.
2. The paper leading end passes 15 mm before the advance inlet roller.
3. Paper advance unit 1 releases the pressure.
• Pressure guide motor: ON (released)/OFF
Paper advance motor 2
Pressure guide motor
G069837
Pressure guide motor
G069838
