2. Replacement and adjustment of parts
25660
2/2
25660
Paper supply unit

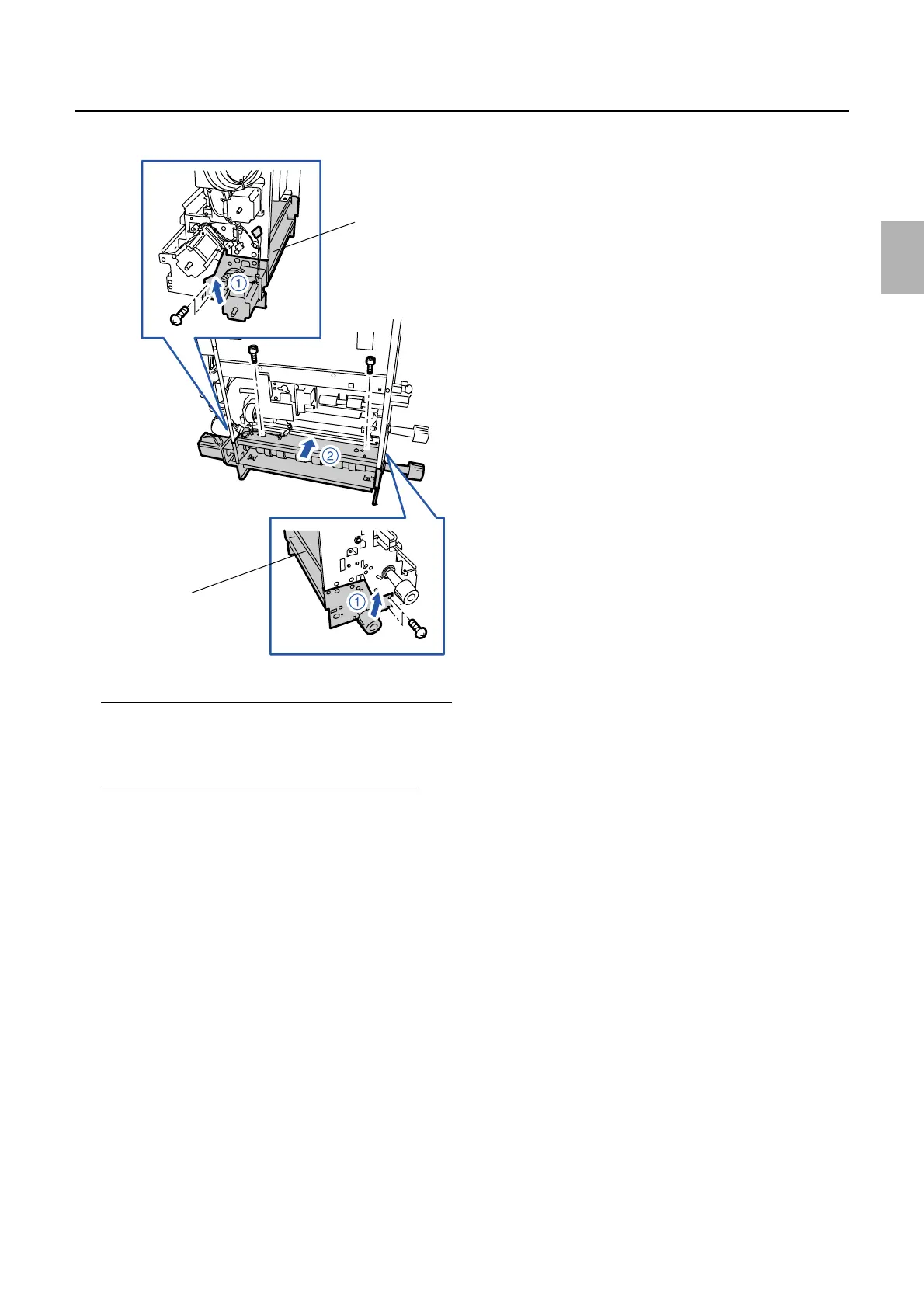

2. Attach paper supply unit A pushing it in the direction indicated by the arrows 1 and 2. (six screws)
When the original paper supply unit A is reattached
1. Check the adjustment of Arm Unit 1 Zigzagging Correction → Paper Magazine A.
☞36060
When the new paper supply unit A is attached
1. Adjust Paper Advance Length Correction → Paper Magazine A.
☞36050
2. Check the adjustment of Arm Unit 1 Zigzagging Correction → Paper Magazine A.
☞36060
Paper supply unit A
Paper supply unit A
G068534
