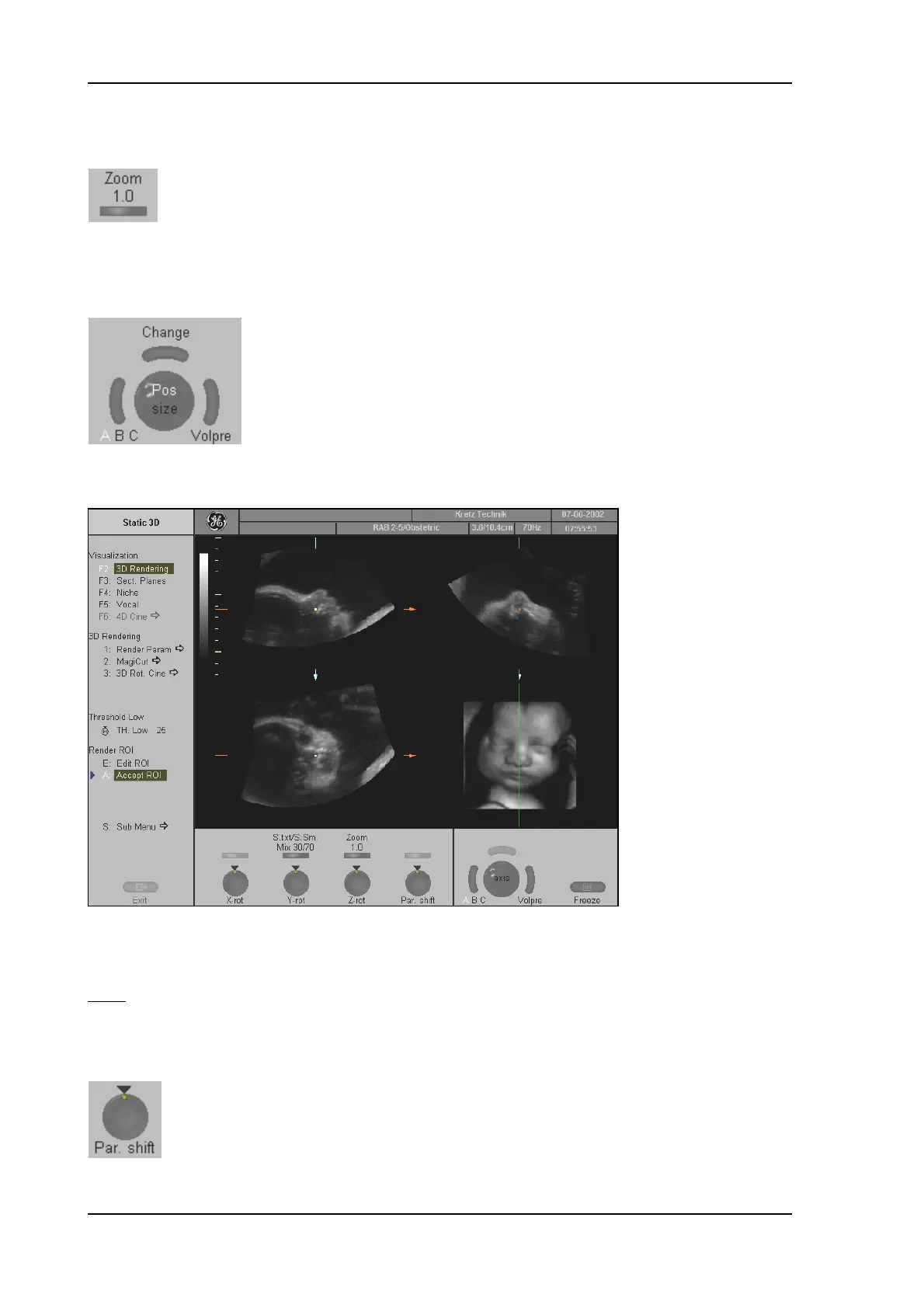

Volume Mode
Adjust the magnification of the rendered 3D image
The 3D image as well as the sectional image can be varied by their aspect ratio.
Select a reference image A, B or C:
The selected reference image is sectional plane A:
The spatial position of plane A in relationship to the displayed 3D image is always vertical and also
normal to the 3D image display. Therefore the trace of image A is indicated by means of a vertical
green
line within the 3D image.
Adjust the position of the green line within the 3D image:
Rotary control [Par. shift] enables a parallel shifting (left/right) of the green line and the
corresponding parallel planes of image A will be displayed automatically.
Voluson
®
730Pro - Basic User Manual
11-36 105831 Rev. 0
