Huawei Quidway S3500 Series User Manual

Operation Manual - Auto Detecting
Quidway S3500 Series Ethernet Switches Chapter 2 Implementations of Auto Detect
Huawei Technologies Proprietary
2-7
II. Network diagram
192.168.1.1
192.168.2.1
192.168.1.2
192.168.2.2 20.1.1.2
10.1.1.3
Ethernet 1/0/1
10.1.1.4
Ethernet 2/0/1
Switch A
Switch B
Switch C
Switch D
192.168.1.1/24
192.168.2.1/24
192.168.1.2/24
192.168.2.2/24 20.1.1.3/24
10.1.1.3/24
Ethernet 1/0/1
10.1.1.4/24
Ethernet 2/0/1
Switch A
Switch B
Switch C
Switch D
VLAN 1
VLAN 2
20.1.1.4/24
192.168.1.1
192.168.2.1
192.168.1.2
192.168.2.2 20.1.1.2
10.1.1.3
Ethernet 1/0/1
10.1.1.4
Ethernet 2/0/1
Switch A
Switch B
Switch C
Switch D
192.168.1.1/24
192.168.2.1/24
192.168.1.2/24
192.168.2.2/24 20.1.1.3/24
10.1.1.3/24
Ethernet 1/0/1
10.1.1.4/24
Ethernet 2/0/1
Switch A
Switch B
Switch C
Switch D
VLAN 1
VLAN 2
20.1.1.4/24

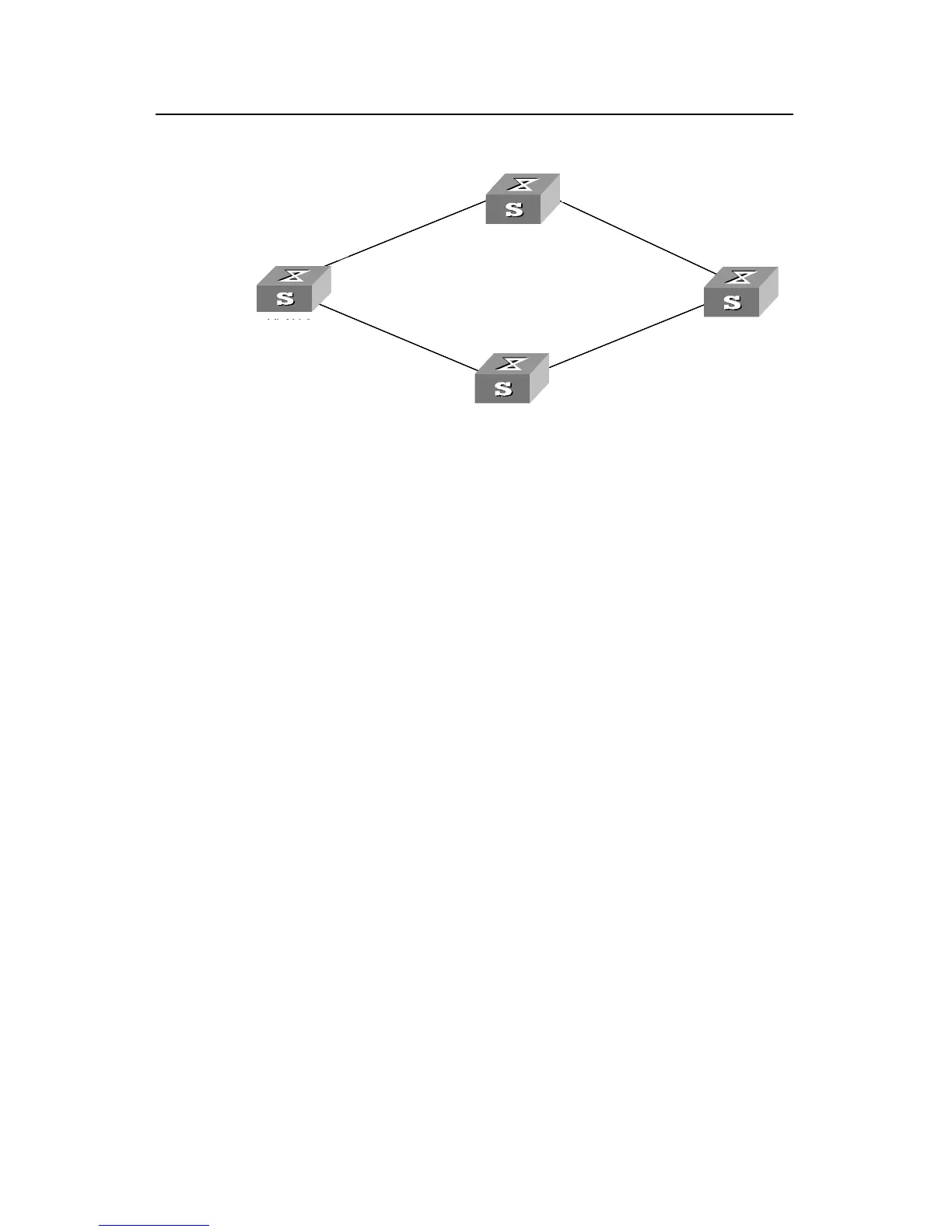

Figure 2-3 Network diagram for VLAN interface backup
III. Configuration procedure
1) Configure Switch C as follows:
# Enter system view.
<Quidway C> system-view
# Configure a static route to VLAN interface 1 on Switch A as the primary route, with an
IP address of 10.1.1.3 as the next hop.
[Quidway C] ip route-static 192.168.1.1 24 10.1.1.3
# Configure a static route to VLAN interface 2 on Switch A as the secondary route, with
an IP address of 20.1.1.3 as the next hop.
[Quidway C] ip route-static 192.168.2.1 24 20.1.1.2
2) Configure switch A as follows:
# Enter system view.
<Quidway A> system-view
# Add Ethernet1/0/1 port to VLAN1.
[Quidway A] vlan 1
[Quidway A-vlan1] port ethernet1/0/1
[Quidway A-vlan1] quit
# Configure an IP address for VLAN interface 1.
[Quidway A] interface vlan-interface 1
[Quidway A-vlan-interface1] ip address 192.168.1.1 24
# Add Ethernet2/0/1 port to VLAN2.
[Quidway A] vlan 2
[Quidway A-vlan2] port ethernet2/0/1
