Keyence SV Series User Manual

5-27
5-4 Regenerative Resistor Setting
COMMON PARAMETER SETTING
5
- SV Series User’s Manual -
● Winding resistance loss of servo motor

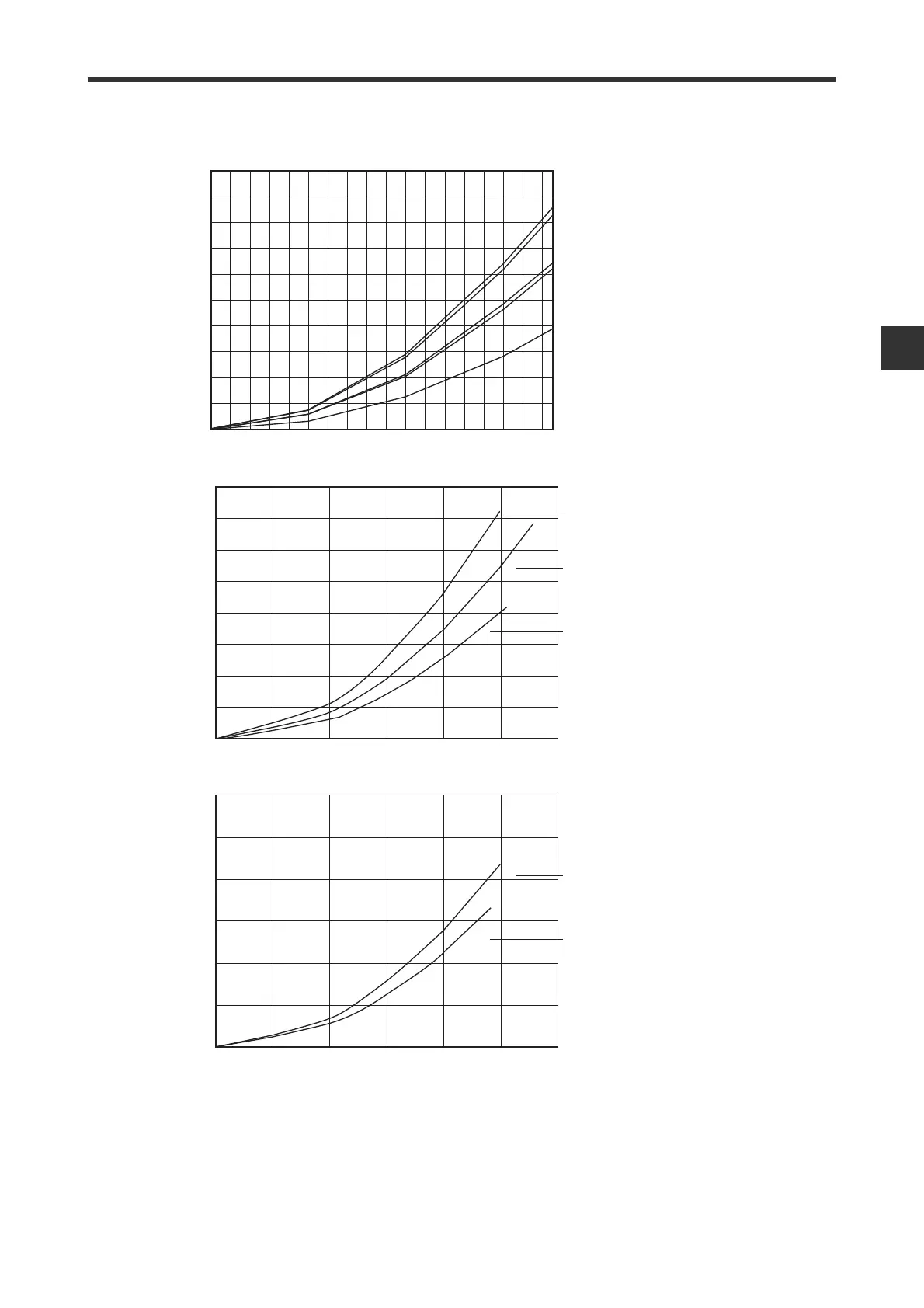

Relationship between torque of servo motor and winding resistance loss is shown below.
0 100 200 300 350
500
450
350
250
150
50
400
300
200
100
0
Torque (%)
SV-ƶ075ƶƶ
SV-ƶ040ƶƶ
SV-ƶ020ƶƶ
SV-ƶ010ƶƶ
SV-ƶ005ƶƶ
Coil impedance loss (W)
0 50 100 150 200 250 300
800
700
600
500
400
300
200
100
0
Torque (%)
Coil impedance loss (W)
SV-ƶ100Aƶ
SV-ƶ150Aƶ
SV-ƶ200Aƶ
0 50 100 150 200 250 300
800
1000
1200
600
400
200
0
Torque (%)
Coil impedance loss (W)
SV-ƶ300Aƶ
SV-ƶ500Aƶ
