Keyence SV Series User Manual

4-30
SIGNALS AND WIRING
4

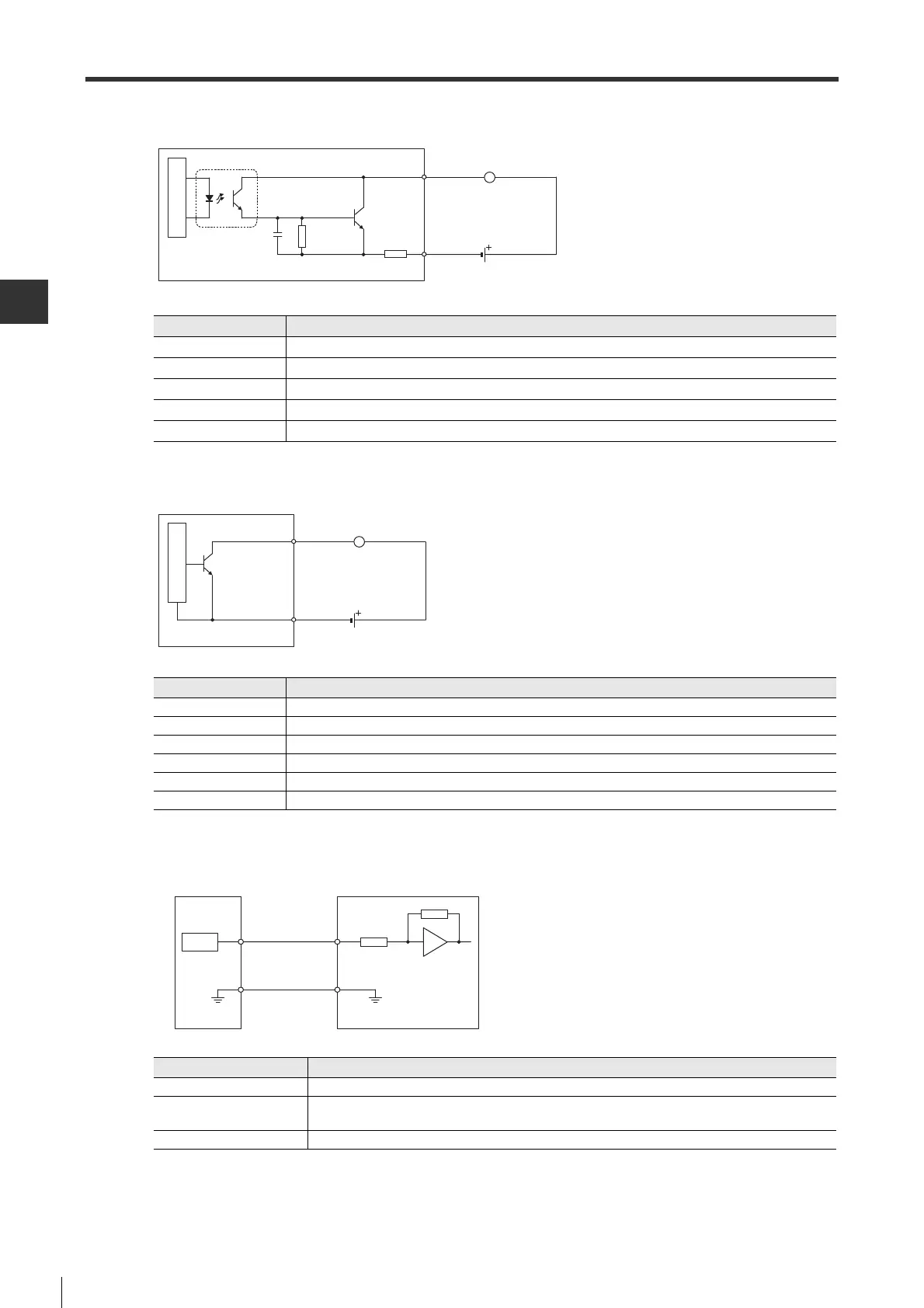

4-5 Wiring I/O Signals
- SV Series User’s Manual -
■ Common output (DO-1)
■ Z-phase open collector output (DO-2)
■ Analog input (AI)
Item Specification
Output mode Open collector output
Rated load DC 30V (30mA)
Leak current at OFF 0.1mA
Residual voltage at ON <= DC1.6V
Common mode Common
Opto-isolation
Internal circuit
3.3kΩ
Fuse
COM1
OUT
L
Item Specification
Output mode Non-isolation open collector output
Rated load DC30V (30mA)
Leak current at OFF 0.1mA
Residual voltage at ON <= DC1.6V
Common mode Non-isolation
Output frequency 50kHz
Non-isolation
Internal circuit
SG
ZOC
L
Item Specification
Input level ±DC12V
Accuracy
±0.02% (V-REF)
±1% (T-REF)
Circuit input filter 30μs (V-REF), 16μs (T-REF)
V-REF
or T-REF
SG
ca. 14kΩ
or more
Higher-level equipment
D/A
