Keyence SV Series User Manual

4-33
4-5 Wiring I/O Signals
SIGNALS AND WIRING
4
- SV Series User’s Manual -

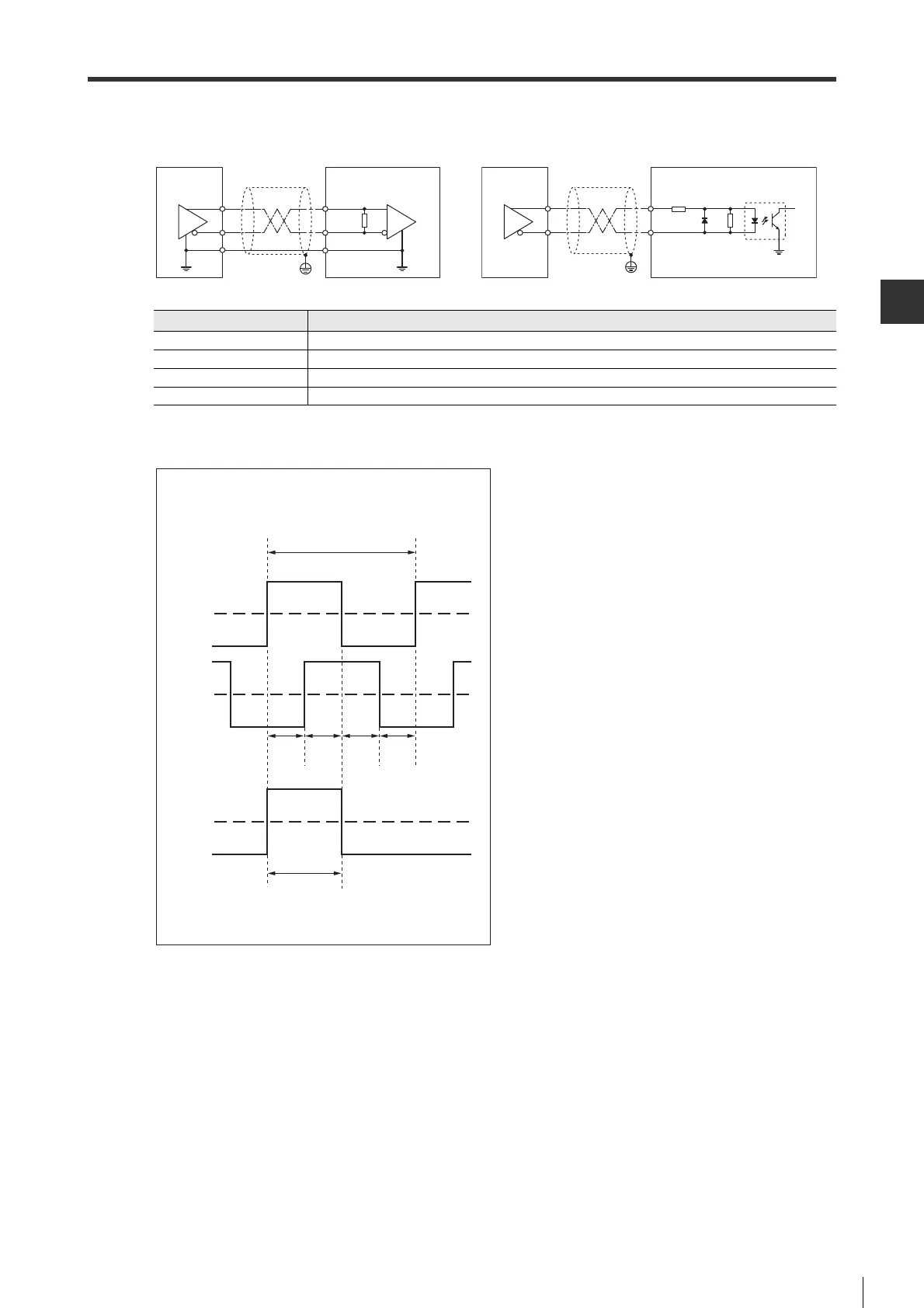

■ Encoder output (DO-E)
<Min. response waveform>
Item Specification
Output mode Differential line driver output
Output voltage AM26C31 or similar
Common mode Independent (non-isolation)
Output frequency 2-phase: 1.6Mpps (Quadruplicated frequency : 6.4MHz)
Higher-level equipment
AM26C31
or similar
A+
B+
Z+
A
-
B -
Z -
SG
A+
B+
Z+
A-
B-
Z-
Opto-isolation
Higher-level equipment
AM26C31
or similar
T : > 550ns
T1, T2, T3, T4 : > 100ns
T5 : > 250ns
Min. response waveform of line driver
ƽPhase difference
ON
A-phase 0V
OFF
B-phase 0V
Z-phase 0V
OFF
OFF
ON
ON
T1 T2 T3 T4
T
T5

Keyence SV Series Specifications

General

Display	LCD
Output Type	Digital, Analog
Power Supply	24V DC
Communication	Ethernet, RS-232, RS-485
Series	SV Series
Programming Language	Ladder Logic
Mounting	Panel mounting
Operating Temperature	0 to +50°C
Storage Temperature	-20 to +60°C
Vibration Resistance	10 to 55 Hz
Shock Resistance	30G
