Repair information 4-13
4024-XXX

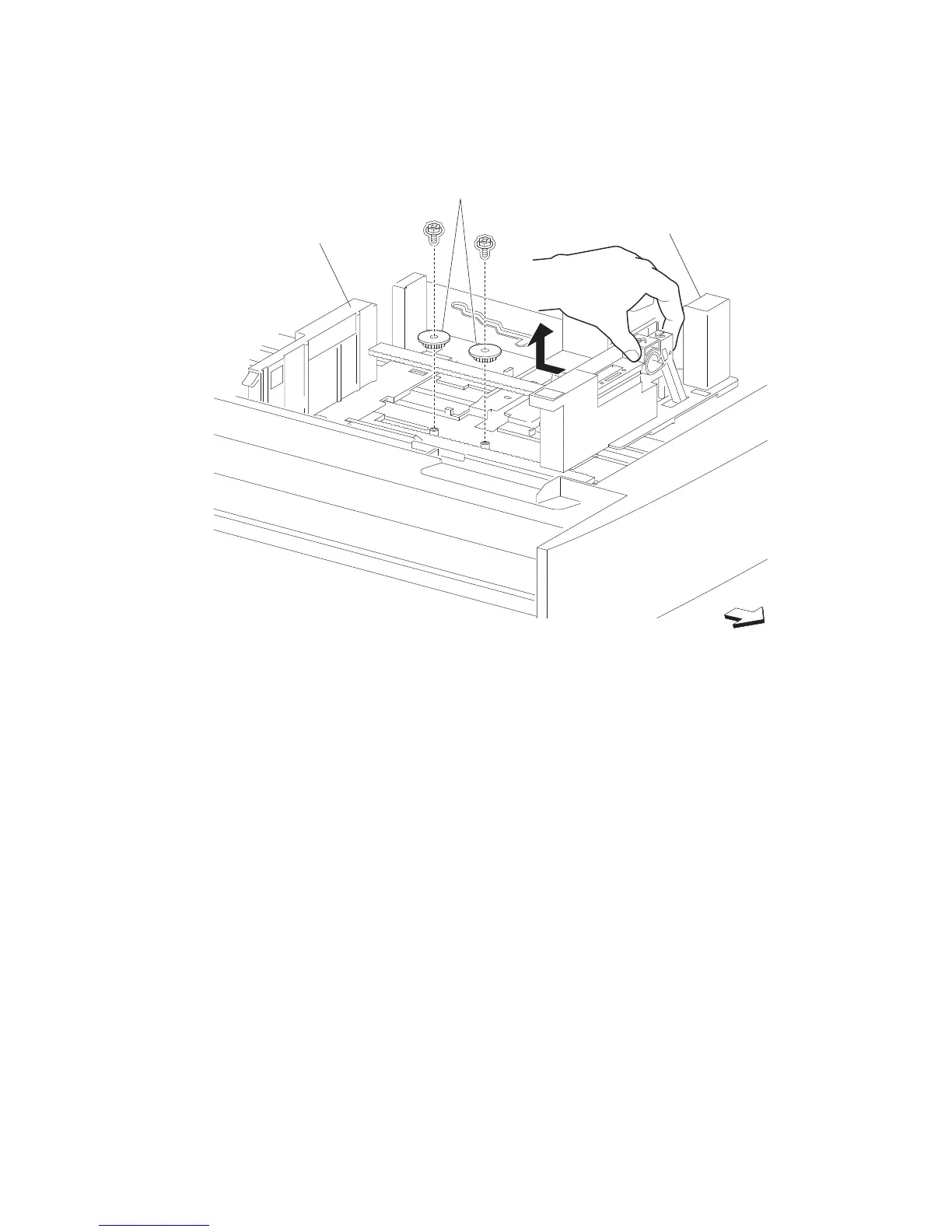

5. Remove the two screws securing the two pinion gears (C) to the media tray.
6. Remove the pinion gears (C).
7. Remove the front media guide assembly (D) and the rear media guide (E).
Note: Before re-installing the pinion gears (C), slide the front media tray guide (D) and the rear media tray guide
(E) to their outward most positions. Ensure the media side guides slide smoothly.
C
D
Front
E
