Lexmark W840 - 2000-Sheet Dual Input (TTM)-Pick Roll Idler Gear 33 Tooth Removal

Repair information 4-107
4024-XXX
2000-sheet dual input (TTM)—pick roll idler gear 33 tooth removal
1. Remove the media tray assembly.
2. Remove the pick roll. See “2000-sheet dual input (TTM)—pick roll removal” on page 4-108.
3. Remove the pick roll drive gear 25 tooth. See “2000-sheet dual input (TTM)—pick roll drive gear 25
tooth removal” on page 4-109.

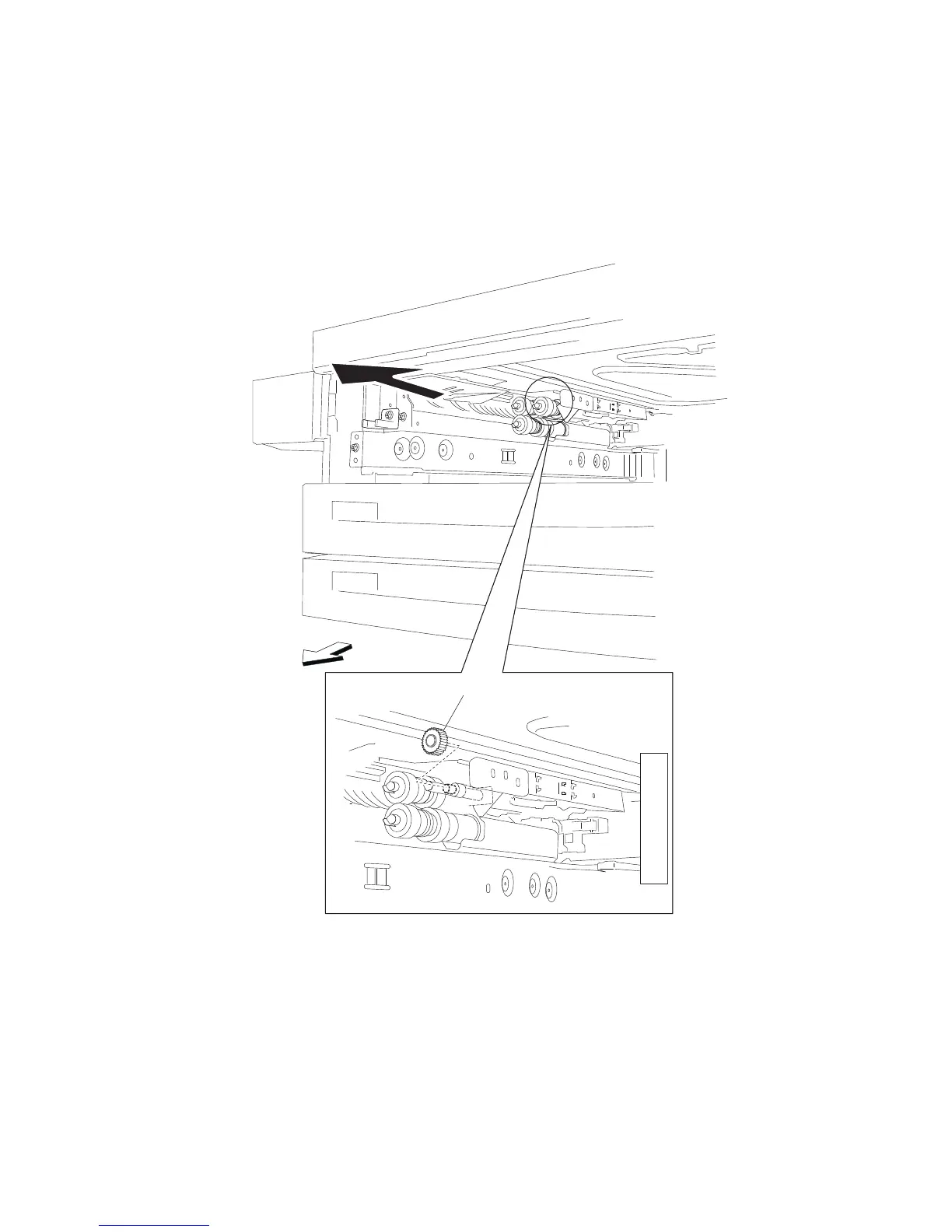

4. Remove the pick roll idler gear 33 tooth (A).
Front
A
