Repair information 4-151
4024-XXX

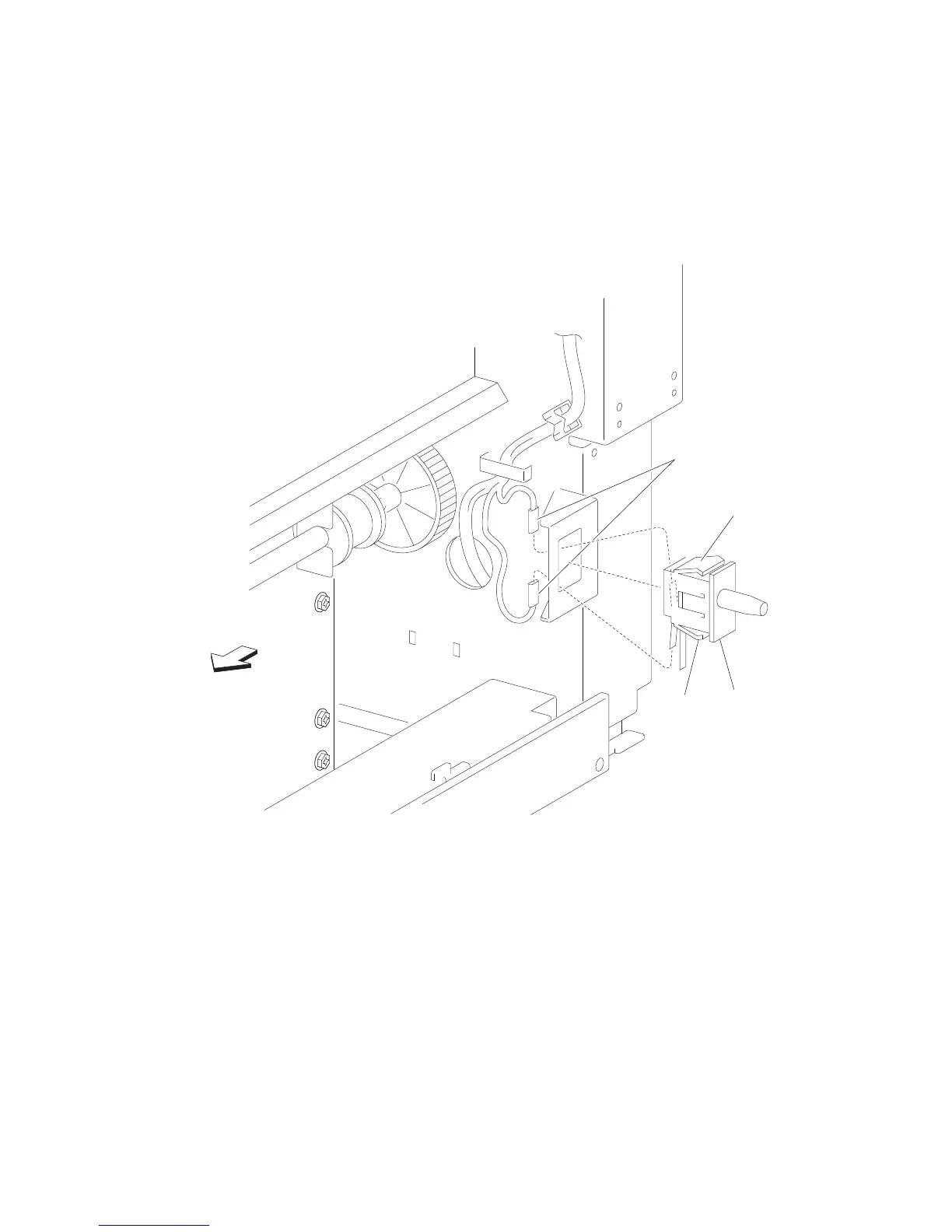

HCF switch (unit docking interlock) removal
1. Remove the HCF right cover. See “HCF right cover removal” on page 4-120.
2. Remove the HCF media tray.
3. Disconnect the connector from the HCF switch (HCF unit docking interlock) (A).
4. Release the hooks securing the HCF switch (HCF unit docking interlock) (A) to the unit.
5. Remove the HCF switch (HCF unit docking interlock) (A).
