Lexmark W840 - 2000-Sheet Dual Input (TTM)-Tray 4 Media Guide Rack and Pinion Removal

Repair information 4-75
4024-XXX
2000-sheet dual input (TTM)—tray 4 media guide rack and pinion removal
1. Remove the tray 4 assembly. See “2000-sheet dual input (TTM)—tray 4 assembly removal” on
page 4-55.

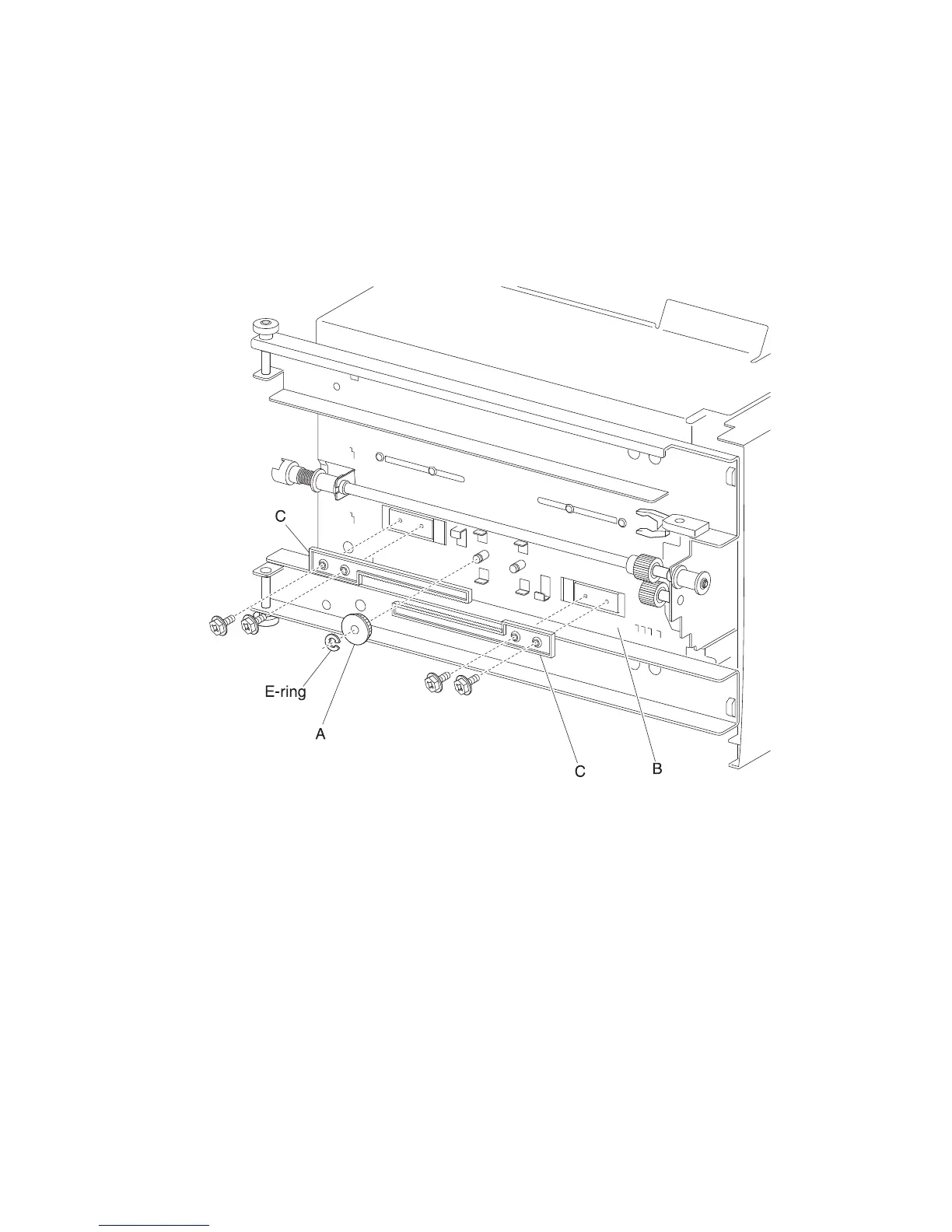

2. Place the tray 4 assembly on its right side, as shown in the figure.
3. Remove the e-clip securing the pinion gear (A) to the frame assembly (B).
4. Remove pinion gear (A).
5. Remove four screws securing the two rack gears (C) to the frame assembly (B).
