Lexmark W840 - 500-Sheet Drawer (2 TM)-Separation Roll Removal

4-32 Options Service Manual
4024-XXX

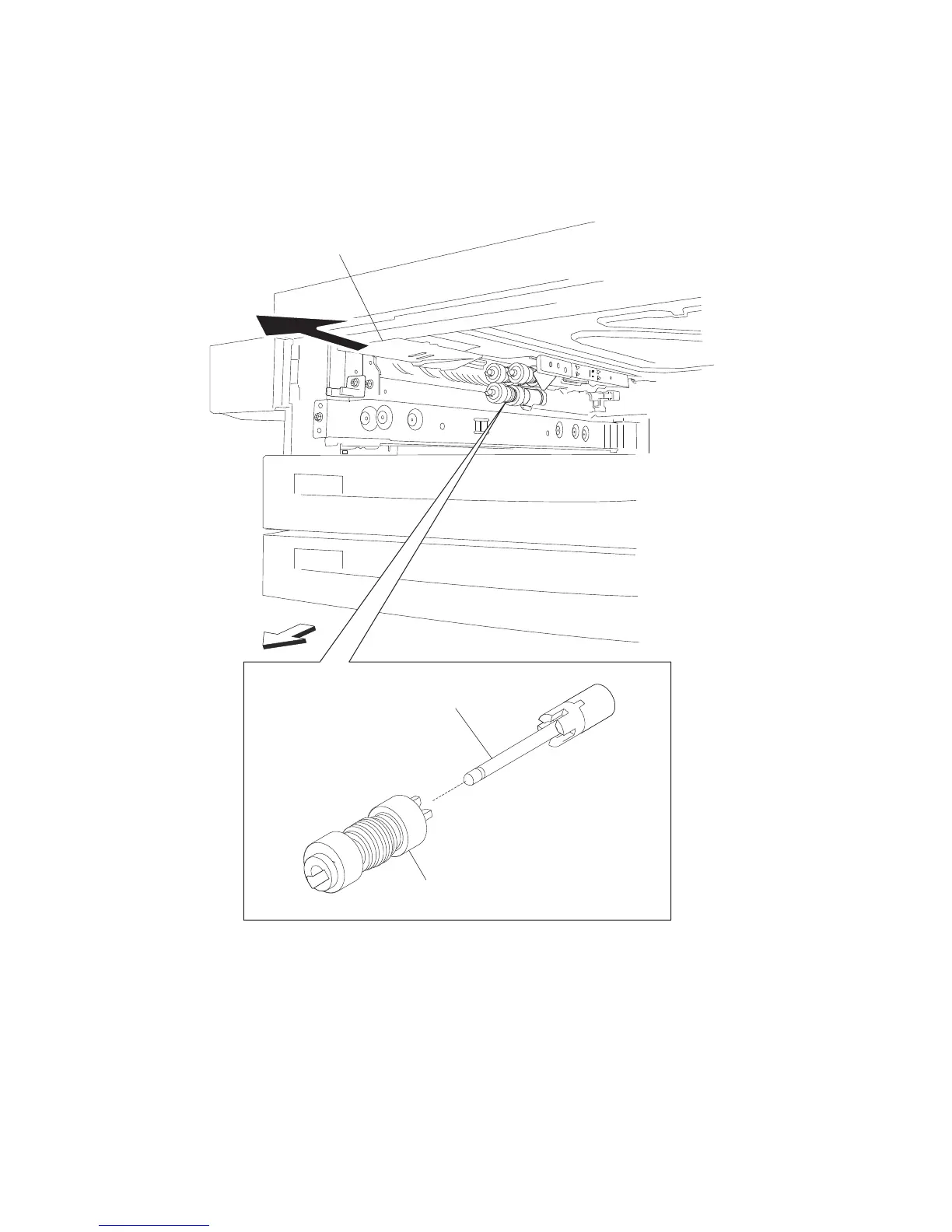

2X 500-sheet drawer (2TM)—separation roll removal
1. Remove the media tray assembly.
2. Move the feed unit front guide (A) in the direction of the arrow.
3. Release the hook securing the separation roll (B) to the shaft (C).
4. Remove the separation roll (B).
Note: Do not touch the rubber surface of the feed roll (B).
Note: Before re-installing, do not touch the rubber surface of the separation roll (B).
A
C
B
Front
