Repair information 4-119
4024-XXX
High capacity feeder (HCF) removals

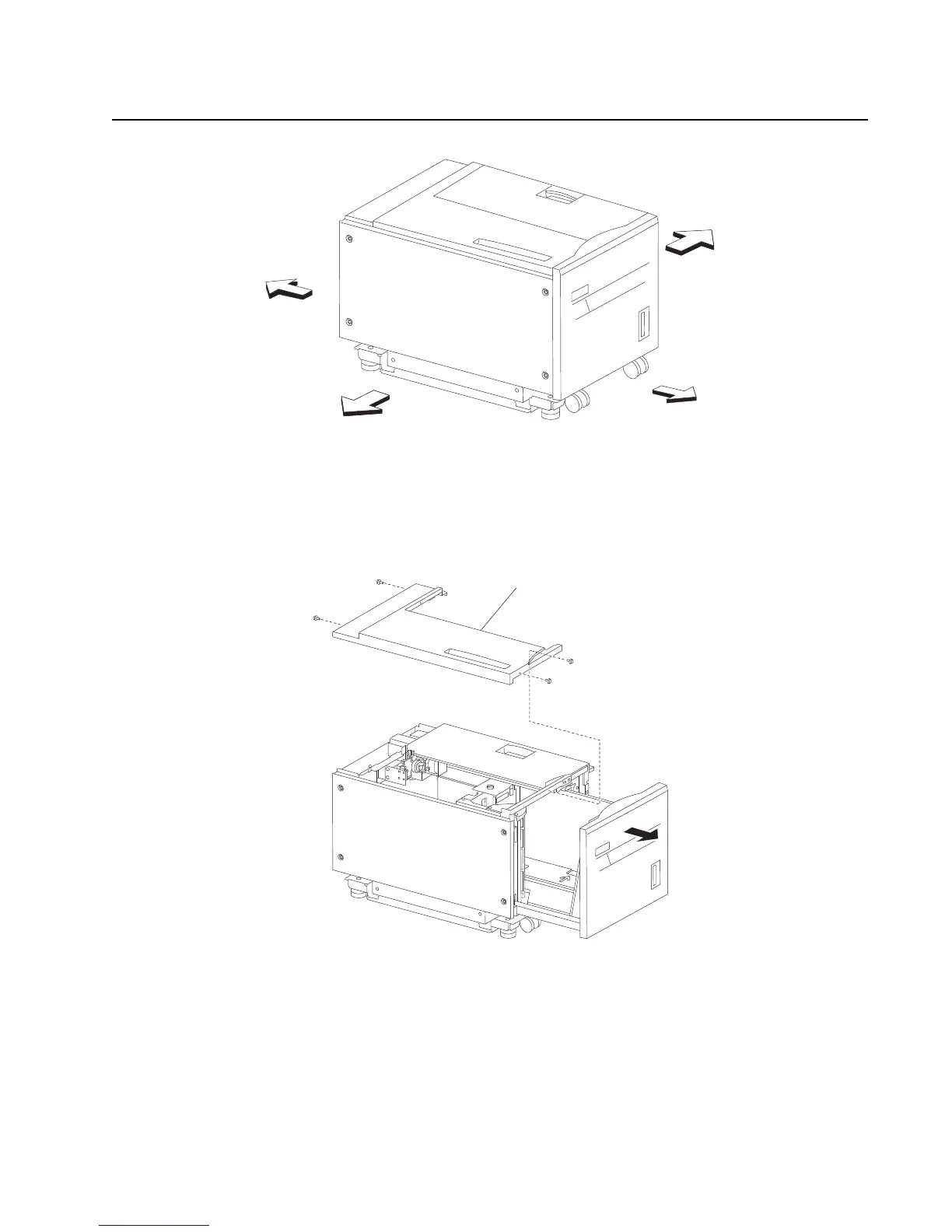

HCF top cover removal
1. Pull out the HCF media tray.
2. Remove the four screws securing the HCF top cover (B).
3. Remove the HCF top cover (B).
Rear
Left
Right
Front
B
