Repair information 4-135
4024-XXX
HCF media tray lift coupling assembly removal
1. Remove the HCF media tray assembly from the printer. See “HCF media tray assembly removal” on
page 4-127.
2. Remove the HCF media feed unit assembly. See “HCF media feed unit assembly removal” on
page 4-132.
3. Remove the HCF feed lift motor. See “HCF feed lift motor removal” on page 4-132.

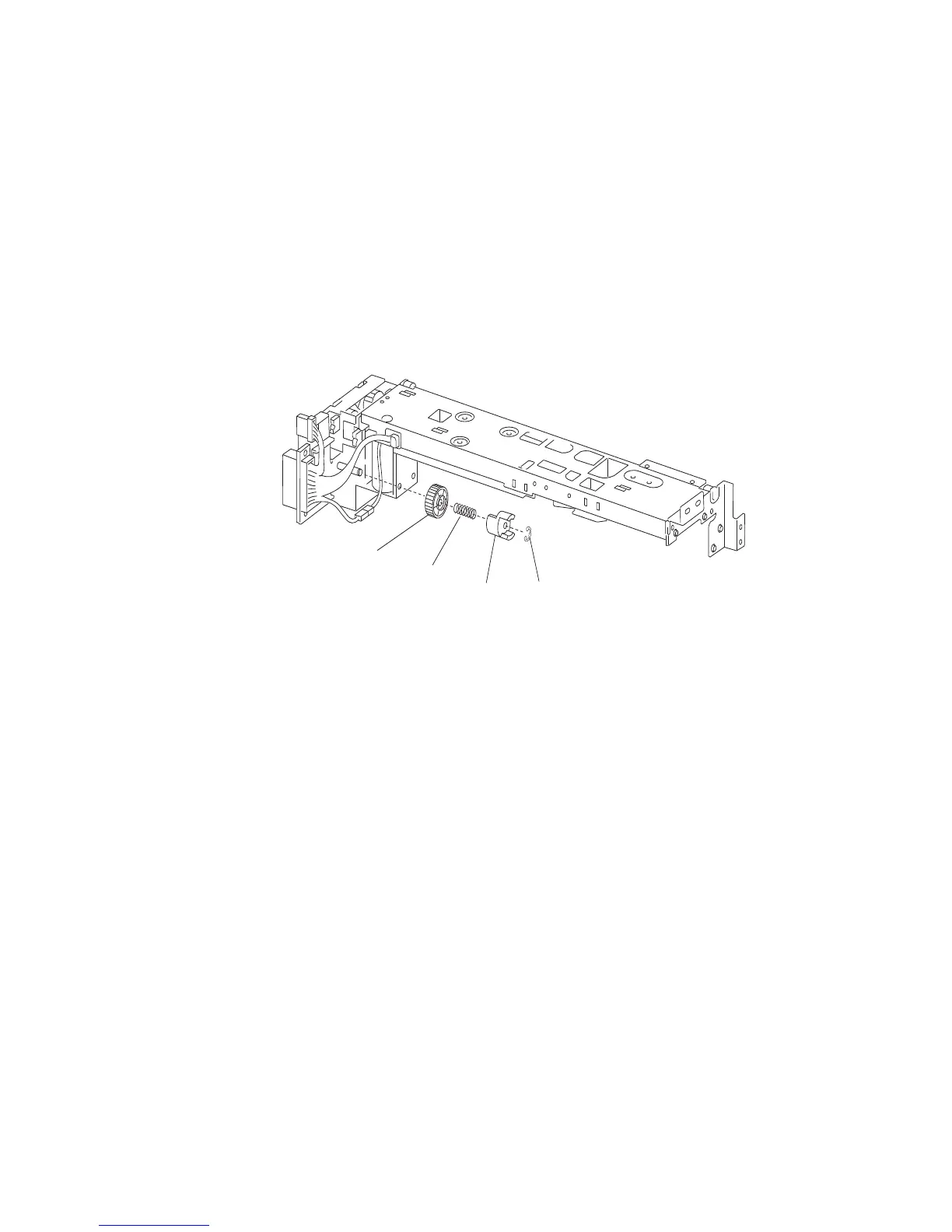

4. Remove the e-clip with a prying tool securing the HCF tray lift coupling (D) to the HCF media feed unit
assembly.
5. Remove the HCF tray lift coupling (A).
6. Remove the spring (B).
7. Remove the HCF tray lift gear - 40 tooth (C).
