Lexmark W840 - 500-Sheet Drawer (2 TM)-Media Tray End Guide Removal

4-14 Options Service Manual
4024-XXX
2X 500-sheet drawer (2TM)—media tray end guide removal
1. Remove the media tray.
2. Remove the media tray guides. See “2X 500-sheet drawer (2TM)—media tray guides removal” on
page 4-12.

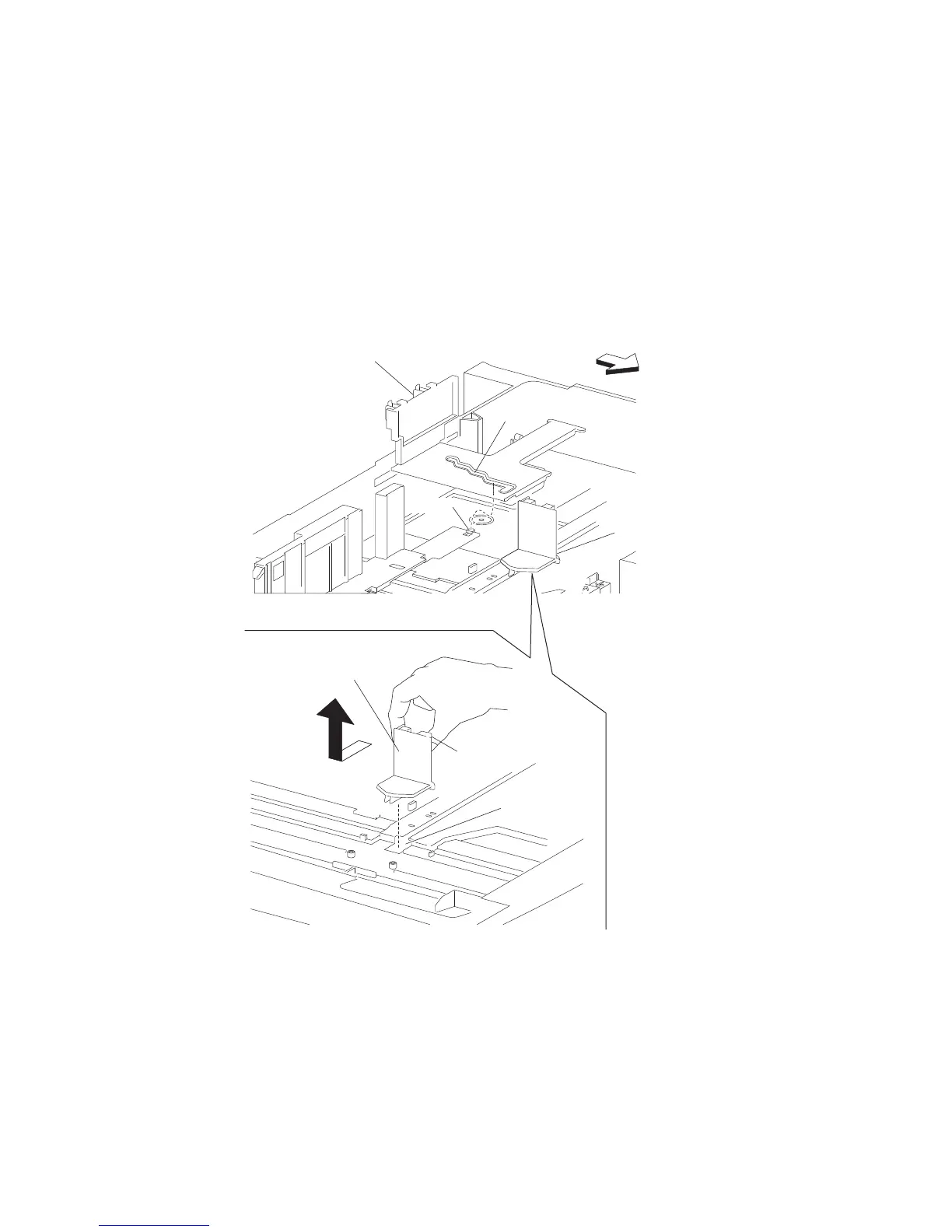

3. Remove the media side guide actuator (A).
4. Turn the media tray upside down, and remove the two hooks securing the actuator link (B) to the media
tray.
5. Release the screw and hook on the media end size actuator (C) from the hole in the actuator link (B) by
moving the link in the direction of the arrow.
6. Remove the media end guide actuator (C).
A
Front
Lock lever
Square hole
Hole
Hook
D
D
