Lexmark W840 - 2000-Sheet Dual Input (TTM)-Switch (TTM Media Size) Removal

4-84 Options Service Manual
4024-XXX
2000-sheet dual input (TTM)—switch (TTM media size) removal
Note: This removal procedure may be applied to tray 3 and tray 4.
1. Remove the tray 3 assembly “2000-sheet dual input (TTM)—tray 3 assembly removal” on page 4-56
or tray 4 assembly “2000-sheet dual input (TTM)—tray 4 assembly removal” on page 4-55.

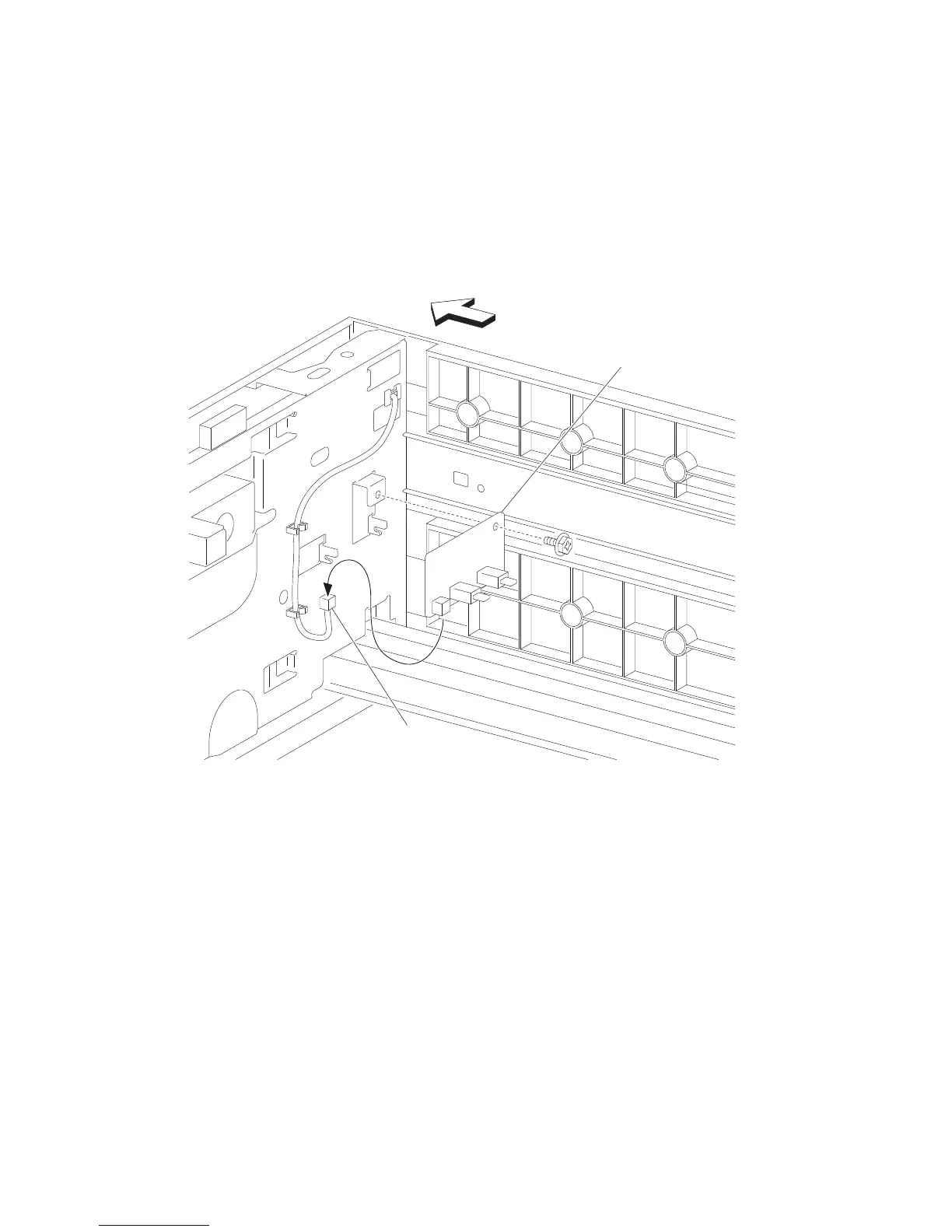

2. Disconnect the connector from the switch (TTM media size) (A).
3. Remove one screw securing the switch (TTM media size) (A).
4. Remove the switch (TTM media size) (A).
Rear
Connector
A
